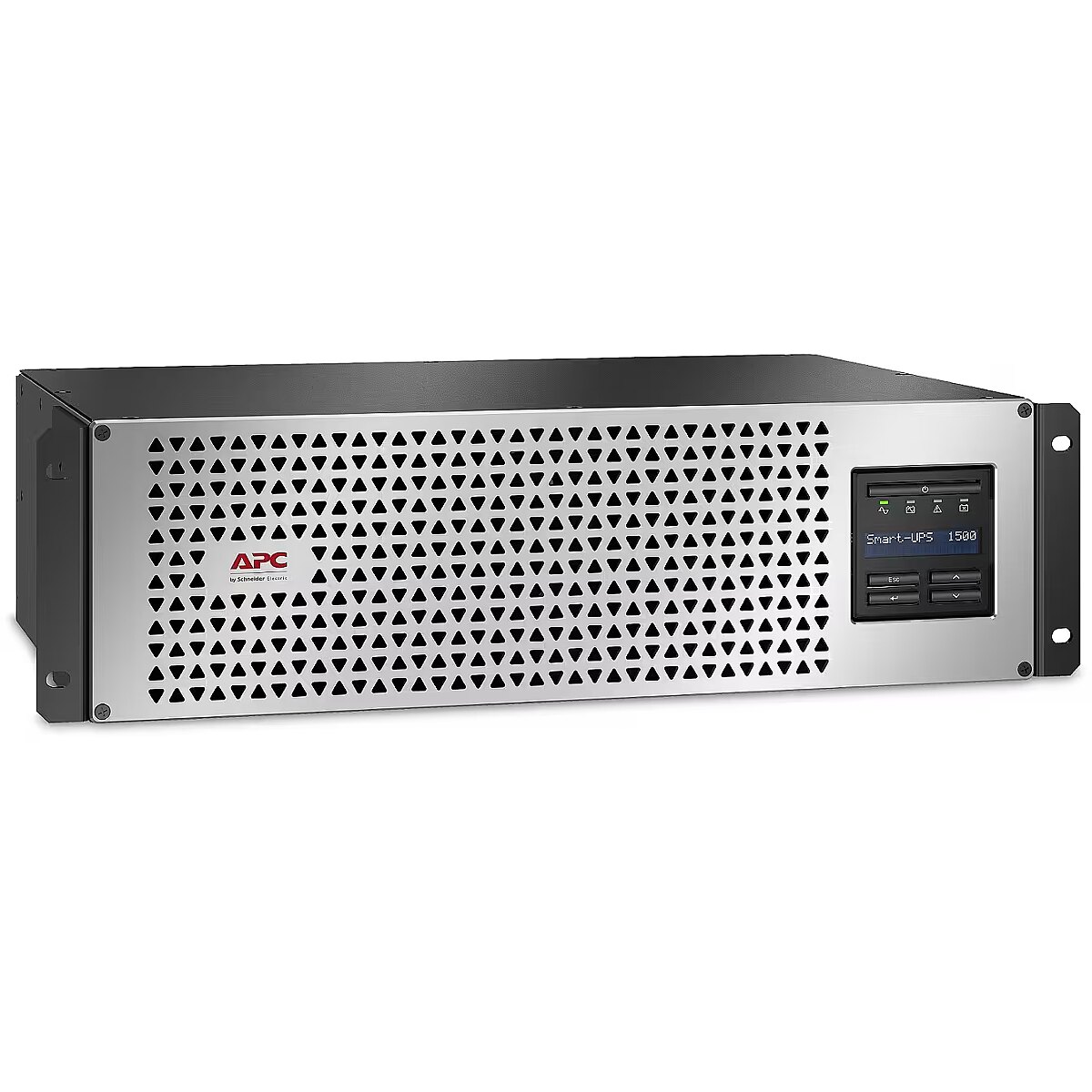

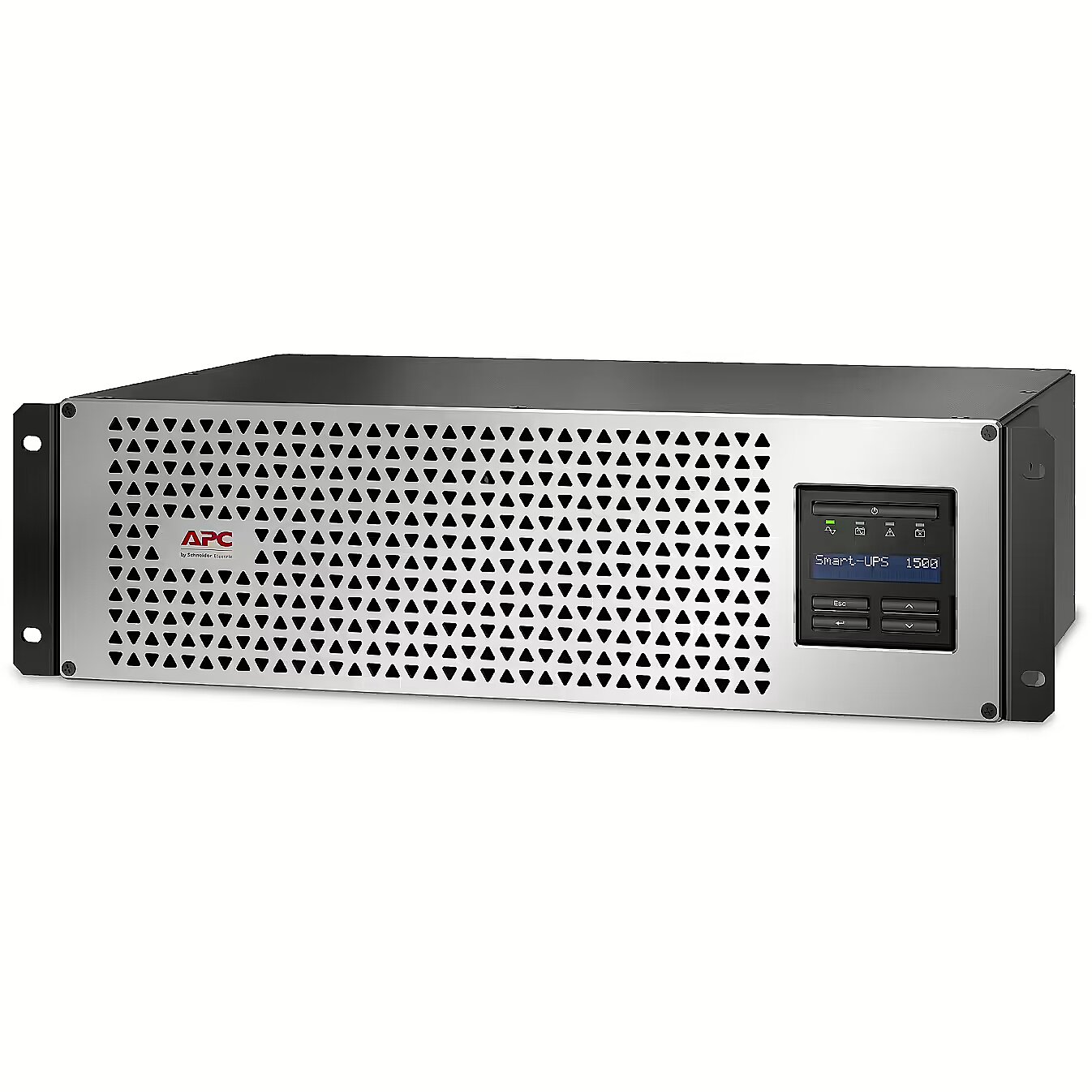

APC Smart-UPS SMTL1500RMI3UC 1500VA, 1350W, IEC, 3U

ARTIKEL1 - APC SMART-UPS LITHIUM ION SHORT
ARTIKEL2 - DEPTH 1500VA 230V WITH SMARTCONN
Battery - Battery life (max) - 10 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Lithium-Ion (Li-Ion)
Battery life (max), years - 8 - 10
Battery recharge time, h - 3
Battery technology - Lithium-Ion
Battery type - Lithium Ion
Brand - APC
BrandPartCode - SMTL1500RMI3UC
Breite - 0.45
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Certification - CE, CSA, EAC, GS Mark, IEC 62040-1-1, IEC 62040-1-2, IEC 62040-2, RCM, UL 1973
REACH
Certificates - Compliance certificates - RoHS
Certification - CE, CSA, EAC, GS Mark, IEC 62040-1-1, IEC 62040-1-2, IEC 62040-2, RCM, UL 1973
Depth, mm - 302
Description - APC SMART-UPS LITHIUM ION, SHORT DEPTH 1500VA, 230V WITH SMARTCONNECT
Design - Display type - LCD
Design - Form factor - Rackmount
Design - International Protection (IP) code - IP20
Design - Product colour - Grey
Design - Rack capacity - 3U
EAN - 731304402619
EANCode - 0731304402619
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 302 V
Features - Input operation voltage (min) - 151 V
Features - Noise level - 45 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 1350 W
Features - Output power capacity - 1.5 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 5%
Features - Response time - 6 ms
Features - Surge energy rating - 680 J
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Frequency range, Hz - 50/60
Gewicht - 22.21
Gross Weight Kg - 22,68
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 0731304402619
GTIN - 731304402619
Height - 270.000000
Height, mm - 131
HERSTELLER - APC
Hoehe - 0.28
HSTNUMMER - SMTL1500RMI3UC
Input connection - IEC-320 C14
Input frequency, Hz - 50/60
Input voltage, V - 160 - 286
IP classification - IP20
Laenge - 0.59
Length - 570.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 12 pc(s)
Logistics data - Total carbon footprint (kg of CO2e) - 2052.73
LongDesc - Stay always online and prevent data lossAs soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the free APC PowerChute software, you can even have critical IT hardware shut down automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware.SafetyIn addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.Lithium-IonThe APC SMTL1500RMI3UC uses a Li-Ion (LiFePO4) battery, which provides unique advantages:- Longer lifespan. A Li-Ion battery can last up to 10 years and therefore makes the UPS truly maintenance-free.- Can handle more than 10x as many charge cycles as a lead acid battery (VRLA).- Smaller and lighter. Li-Ion batteries are smaller and weigh approximately 65% ​​less than VRLA batteries, which saves space and simplifies installation.- Better battery performance than VRLA at ambient temperatures above 25° C. With VRLA, this is at the expense of battery life (>5% decrease per degree increase).- 5-year factory warranty. Standard long warranty on the UPS including the battery.- Eliminate the costs of interim battery replacement; labor, material, shipping and recycling.- Lower TCO: The above advantages reduce the total costs over the entire life of the UPS by up to 47% (compared to a UPS with VRLA battery.)- Faster charging means full protection sooner.- Perfect for tight spaces, due to the limited depth of the UPS it fits easily in wall racks and small cabinets.SmartConnectOut-of-box remote UPS monitoring, free for a 6-month trial period. Using the SmartConnect Ethernet port, you can easily connect the Smart-UPS to your network and monitor it remotely via the secure APC SmartConnect cloud-based web portal*. In addition, the UPS can always be monitored via this port via EcoStruxure IT Expert (SFTWES1-DIGI).* Extend access to SmartConnect via the following licenses:1 year Standard Plan: ERWPMON1-1Y-DIGI3 year Standard Plan: ERWPMON1-3Y-DIGI1 year Advanced Plan: ERWPLUS1-1Y-DIGI3 year Advanced Plan: ERWPLUS1-3Y-DIGINetwork Management CardIf you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can be easily managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software belonging to the network card, the shutdown moment and the order in which this happens can even be differentiated.Ease of useBy means of physical buttons and an LCD screen it is possible to set and read the basic functionalities.Battery lifeYou can easily read the expected battery life in the runtime graph, which you can find between the product images. This way you can easily see how long the UPS will supply emergency power at a certain load.MountingThe UPS is equipped with mounting brackets with which you can easily mount it to the front posts in a 19 inch rack, wall or patch cabinet due to its limited depth. By means of the optional SMTL3USF stabilization feet, the UPS can also be placed vertically, i.e. upright.This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive 3U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 6x IEC 320 C13 outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
LongProductName - APC Smart-UPS Li-ion SMTL1500RMI3UC - 6x C13, Short Depth, Rackmount 3U, SmartConnect, 1500VA
LongSummaryDescription - APC Smart-UPS Li-ion SMTL1500RMI3UC - 6x C13, Short Depth, Rackmount 3U, SmartConnect, 1500VA. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 1350 W. AC outlet types: C13 coupler, AC outlets quantity: 6 AC outlet(s), USB port type: USB Type-A. Battery technology: Lithium-Ion (Li-Ion), Battery life (max): 10 year(s), Battery recharge time: 3 h. Form factor: Rackmount, Product colour: Grey, Rack capacity: 3U. Compliance certificates: RoHS, Certification: CE, CSA, EAC, GS Mark, IEC 62040-1-1, IEC 62040-1-2, IEC 62040-2, RCM, UL 1973 REACH
Manufacturer - APC
Manufacturer Code - SMTL1500RMI3UC
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SMTL1500RMI3UC
Maximum power, W - 1.35k
Noise level, dB - 45
Nominal input voltage, V - 160 - 286
Nominal output voltage, V - 230
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 7500 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 35 °C

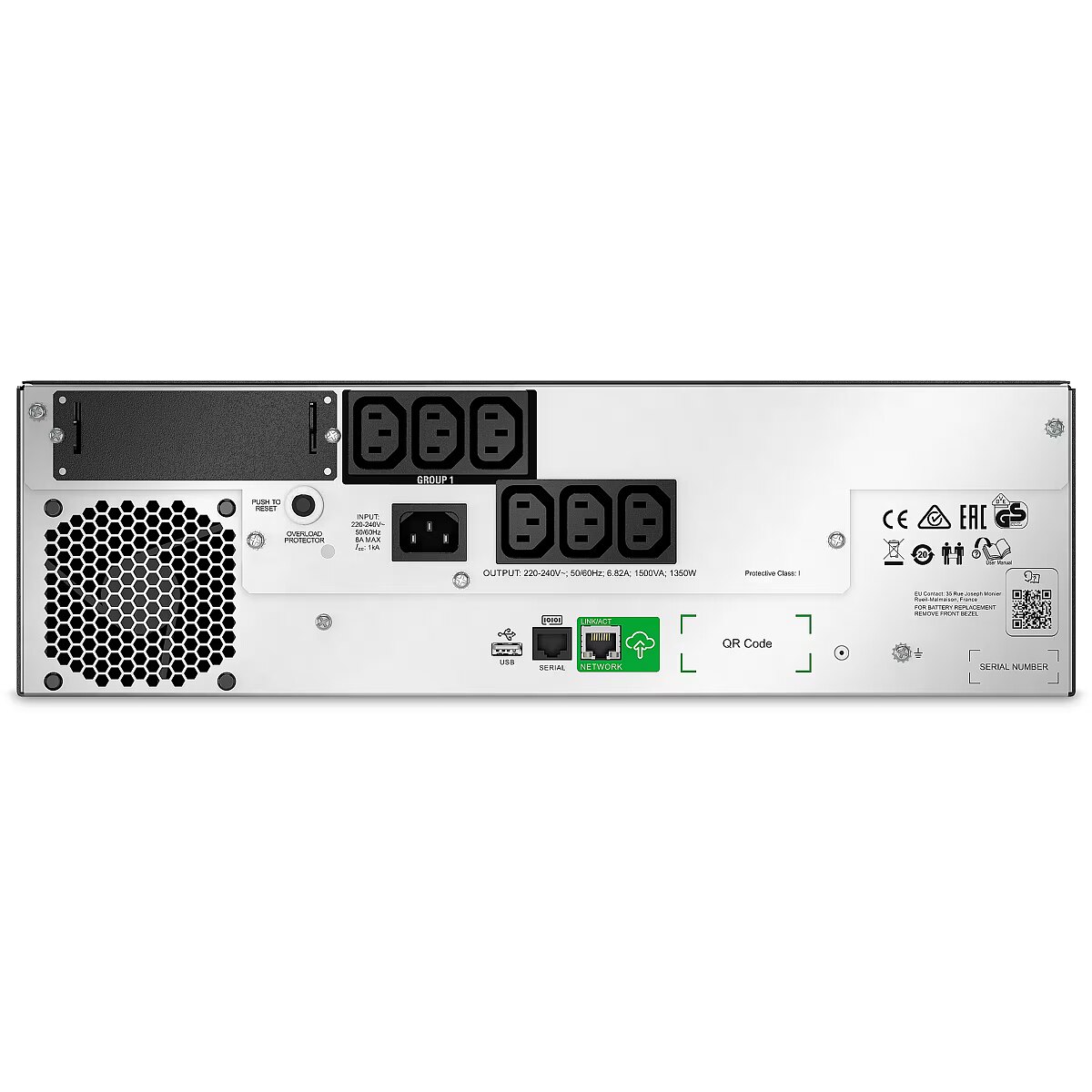

Output interface - 6 x IEC 320 C13
Output power, W - 1350
Output power capacity (VA) - 1440
Packaging data - Package depth - 448 mm
Packaging data - Package height - 279 mm
Packaging data - Package weight - 22.7 kg
Packaging data - Package width - 584 mm
PeriodofWarranty - 5 Y
Ports & interfaces - AC outlets quantity - 6 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-A
ProductName - APC Smart-UPS Li-ion SMTL1500RMI3UC - 6x C13, Short Depth, Rackmount 3U, SmartConnect, 1500VA
Rack height (units) - 3
Short description - APC Smart-UPS 1500 VA LCD RM mit SmartConnect (Li-Ion)
ShortSummaryDescription - APC Smart-UPS Li-ion SMTL1500RMI3UC - 6x C13, Short Depth, Rackmount 3U, SmartConnect, 1500VA, Line-Interactive, 1.5 kVA, 1350 W, Sine, 151 V, 302 V
Stck_Kart - 1
Stck_Pal - 12
Storage temperature range (T-T), °C - -10 - 40
Storno - Y
Surge energy rating, J - 680
Title - APC Smart-UPS Li-ion SMTL1500RMI3UC - 6x C13, Short Depth, Rackmount 3U, SmartConnect, 1500VA
UPS devices and accessories - Yes
URL - https://www.apc.com/
WarrantyInfo - 5 year repair or replace
Weight - 20.000000
Weight & dimensions - Depth - 302 mm
Weight & dimensions - Height - 131 mm
Weight & dimensions - Weight - 19.5 kg
Weight & dimensions - Width - 438 mm
Weight, kg - 19.5
Width - 440.000000
Width, mm - 438
