ID: 518978
Tootekood: SCL500RMI1UC
Laos 3 üksused
Garantii: 3 aastat

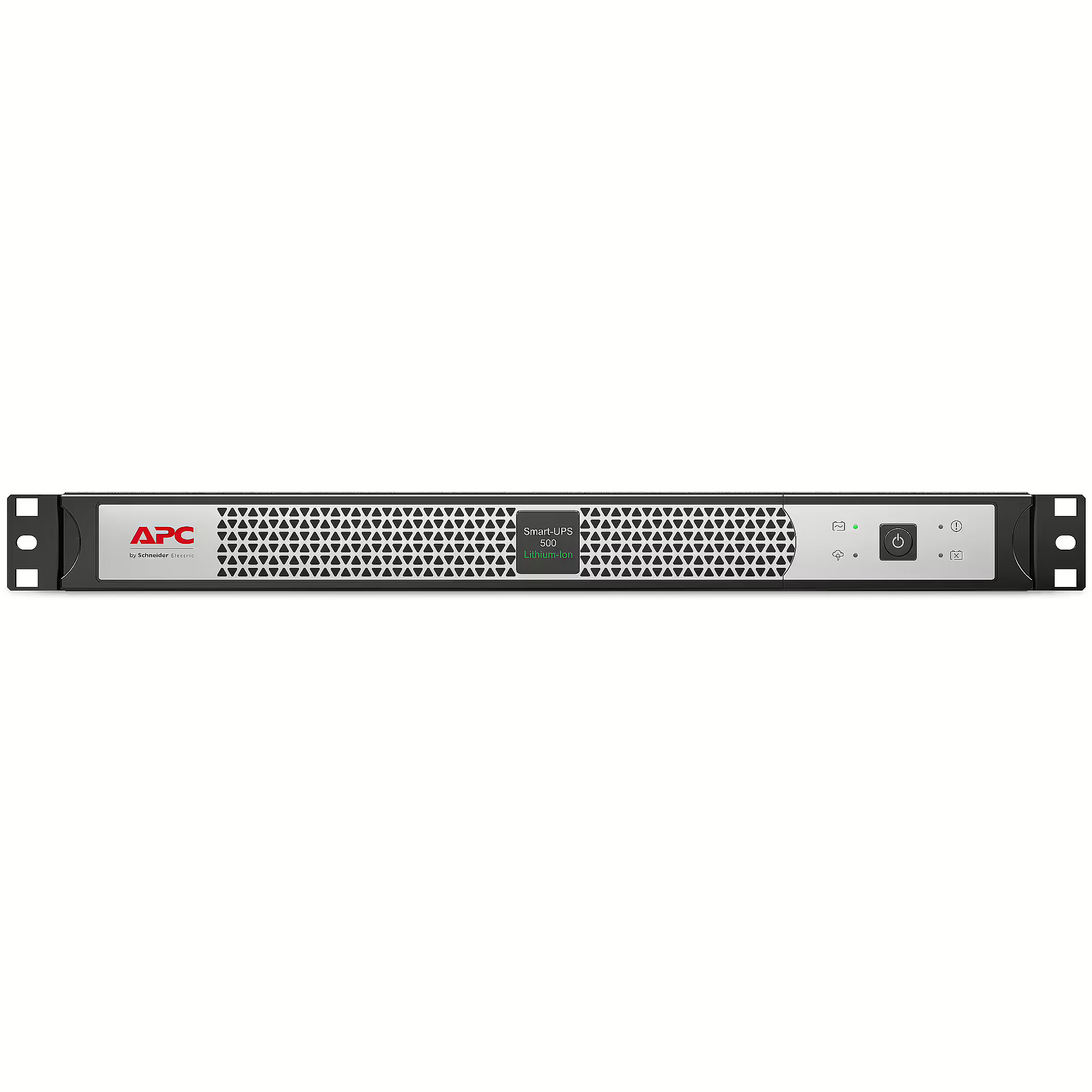

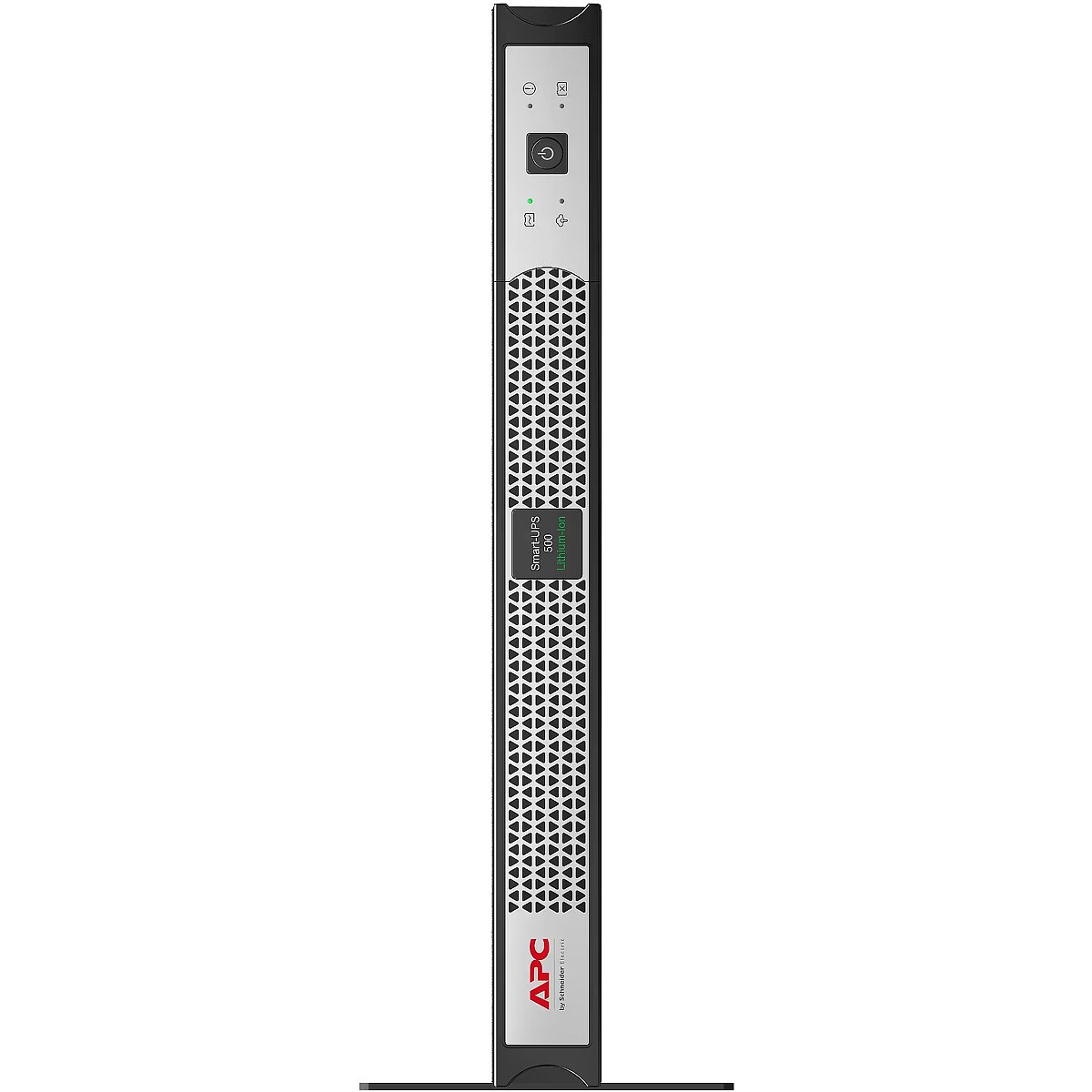

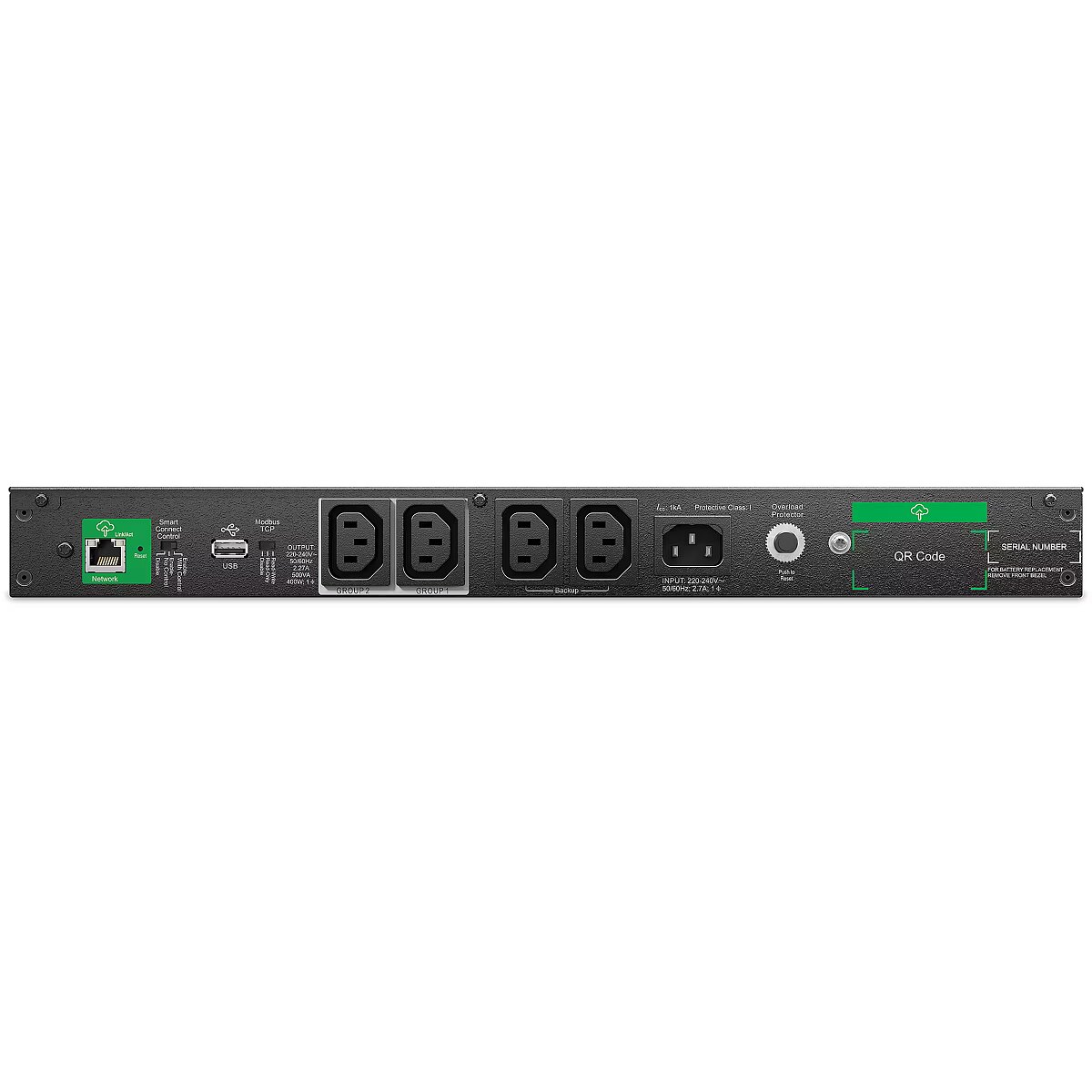

APC Smart-UPS SCL500RMI1UC 500VA, 400W, IEC, 1U
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
Peamised tooteparameetrid Kõik parameetrid
- Aku võimsus (VA): 500 VA
- Võimsus (W): 400 W
Näidiku omadused
Näita
: Nav
Põhiteave
Aku tüüp
: Lithium-Ion (Li-Ion)
Aku võimsus (VA)
500 VA
Patareide suutlikkus (mahtuvus) on UPS pikaajalise töötamise näitaja, lahtiühendatuna vooluallikast. See parameeter vastab UPS seadmele, mil on täielikult täislaaditud akumulaator. Juhul, kui soovite välja selgitada, kui suurt mahtuvust vajab teie arvutitehnika, külastage www.apc.ru, kust võite leida võimsuse määramise konfiguraatori.
Laadimisaeg (tundi)
: 3h
Võimsus (W)
: 400 W
Sadamad ja seadmed
Pesade arv (kokku)
: 4
Pistikupesa tüüp
: IEC320
Pistikupesade arv (aku varukoopia)
: 4
RJ-45
: 1
USB
: 1
Täpsem spetsifikatsioon
Accessories included - Instrukcja instalacji, Szyny nośne do montażu w stojaku, Kabel USB
Active power - 400 W
Apparent power - 500 VA
ARTIKEL1 - APC SMART-UPS C LI-ION 500VA
ARTIKEL2 - SHORT DEPTH 230V SMARTCONNECT
Battery - Battery technology - Lithium-Ion (Li-Ion)
Battery capacity - 30 VAh
Battery life (max), years - 8 - 10
Battery recharge time, h - 3
Battery type - Lithium Ion
Brand - APC
BrandPartCode - SCL500RMI1UC
Breite - 0.35
Category - Uninterruptible Power Supplies (UPSs)
Certification - CSA C22.2 NO. 107.3, cULus, FCC Part 15 Class A, NOM, UL 1778, UL 1973
Charging time - 3 h
Chassis type - Rack
Color - Black
Connections - RJ-45 Serial
Connections - SmartSlot
Connections - USB
Depth, mm - 232
Description - APC SMART-UPS C LITHIUM ION, SHORT DEPTH 500VA, 230V WITH SMARTCONNECT
Description - Inteligentna i wydajna ochrona zasilania sieciowego od poziomu podstawowego do skalowalnego środowiska wykonawczego. Idealny UPS do serwerów, punktów sprzedaży, routerów, przełączników, koncentratorów i innych.
Design - Form factor - Rackmount/Tower
Design - Product colour - Grey
Design - Rack capacity - 1U
dimension depth - 340 mm
dimension height - 580 mm
Dimensions - 4,4 x 43,2 x 23,2 cm
dimension weight - 6010 g
dimension width - 155 mm
ean - 731304402558
EANCode - 0731304402558
Environment requirements - Temperatura robocza: 0 - 40 ° C Wilgotność względna podczas pracy: 10 - 90 (bez kondensacji)% Wysokość robocza: 0-1968.3 metrów Temperatura przechowywania: -10 - 40 ° C Wilgotność względna podczas przechowywania: 10 - 90 (bez kondensacji)% Wysokość przechowywania: 0-14763,6 metrów Hałas słyszalny w odległości 1 metra od powierzchni urządzenia: 45,0dBA
Features - Input frequency - 47/63 Hz
Features - Input operation voltage (max) - 253 V
Features - Input operation voltage (min) - 208 V
Features - Output operation voltage (max) - 230 V
Features - Output operation voltage (min) - 230 V
Features - Output power - 400 W
Features - Output power capacity - 0.5 kVA
Features - Surge energy rating - 510 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Pure sine
Filters / protection - Surge
Form factor - Rack
Frequency range, Hz - 50/60
Gewicht - 5.95
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 0731304402558
GTIN - 731304402558
guarantee - 60
guarantee_type - external
Height - 340.000000
Height, mm - 44
HERSTELLER - APC
Hoehe - 0.17
HSTNUMMER - SCL500RMI1UC
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 1 x USB 2.0
Input connection - NEMA 5-15P
Input frequency, Hz - 47 - 63
Input power ports - IEC-C14
Interface - RJ45
Interface - USB
Laenge - 0.59
Length - 160.000000
Logistics data - Harmonized System (HS) code - 85078000
LongSummaryDescription - APC SMART-UPS C LI-ION 500VA SHORT DEPTH 230V SMARTCONNECT. UPS topology: Line-Interactive, Output power capacity: 0.5 kVA, Output power: 400 W. AC outlet types: C13 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Lithium-Ion (Li-Ion). Form factor: Rackmount/Tower, Product colour: Grey, Rack capacity: 1U. Width: 432 mm, Depth: 232 mm, Height: 44 mm
Manufacturer - APC
ManufacturerPartNumber - SCL500RMI1UC
Maximum power, W - 10
name - Smart UPS SCL500RMI1UC C 500VA/400W 1U SmartConn
No. of batteries - 1
Noise level, dB - 45
Nominal input voltage, V - 208 - 253
Nominal output voltage, V - 120
Number of phases input - 1 (230V)
Operating relative humidity range, % - 10 - 90
Operating temperature range (T-T), °C - 0-40
Other features -
Output interface - 4 x NEMA 5-15R
Output power, W - 400
Output power capacity (VA) - 500
Output power ports - 4 x IEC-C13
Packaging data - Rack mount kit - Yes
PeriodofWarranty - 5 Y
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
producer - APC
ProductName - SMART-UPS C LI-ION 500VA SHORT DEPTH 230V SMARTCONNECT
Rack height (units) - 1
ShortSummaryDescription - APC SMART-UPS C LI-ION 500VA SHORT DEPTH 230V SMARTCONNECT, Line-Interactive, 0.5 kVA, 400 W, Pure sine, 208 V, 253 V
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 15
Storage temperature range (T-T), °C - -10 - 40
Storno - Y
Surge energy rating, J - 680
Technical details - Sustainability certificates - Green Premium
Title - APC SMART-UPS C LI-ION 500VA SHORT DEPTH 230V SMARTCONNECT uninterruptible power supply (UPS) Line-Interactive 0.5 kVA 400 W 4 AC outlet(s)
Transfer time (max) - 10 ms
UPS Architecture - line-interactive
UPS devices and accessories - Yes
vendpn - SCL500RMI1UC
Weight - 4.1 kg
Weight - 5.860000
Weight & dimensions - Depth - 232 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 4.01 kg
Weight & dimensions - Width - 432 mm
Weight, g - 4060
Weight, kg - 4.18
Width - 590.000000
Width, mm - 432
