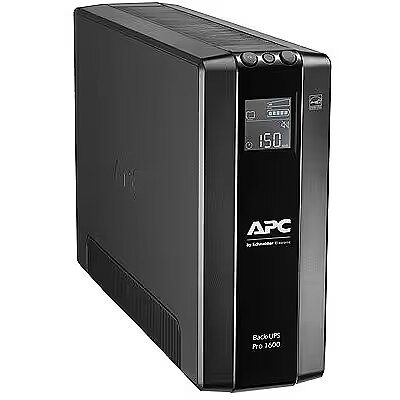

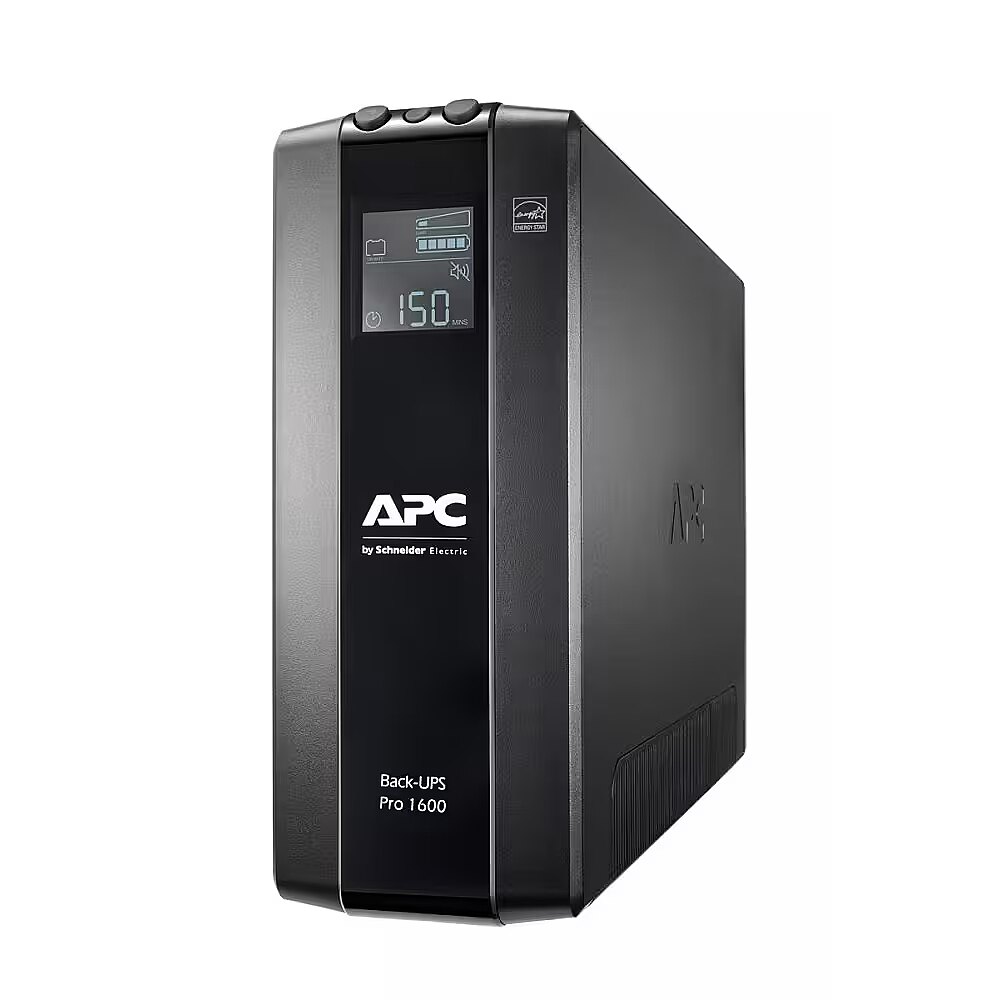

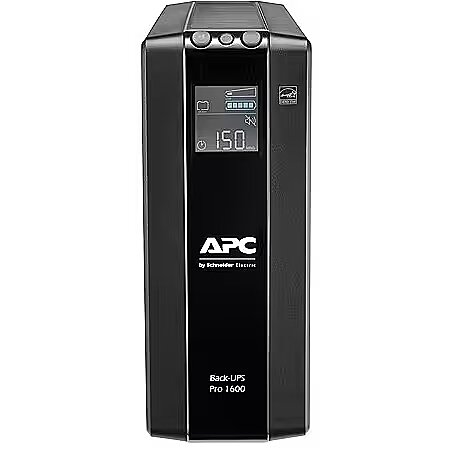

APC Back UPS Pro BR1600MI 1600VA, 960W, IEC

Accessories included -
Active power - 960 W
Alarm - -
Apparent power - 1600 VA
ARTIKEL1 - BACK UPS PRO BR 1600VA 8
ARTIKEL2 - OUTLETS AVR LCD INTERFACE BACK U
Battery - Automatic battery test - Yes
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 16 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
BatteryType - Lead-acid
Brand - APC
BrandPartCode - BR1600MI
Breite - 0.38
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Category_1 - Power
Category_2 - UPS
Charging time - 16 h
Chassis type - Tower
Color - Black
ControlPanel - Multi-function LCD status and control console
Depth - 382 mm
Description - Power supply BR1600MI UPS Back ProBR 1600VA 8xC13, AVR, LCD
Design - Cable length - 1.83 m
Design - Certification - A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI
Design - Cooling type - Passive
Design - Display type - LCD
Design - Form factor - Tower
Design - LED indicators - Yes
Design - Product colour - Black
dimension depth - 360 mm
dimension height - 500 mm
Dimensions - 100 x 250 x 382 mm
dimension weight - 13500 g
dimension width - 250 mm
ean - 731304346913
EAN - 0731304346913
EANCode - 0731304346913
Eans - 0731304346913
EAN_code - 0731304346913
Environment requirements - Working temperature: 0 - 40 ° C Relative humidity during work: 095% Working height: 0-3000 meters Storage temperature: -15 - 45 ° C Relative humidity during storage: 0-95% Storage height: 0-15000 meters Noise heard at a distance of 1 meter from the surface of the device: 45.0dBA
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm, Overload alarm
Features - Automatic Voltage Regulation (AVR) - Yes
Features - ECO mode - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 294 V
Features - Input operation voltage (min) - 176 V
Features - Maximum current - 10 A
Features - Noise level - 45 dB
Features - Output frequency - 50/60 Hz
Features - Output power - 960 W
Features - Output power capacity - 1.6 kVA
Features - Surge energy rating - 509 J
Features - Surge protection - Yes
Features - Surge protection features - Network
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Filters / protection - Overload
FormFactor - Tower
Gewicht - 13.17
GrossWeight - 11.650 kg
Gross Weight Kg - 11,65
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304346913
GTIN - 0731304346913
guarantee - 24
guarantee_type - external
Height - 250 mm
HERSTELLER - APC
Hoehe - 0.25
HSTNUMMER - BR1600MI
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x RJ-11
I/O connectors - 2 x RJ-45 LAN
InputConnections - -
InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input power ports - IEC-C14
InputVoltage - 176-294 V
InterfacePorts - USB
Laenge - 0.51
Logistics data - Harmonized System (HS) code - 85078000
LongDesc -
LongProductName - Back UPS Pro BR 1600VA, 8 Outlets, AVR, LCD Interface
LongSummaryDescription - APC BR1600MI. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 960 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 5 year(s), Battery recharge time: 16 h. Form factor: Tower, Product colour: Black, Cable length: 1.83 m. Width: 250 mm, Depth: 382 mm, Height: 100 mm
Manufacturer - APC
Manufacturer Code - BR1600MI
Manufacturer Name - APC by Schneider Electric
Manufacturer_code - BR1600MI
MANUFDATASHEET - https://www.apc.com/shop/be/en/products/APC-Back-UPS-Pro-1600VA-960W-Tower-230V-8x-IEC-C13-outlets-AVR-LCD-User-Replaceable-Battery/P-BR1600MI
MPN - BR1600MI
Name - APC Back-UPS Pro 1600VA BR1600MI
Name - APC Back Pro BR1600MI
Name - APC Back UPS Pro BR1600 Tower 1600VA 960W
name - Power supply BR1600MI UPS Back ProBR 1600VA 8xC13, AVR, LCD
No. of batteries - 2
Number of phases input - 1 (230V)
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
OutputConnections -

(6) IEC 60320 C13 (Battery Backup)

(2) IEC 60320 C13 (Surge Protection)

OutputFrequency - 50/60 Hz +/- 1 Hz Sync to mains

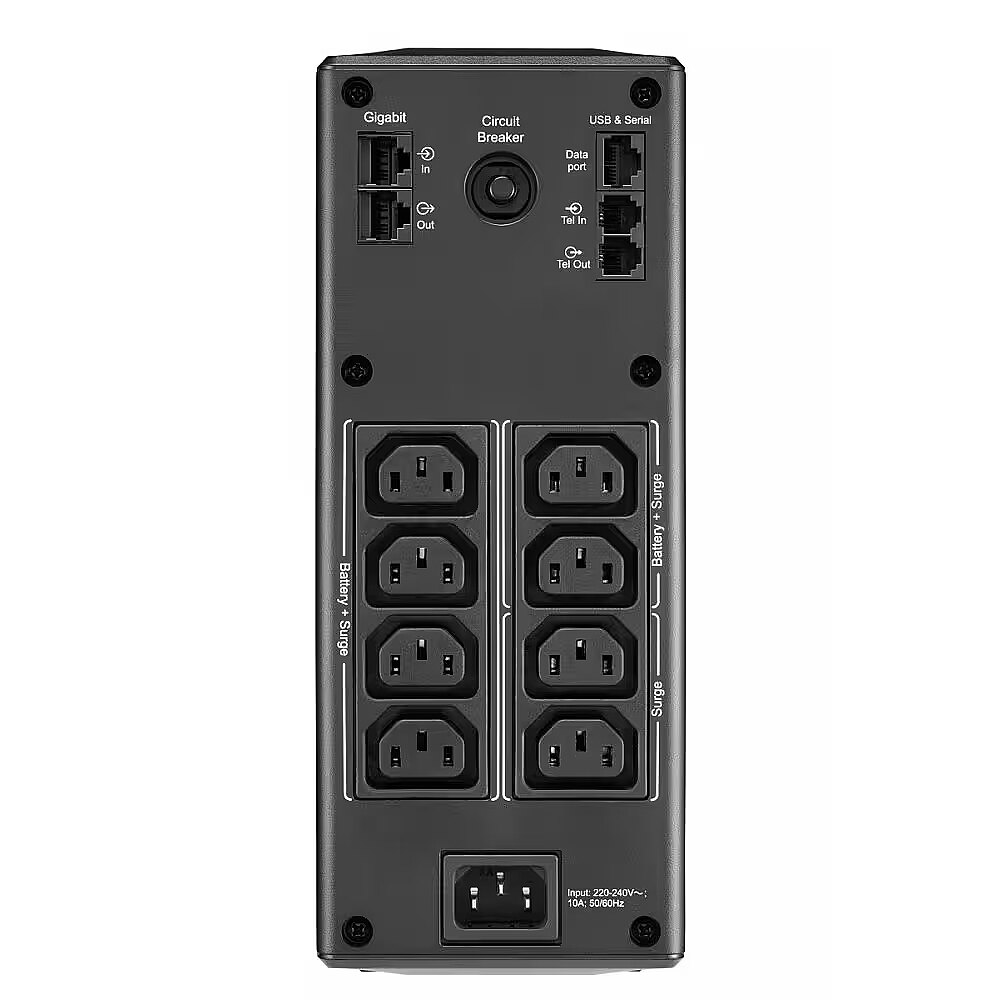

Output power ports - 8 x IEC-C13
OutputVoltage - -
PackageContents - -
Packaging data - Cables included - USB cable
Packaging data - Manual - Yes
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Cabling technology - 10/100/1000Base-T(X)
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
PowerVAW - 1600 VA
PowerW - 960 W
ProdDesc - Back UPS Pro BR 1600VA, 8 Outlets, AVR, LCD Interface
producer - APC
Producer - APC
ProducerCode - BR1600MI
ProductName - BR1600MI
ProductPicture - http://www.tdbaltic.ee/images/ds4/BR1600MI-01.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds4/BR1600MI-02.jpg
ProductPicture3 -
ProductPicture4 -
RechargeTime - 16 h
RJ45 - -
Runtime - 10.5/2.6
ShortDescription -
Short description - APC Back-UPS Pro BR 1600 VA BR1600MI
ShortSummaryDescription - APC BR1600MI, Line-Interactive, 1.6 kVA, 960 W, Sine, 176 V, 294 V
SmartSlot - -
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 24
Storno - Y
Title - APC BR1600MI uninterruptible power supply (UPS) Line-Interactive 1.6 kVA 960 W 8 AC outlet(s)
Topology - Line interactive
Transfer time (max) - 10 ms
UPS Architecture - line-interactive
URL - https://www.apc.com/shop/ye/en/products/Back-UPS-Pro-BR-1600VA-8-Outlets-AVR-LCD-Interface/P-BR1600MI
USB - Yes
vendpn - BR1600MI
Voltage - 12 V
Warranty - 2 years
WarrantyInfo - 2 years repair or replace, 3 years repair or replace for European Union countries
WaveformType - -
Weight - 10.9 kg
Weight - 10.900 kg
Weight - 12,45
Weight - 12.3
Weight & dimensions - Depth - 382 mm
Weight & dimensions - Height - 100 mm
Weight & dimensions - Package depth - 225 mm
Weight & dimensions - Package height - 330 mm
Weight & dimensions - Package weight - 11.7 kg
Weight & dimensions - Package width - 485 mm
Weight & dimensions - Weight - 10.9 kg
Weight & dimensions - Width - 250 mm
Width - 100 mm
