APC Back-UPS BK650EI 650VA, 400W, IEC

Accessories included - - CD with software
- Documentation on CD
- 2 x Detachable IEC C13 power cables to IEC C14, USB cable
Active power - 400 W
Alarm -

Alarm when on battery

distinctive low battery alarm

overload continuous tone alarm

Apparent power - 650 VA
ARTIKEL1 - BACK-UPS CS 650VA
ARTIKEL2 - 3 USV/ 1 UESS USB/SERIELL IN
Backup time (100% load) - 2.3 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 9 Ah
Battery - Battery capacity - 95 VAh
Battery - Battery life (max) - 6 year(s)
Battery - Battery recharge time - 8 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Battery voltage - 12 V
Battery - Typical backup time at full load - 4.7 min
Battery - Typical backup time at half load - 14.7 min
Battery recharge time, h - 8
BatteryType -

Maintenance-free sealed Lead-Acid battery with suspended electrolyte

leakproof

Brand - APC
BrandPartCode - BK650EI
Cable length, m - 2
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Category_1 - Power
Category_2 - UPS
Certification - A-tick, C-tick, CE, GOST, NEMKO
Charging time - 8 h
Chassis type - Tower
Color - Beige
Color - White
Connections - RJ-45
Connections - Serial (RS-232)
Connections - USB
Connectors - 1 x USB (Typ B)
Connectors - RJ-45

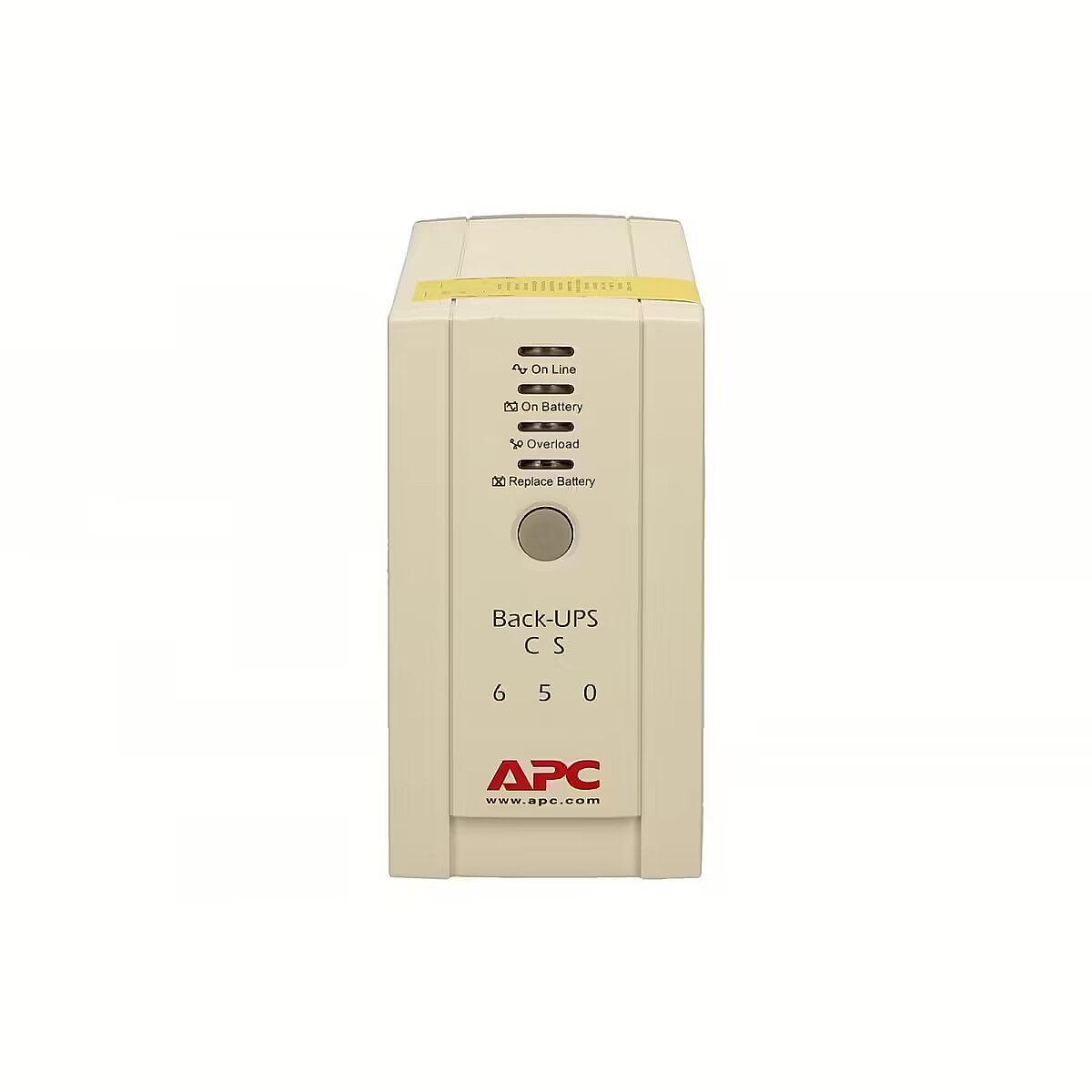

ControlPanel -

LED status display with On Line

On Battery

Replace Battery and Overload indicators

Data line protection - RJ45 Analog phone line for phone/fax/modem/DSL
Depth - 284.5 mm
Depth, mm - 284
Description - APC BACK-UPS 650VA 230V
Description - BK650EI
BACK-UPS CS 650VA USB/SERIAL 230V BK650EI
Design - Cable length - 2 m
Design - Certification - A-tick, C-tick, CE, GOST, NEMKO
Design - Form factor - Tower
Design - LED indicators - Yes
Design - Product colour - Beige
dimension depth - 420 mm
dimension height - 240 mm
Dimensions - - Maximum Height: 165.00 mm
- Maximum width: 91.00 mm
- Maximum Depth: 284.00 mm
dimension weight - 6950 g
dimension width - 185 mm
ean - 731304219781
EAN - 0731304219781
EANCode - 0731304219781
Eans - 731304219781
EAN_code - 0731304219781
Environment requirements -
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Low battery alarm, Overload alarm
Features - Efficiency - 98.9%
Features - Hold time (max) - 10 ms
Features - Hold time (min) - 6 ms
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 286 V
Features - Input operation voltage (min) - 160 V
Features - Noise level - 45 dB
Features - Output frequency regulation - 47 - 63 Hz
Features - Output power - 400 W
Features - Output power capacity - 0.65 kVA
Features - Surge energy rating - 310 J
Features - Surge protection - Yes
Features - Surge protection features - Digital Subscriber Line (DSL), Fax, Modem, Telephone
Features - UPS topology - Standby (Offline)
Features - Waveform - Sine
Filters / protection - Circuit
FormFactor - Tower
Form factor - Tower
Frequency range, Hz - 47 - 63
GrossWeight - 6.900 kg
Gross Weight Kg - 7
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304219781
GTIN - 0731304219781
GTIN - 9789792245356
guarantee - 24
guarantee_type - external
Height - 165.1 mm
Height - 237.000000
Height, mm - 165
HERSTELLER - APC
Hold-up time (maks) - 8 ms
HSTNUMMER - BK650EI
Input connection - IEC-320-C14
InputConnections - IEC-320 C14
Input current, A - 7
InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C14
InputVoltage - -
Input voltage, V - 180 - 266
InterfacePorts - -
Length - 189.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per master (outer) case - 1 pc(s)
Logistics data - Products per pallet - 48 pc(s)
LongDesc - Security through emergency powerAn APC Back-UPS has a built-in battery that ensures that all connected equipment, such as a NAS, router, modem and media box, continues to work if the power goes out. In addition, this APC emergency power supply can also automatically shut down a NAS or PC in time via the USB connection. Useful when the APC ups is almost empty. This prevents downtime, damage to equipment, and loss of data.SafetyIn addition, this safe APC Back-UPS protects valuable equipment against peak voltage caused by lightning strikes, for example.InsuranceDespite the high risk of lightning strikes and surges, APC has full confidence in its products and offers this APC Back-UPS:- Equipment protection policy of 100,000 eurosExtend the lifespanThe internal battery cartridge (RBC17) can be replaced easily, safely and independently by the user. This way you can easily and cheaply extend the lifespan of the APC Back-UPS BK650EI.Warranty extensionThe factory warranty of the BK650EI is 2 years and you can upgrade to 5 years with the APC service pack (WBEXTWAR3YR-SP-01A).Green PremiumThis label represents Schneider Electric's commitment to delivering products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products.Green Premium:- Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. The energy efficiency of this product is at least 10% higher than the market average.- Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/- Commits to minimal use of hazardous substances within and beyond regulatory compliance (RoHS/REACh)The re-invention of the most relied upon desktop UPS in history: the Back-UPS! The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.
LongDesc - The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.
LongProductName - APC Back-UPS BK650EI - 650VA, 4x C13 output, USB
LongSummaryDescription - APC Back-UPS BK650EI - 650VA, 4x C13 output, USB. UPS topology: Standby (Offline), Output power capacity: 0.65 kVA, Output power: 400 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery capacity: 95 VAh. Form factor: Tower, Product colour: Beige, Cable length: 2 m. Width: 91 mm, Depth: 284 mm, Height: 165 mm
Manufacturer - APC
Manufacturer Code - BK650EI
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - BK650EI
Manufacturer_code - BK650EI
MANUFDATASHEET - http://www.apc.com/resource/include/techspec_index.cfm?base_sku=BK650EI
Maximum power, W - 400
MPN - BK650EI
Name - APC Back-UPS CS 650VA black650EI ++
Name - APC Back-UPS Tower BK650EI 650VA 400W
Name - APC Back BK650EI
name - BACK-UPS CS 650VA USB/SERIAL 230V BK650EI
Noise level, dB - 45
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - - Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: LeakProof
- Replacement Battery: RBC17- RBC count: 1
- Runtime Chart: Back-UPS CS
- Front panel LED status display with On Line: On Battery: Replace Battery and Overload indicators
- Audible Alarm: Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm
- Nominal Input Voltage: 230V
- Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
- The maximum power that can be configured: 650 VA
- The maximum power that can be configured: 400 watts
Other features - Filtering - Yes
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
Other features - Packaging content - Detachable IEC C13 to IEC C14 power cords

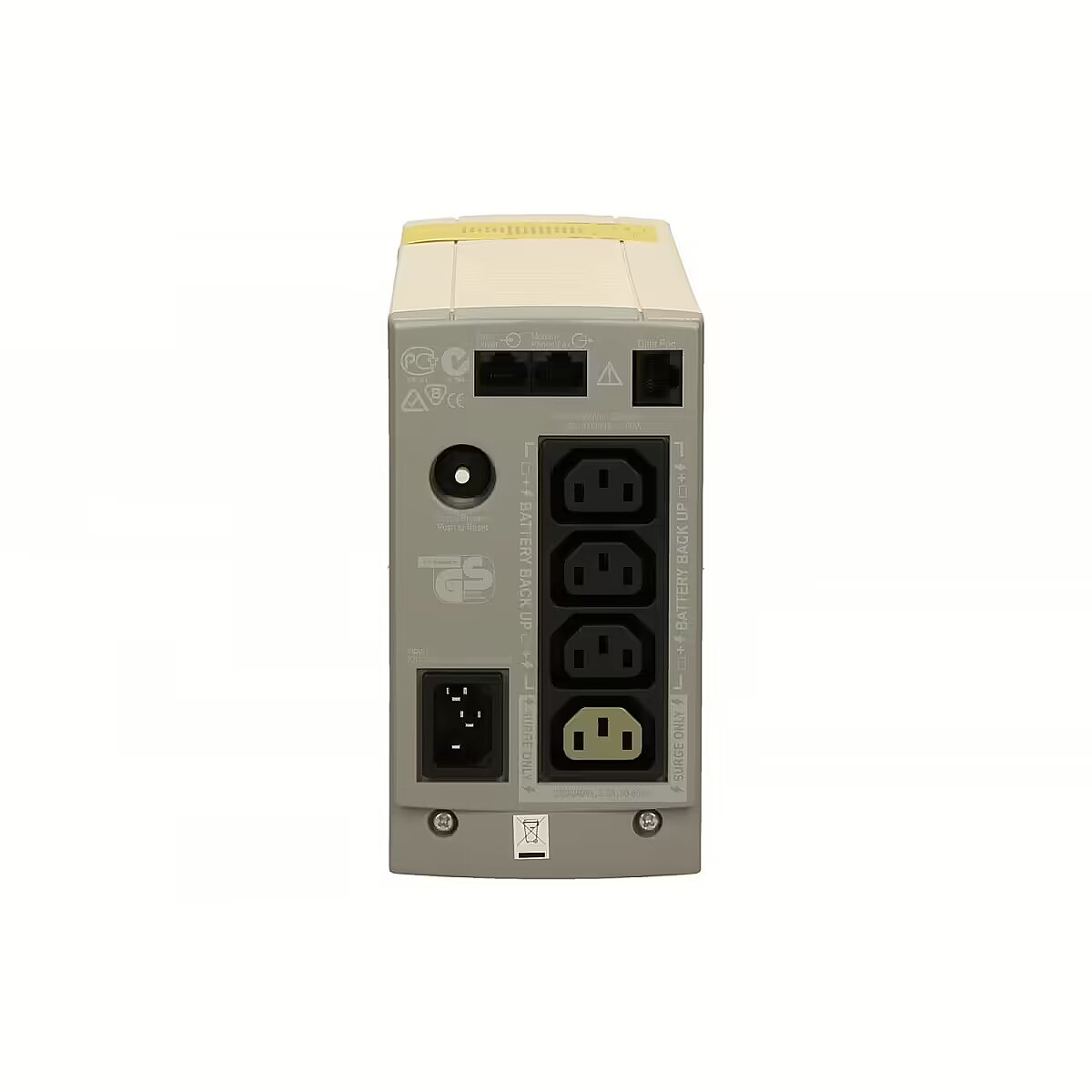

OutputConnections -

(1) IEC 320 C13 (Surge Protection)

(3) IEC 320 C13 (Battery Backup)

(2) IEC Jumpers (Surge Protection)

OutputFrequency - -
Output interface - 1 x IEC 320 C13 (Surge Protection), 3 x IEC 320 C13 (Battery Backup), 2 x IEC Jumpers (Battery Backup)
Output power, W - 400
Output power capacity (VA) - 650
Output power ports - 4 x IEC-C13
OutputVoltage - 230 V
PackageContents -

CD with software

Documentation CD

Qty 2 - Detachable IEC C13 to IEC C14 power cords

USB cable

Packaging data - Bundled software - PowerChute Personal Edition
Packaging data - Cables included - USB cable
Packaging data - Quick installation guide - Yes
Packaging data - Software CD - Yes
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - USB port - Yes
PowerVAW - 650 VA
PowerW - 400 W
ProdDesc - APC Back-UPS 650EI/650VA OffLine
producer - APC
Producer - APC
ProducerCode - BK650EI
ProductName - APC Back-UPS BK650EI - 650VA, 4x C13 output, USB
ProductPicture - http://www.tdbaltic.ee/images/ds/BK650EI.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
RechargeTime - 8 h
RJ45 - -
Runtime - 5 min (full load) / 15 min (half load)
Runtime - 11.4/2.4
ShortDescription -
Short description - APC Back-UPS CS 650 VA BK650EI
ShortSummaryDescription - APC Back-UPS BK650EI - 650VA, 4x C13 output, USB, Standby (Offline), 0.65 kVA, 400 W, Sine, 160 V, 286 V
SmartSlot - -
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 72
Storage temperature range (T-T), °C - 0 - 40
Storno - Y
Surge energy rating, J - 310
Technical details - Sustainability certificates - ENERGY STAR, Green Premium, RoHS
Technical_details - The re-invention of the most relied upon desktop UPS in history: the Back-UPS! The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management Featuress and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These Featuress along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems. Device Type Standalone UPS Power Rating 650 VA / 400 Watt Input Voltage 196-280 V Buffering Time Full Load: 2.4 minute(s) Half Load: 11.4 minute(s) Ports / Interfaces serial: 1x USB: 1x Outputs Type 1 3x IEC 320 (C13) connected to Battery Yes Type 2 1x IEC 320 (C13) connected to Battery No Protection Line Protection: 1x RJ-11/RJ-45 Alert Messages optical: LED-Status-Anzeige von operating, Batterieoperating, changing the battery and overload Operating Temperature Storage Temperature -15 - 45 °C Output V 230 VAC Operating via Battery: 230 VAC Product dimensions 90x170x280 mm Weight 6.5 kg
Title - APC Back-UPS BK650EI - 650VA, 4x C13 output, USB
Topology - Offline
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/products/family/index.cfm?id=17&tab=features#anchor1
USB - Yes
vendpn - BK650EI
Warranty - 2 years
WarrantyInfo - Standard warranty - 2 years repair or replace
WaveformType - -
Weight - 6.03 kg
Weight - 6.030 Kg
Weight - 6.86
Weight - 7,31
Weight - 7.000000
Weight & dimensions - Depth - 284 mm
Weight & dimensions - Height - 165 mm
Weight & dimensions - Package depth - 415 mm
Weight & dimensions - Package height - 494 mm
Weight & dimensions - Package weight - 7.31 kg
Weight & dimensions - Package width - 185 mm
Weight & dimensions - Weight - 6.03 kg
Weight & dimensions - Width - 91 mm
Weight, kg - 6.03
Width - 91.4 mm
Width - 416.000000
Width, mm - 91
