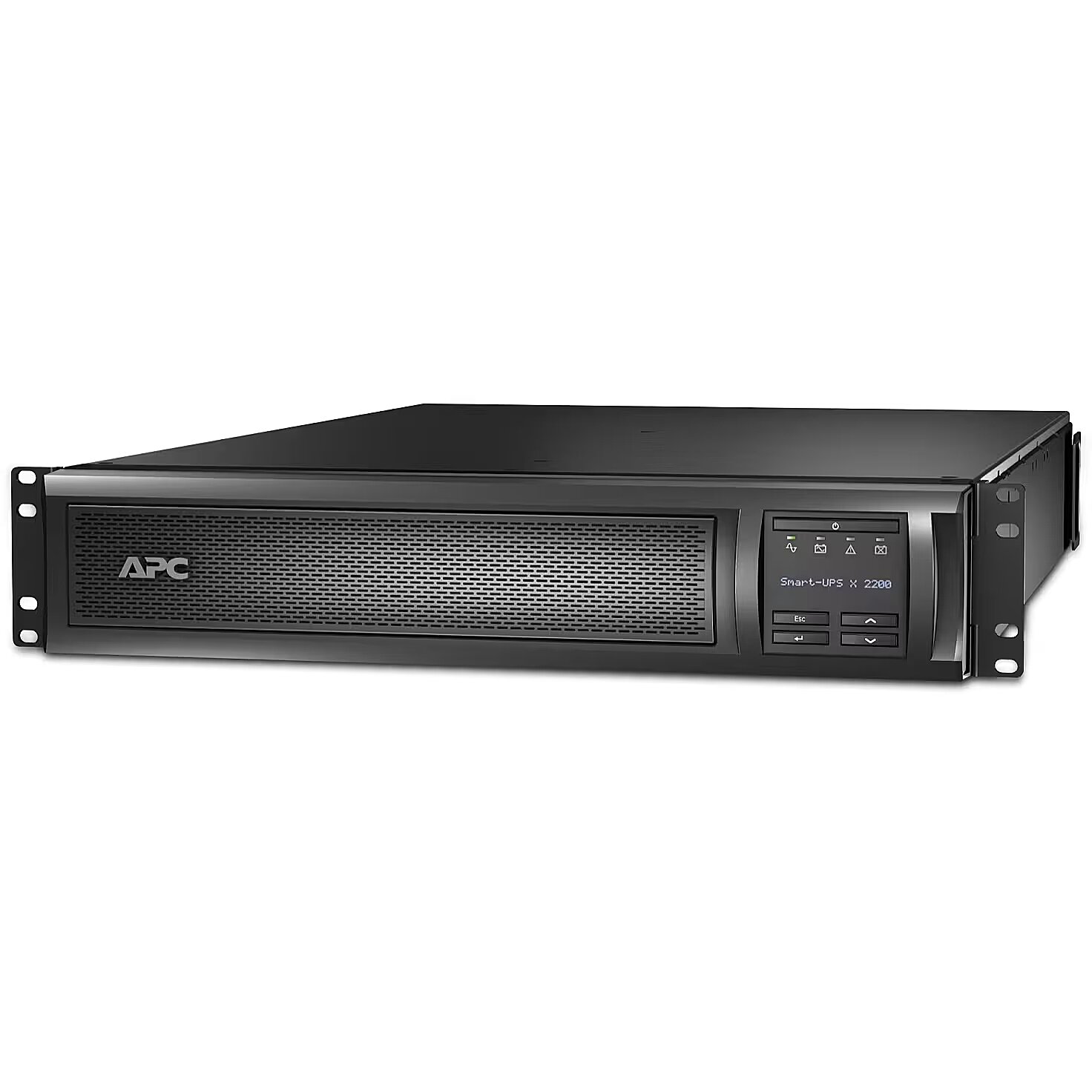

APC Smart-UPS X SMX2200R2HVNC 2200VA 1980W, IEC, 2U

Accessories included -
Active power - 1980 W
Apparent power - 2200 VA
ARTIKEL1 - SMX2200R2HVNC EXTENDED RUNTIME
ARTIKEL2 - .
Battery - Automatic battery test - Yes
Battery - Battery capacity - 702 Ah
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery life (max), years - 3 - 5
Battery recharge time, h - 3
Brand - APC
BrandPartCode - SMX2200R2HVNC
Breite - 0.6
Cable length, m - 1.83
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Certification - CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Certificates - Compliance certificates - RoHS
Charging time - 3 h
Color - Black
Connections - RJ-45
Connections - RJ-45 Serial
Connections - Smart-Slot
Depth, mm - 667
Description -
Description - APC SMART-UPS X 2200VA RACK/TOWER LCD 200-240V WITH NETWORK CARD
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 2U
Designation - CE+WEEE
dimension depth - 250 mm
dimension height - 600 mm
Dimensions - 85 x 432 x 667 mm
dimension weight - 45260 g
dimension width - 870 mm
ean - 731304327738
EANCode - 0731304327738
Environment requirements -
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Battery replacement
Features - Auto-restart - Yes
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 230 V
Features - Input operation voltage (min) - 208 V
Features - Noise level - 55 dB
Features - Output frequency - 50/60 Hz
Features - Output frequency regulation - +/- 3 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 208 V
Features - Output power - 1980 W
Features - Output power capacity - 2.2 kVA
Features - Output voltage regulation - 5%
Features - Response time - 10 ms
Features - Surge energy rating - 645 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Features - Web-based management - Yes
Frequency range, Hz - 50/60 +/- 3
Gewicht - 46.18
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 0731304327738
GTIN - 731304327738
guarantee - 36
guarantee_type - external
Height - 25.000000
Height, mm - 85
HERSTELLER - APC
Hoehe - 0.25
Hold-up time (maks) - 10 ms
HSTNUMMER - SMX2200R2HVNC
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x RJ-45 LAN
Input connection - British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C20
Input power ports - Type F Schuko
Input power ports - Type G British
Laenge - 0.86
Length - 870.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 8 pc(s)
Logistics data - Total carbon footprint (kg of CO2e) - 3167.15
LongDesc - Stay always online and prevent data lossAs soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the APC PowerChute Network shutdown software, you can even have critical IT hardware shut down automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware.Extend the runtimeYou can easily increase the number of minutes that the APC SMX UPS can independently supply emergency power by connecting external battery packs (SMX120RMBP2U). A runtime of several hours is even possible.SafetyIn addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.Manage your Smart-UPSThanks to the pre-installed network card (ap9641), you can easily connect the APC UPS to the network. This allows you to monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software.PowerChute Network ShutdownPowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, but also hyperconverged and virtual infrastructure*. In the event of a power failure, PowerChute can shut down your virtual machines correctly and the pre-configured boot sequence ensures that they are turned back on.*For HCI and virtual machine support an additional license is required:1 year: SWPCNS1Y-DIGI3 years: SWPCNS3Y-DIGI5 years: SWPCNS5Y-DIGIRemote management and monitoring of your networkThe network card can be managed remotely via the user-friendly web browser interface, remote management software EcoStruxure™ IT (SFTWES1-DIGI) or another SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionalities of the support contract below.Support contractThe optional network card support contract license* ensures that you are always up-to-date and secure and includes additional benefits such as frequent updates with:• New and improved functions• Security updates• Advanced support(The functionality of the support contract is included free of charge in the first year of the UPS)*The above license and available in the variants:1 year: SWNMC3SU-1Y-DIGIUp to (Replace the bold number in the article number with the desired variant)6 years: SWNMC3SU-6Y-DIGIEase of useThe basic functionalities can be set and read using physical buttons and an LCD screen.Rack/tower convertibleAn APC Smart-UPS SMX is rack/tower convertible. You can therefore mount it in a rack (2U) with the supplied mounting brackets, or place it upright.Extend the lifespanThe internal battery cartridge (APCRBC117) can be easily, safely and independently replaced by the user. This without having to switch off the APC SMX2200R2HVNC or connected equipment. This allows you to easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.Warranty extensionThe factory warranty of the SMX2200R2HVNC is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-04).Switched Outlet Groups: Remote reboot and phased start-upThanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS.It is also possible to reset a group of multiple UPS outlets and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely.You can also switch off non-critical loads; this extends the runtime for critical equipment.Included in the box1x SMX2200R2HVNC1x USB cable2x C13 to C14 powercord 2 Meter1x Schuko to C19 input powercord 2 Meter1x C19 to C20 powercord 2.5 Meter1x Software CD with Powershute Network Shutdown Edition1x Documentation CD1x British BS1363A to C19 input powercord2x 4 post rack mounting brackets1x Temperature sensorThis APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
LongProductName - APC Smart-UPS X SMX2200R2HVNC - 2200VA, 8x C13, 1x C19 outlet, USB, expandable runtime, NMC
LongSummaryDescription - APC Smart-UPS X SMX2200R2HVNC - 2200VA, 8x C13, 1x C19 outlet, USB, expandable runtime, NMC. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 702 Ah, Battery recharge time: 3 h. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Manufacturer - APC
ManufacturerPartNumber - SMX2200R2HVNC
Maximum power, W - 1980
name - SMX2200R2HVNC SMART X 2200VA R2T2U LCD AP9631
No. of batteries - 1
Noise level, dB - 55
Nominal input voltage, V - 208, 230
Nominal output voltage, V - 208, 230
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -
Other features - Output voltage - 230 V
Output interface - 1 x IEC 320 C19 (Battery Backup)
2 x IEC Jumpers (Battery Backup)
8 x IEC 320 C13 (Battery Backup)
Output power, W - 1980
Output power capacity (VA) - 2200
Output power ports - 1 x IEC-C19
Output power ports - 8 x IEC-C13
Packaging content - Cables included - Input power cable, USB cable
Packaging content - Quick installation guide - Yes
Packaging content - Rack mount kit - Yes
Packaging data - Package depth - 869 mm
Packaging data - Package height - 243 mm
Packaging data - Package weight - 45.3 kg
Packaging data - Package width - 596 mm
Packaging data - Resource CD - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 9 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - USB 2.0 ports quantity - 1
producer - APC
ProductName - APC Smart-UPS X SMX2200R2HVNC - 2200VA, 8x C13, 1x C19 outlet, USB, expandable runtime, NMC
Rack height (units) - 2
ShortSummaryDescription - APC Smart-UPS X SMX2200R2HVNC - 2200VA, 8x C13, 1x C19 outlet, USB, expandable runtime, NMC, Line-Interactive, 2.2 kVA, 1980 W, Sine, 208 V, 230 V
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 1
Storage temperature range (T-T), °C - -15 - 45
Storno - N
Surge energy rating, J - 645
Title - APC Smart-UPS X SMX2200R2HVNC - 2200VA, 8x C13, 1x C19 outlet, USB, expandable runtime, NMC
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/
vendpn - SMX2200R2HVNC
WarrantyInfo - 3 years repair or replace (excluding battery) and 2 years for battery
Weight - 37.24 kg
Weight - 46.000000
Weight & dimensions - Depth - 667 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Weight - 37.4 kg
Weight & dimensions - Width - 432 mm
Weight, kg - 37.24
Width - 600.000000
Width, mm - 432
