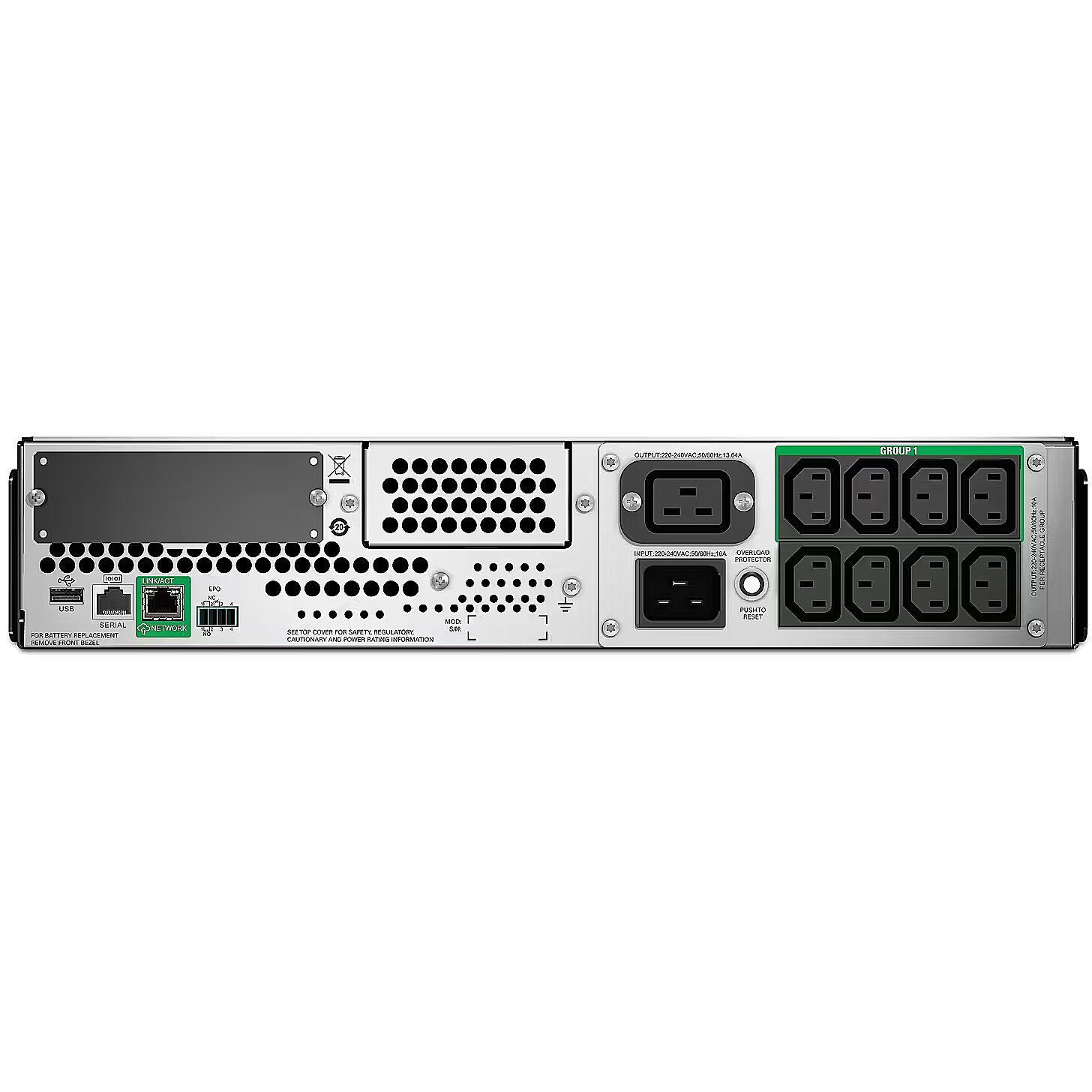

APC Smart-UPS SMT3000RMI2UC 3000VA, 2700W, IEC, 2U

Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
ID: 177196 Tootekood: SMT3000RMI2UC
Laos 7 üksused
Garantii: 2 aastat
2,681.68 €
Tarnevõimalused
  • Kohaletoimetamine Smartposti pakiautomaati 1,99 €: reedel, 15.11.2024
  • Kulleri kohaletoimetamine 3,99 €: reedel, 15.11.2024
Peamised tooteparameetrid Kõik parameetrid
  • Aku võimsus (VA): 3000 VA
  • Võimsus (W): 2700 W
Näidiku omadused
Näita : Ir
Põhiteave
Aku tüüp : Lead acid
Aku võimsus (VA) 3000 VA
Patareide suutlikkus (mahtuvus) on UPS pikaajalise töötamise näitaja, lahtiühendatuna vooluallikast. See parameeter vastab UPS seadmele, mil on täielikult täislaaditud akumulaator. Juhul, kui soovite välja selgitada, kui suurt mahtuvust vajab teie arvutitehnika, külastage www.apc.ru, kust võite leida võimsuse määramise konfiguraatori.
Laadimisaeg (tundi) : 3h
Võimsus (W) : 2700 W
Sadamad ja seadmed
Pesade arv (kokku) : 9
Pistikupesa tüüp : IEC320
Pistikupesade arv (aku varukoopia) : 9
RJ-45 : 2
USB : 1
Täpsem spetsifikatsioon
Accessories included -
Active power - 2700 W
Alarm - Alarm when on battery : distinctive low battery alarm : configurable delays
Apparent power - 3000 VA
ARTIKEL1 - SMART-UPS 3000VA LCD RM 2U 230V
ARTIKEL2 - WITH SMARTCONNECT IN
Backup time (100% load) - 3.2 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 547 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Typical backup time at full load - 3.2 min
Battery - Typical backup time at half load - 11.5 min
BatteryType -
  • Maintenance-free sealed Lead-Acid battery with suspended electrolyte
  • leakproof

  • Brand - APC
    BrandPartCode - SMT3000RMI2UC
    Breite - 0.6
    Category - Uninterruptible Power Supplies (UPSs)
    Category 1 - Energie & USV
    Category 2 - USV & Stromversorgung
    Category_1 - Power
    Category_2 - UPS
    Charging time - 3 h
    Chassis type - Midi Tower
    Color - Black
    ControlPanel - Multi-function LCD status and control console
    Depth - 683 mm
    Depth, mm - 683
    Description - APC Smart-UPS 3000 VA LCD do montażu w szafie (RM), 2U, 230 V, z usługą SmartConnect
    Inteligentna i wydajna ochrona zasilania w sieciach, od poziomu podstawowego po możliwość skalowania czasu podtrzymania. Idealne rozwiązanie dla serwerów, terminali POS, routerów, przełączników, koncentratorów i innych urządzeń sieciowych.
    Description - APC SMART-UPS 3000VA LCD RM 2U 230V WITH SMARTCONNECT
    Design - Cable length - 2 m
    Design - Certification - CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE, REACH, PEP, EOLI
    Design - Display type - LCD
    Design - Form factor - Rackmount
    Design - LED indicators - Status
    Design - Product colour - Black
    Design - Rack capacity - 2U
    dimension depth - 250 mm
    dimension height - 970 mm
    Dimensions - 86 x 480 x 683 mm
    dimension weight - 55000 g
    dimension width - 600 mm
    ean - 731304337348
    EAN - 0731304337348
    EANCode - 0731304337348
    EAN_code - 0731304337348
    Environment requirements -
    Features - Audible alarm(s) - Yes
    Features - Auto-restart - Yes
    Features - Automatic Voltage Regulation (AVR) - Yes
    Features - Efficiency - 98.9%
    Features - Hold time (max) - 8 ms
    Features - Hold time (min) - 4 ms
    Features - Input frequency - 50/60 Hz
    Features - Input operation voltage (max) - 302 V
    Features - Input operation voltage (min) - 151 V
    Features - Noise level - 55 dB
    Features - Output operation voltage (max) - 240 V
    Features - Output operation voltage (min) - 220 V
    Features - Output power - 2700 W
    Features - Output power capacity - 3 kVA
    Features - Surge energy rating - 320 J
    Features - UPS topology - Line-Interactive
    Features - Waveform - Sine
    FormFactor - Rack
    Form factor - Rack
    Gewicht - 52.42
    GrossWeight - 52.200 kg
    Gross Weight Kg - 51,7
    GRUPPE1 - Power Protection
    GRUPPE2 - UPS (Uninterruptable Power Supply)
    GTIN - 731304337348
    GTIN - 0731304337348
    guarantee - 36
    guarantee_type - external
    Height - 86 mm
    Height - 240.000000
    Height, mm - 86
    HERSTELLER - APC
    Hoehe - 0.26
    Hold-up time (maks) - 10 ms
    HSTNUMMER - SMT3000RMI2UC
    I/O connectors - 1 x RJ-45 (iLO Remote Management Network)
    I/O connectors - 1 x USB 2.0
    Input connection - British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
    InputConnections -
  • IEC-320 C20
  • Schuko CEE 7 / EU1-16P
  • British BS1363A

  • InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
    Input frequency, Hz - 50/60
    InputVoltage - 230V
    Interface - RJ45
    Interface - USB
    InterfacePorts -
  • RJ-45 Serial
  • Smart-Slot
  • USB

  • Laenge - 0.99
    Length - 990.000000
    Logistics data - Harmonized System (HS) code - 85078000
    LongDesc -
    LongDesc - Always stay online and prevent data lossAs soon as the power goes out, an APC Smart-UPS immediately provides emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the free APC PowerChute software you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This way you prevent data loss, downtime and physical damage to hardware.SafetyIn addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.Battery lifeYou can easily read the expected battery life in the runtime graph, which you can find between the product images. You can easily see how long the UPS supplies emergency power at a certain load.SmartConnectOut-of-box remote UPS monitoring, free for a 6-month trial period. Using the SmartConnect ethernet port, you can easily connect the Smart-UPS to your network and easily monitor it remotely via the secure APC SmartConnect cloud-based web portal*. In addition, the UPS can always be monitored via this port via EcoStruxure IT Expert (SFTWES1-DIGI).* Extend access to SmartConnect through the following licenses:1 year Standard Plan: ERWPMON1-1Y-DIGI3 year Standard Plan: ERWPMON1-3Y-DIGI1 year Advanced Plan: ERWPLUS1-1Y-DIGI3 year Advanced Plan: ERWPLUS1-3Y-DIGIPowerChuteBy connecting the UPS to a maximum of one server via a USB cable, it can automatically provide it with a shutdown signal during a prolonged power outage and thus prevent a hard shutdown. This exact moment can be set via the free APC PowerChute Serial Edition software.Network Management CardIf you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can easily be managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software associated with the network card can even be differentiated in the shutdown moment and the order in which this happens.Ease of useBy means of physical buttons and an LCD screen make it possible to set and read the basic functionalities. Thanks to the included 4-post rail kit, you can easily mount the UPS in a rack.Extend the lifespanThe internal battery cartridge (RBC43) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMT3000RMI2UC or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.Warranty extensionThe manufacturer's warranty of the SMT3000RMI2UC is 3 years, with the exception of the battery cartridge, which has a 2-year manufacturer's warranty. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-04).Switched Outlet Groups: Remote reboot and phased start-upThanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which limits oversizing of the UPS.It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. If SmartConnect Advanced (ERWPLUS1-1Y-DIGI) is used, a UPS with SmartConnect port + Ecostruxure IT Expert (SFTWES1-DIGI) or a network card (ap9640) in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this is even possible at a distance.Green PremiumThis label represents Schneider Electric's commitment to deliver products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products.Green Premium:- Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. The energy efficiency of this product is at least 10% higher than the market average.- Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/- Commits minimal use of hazardous substances in and beyond compliance with laws and regulations (RoHS-/REACh)Maximize availabilityOr instead of extending the warranty, opt for the even more complete 5-year EcoCare Service to maximize the availability of your APC UPS. In addition to a 5-year warranty, it also includes 24/7 remote monitoring through the Schneider Electric Connected Services Hub and SE's on-site repair service (replacement parts, labor, installation and call-out charges).
    LongProductName - APC Smart-UPS SMT3000RMI2UC - 8x C13, 1x C19, USB, Rack Mountable, SmartConnect, 3000VA
    LongSummaryDescription - APC Smart-UPS SMT3000RMI2UC - 8x C13, 1x C19, USB, Rack Mountable, SmartConnect, 3000VA. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 547 VAh, Typical backup time at full load: 3.2 min. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 432 mm, Depth: 683 mm, Height: 86 mm
    Manufacturer - APC
    Manufacturer Code - SMT3000RMI2UC
    Manufacturer Name - APC by Schneider Electric
    ManufacturerPartNumber - SMT3000RMI2UC
    Manufacturer_code - SMT3000RMI2UC
    MANUFDATASHEET - https://www.apc.com/shop/bg/en/products/APC-Smart-UPS-3000VA-LCD-RM-2U-230V-with-SmartConnect/P-SMT3000RMI2UC
    MPN - SMT3000RMI2UC
    Name - APC Smart-UPS 3000VA SMT3000RMI2UC LCD - with SmartConnect
    Name - APC Smart-UPS Rack 2HE SMT3000RMi2UC 2700W 3000VA Line Interactive
    name - SMT3000RMI2UC Smart UPS 3kVA/2.7kW 2U SmartConn
    No. of batteries - 1
    Noise level, dB - 55
    Nominal input voltage, V - 230
    Nominal output voltage, V - 230
    Number of phases input - 1 (230V)
    Operating relative humidity range, % - 0-95
    Operating temperature range (T-T), °C - 0-40
    Operational conditions - Non-operating altitude - 0 - 15000 m
    Operational conditions - Operating altitude - 0 - 3000 m
    Operational conditions - Operating relative humidity (H-H) - 0 - 95%
    Operational conditions - Operating temperature (T-T) - 0 - 40 °C
    Operational conditions - Storage relative humidity (H-H) - 0 - 95%
    Operational conditions - Storage temperature (T-T) - -15 - 45 °C
    Other features -
    Other features - Nominal input voltage - 230 V
    Other features - Nominal output voltage - 230 V
    OutputConnections -
  • (8) IEC 320 C13 (Battery Backup)
  • (3) IEC Jumpers (Battery Backup)
  • (1) IEC 320 C19 (Battery Backup)

  • OutputFrequency - 50/60Hz +/- 3 Hz
    Output power, W - 2700
    Output power capacity (VA) - 3000
    Output power ports - 1 x IEC-C19
    Output power ports - 8 x IEC-C13
    OutputVoltage - 230 V
    PackageContents -
  • CD with software
  • Documentation CD
  • Rack mounting hardware
  • Rack Mounting support rails
  • USB cable

  • Packaging data - Bundled software - Powershute Business Edition
    Packaging data - Cables included - RS-232, USB cable
    Packaging data - Quick installation guide - Yes
    Packaging data - Rack mount kit - Yes
    Packaging data - Software CD - Yes
    PeriodofWarranty - 2 Y
    Ports & interfaces - AC outlets quantity - 9 AC outlet(s)
    Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
    Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
    Ports & interfaces - Number of output IEC jumpers - 3
    Ports & interfaces - Power plug - C20 coupler
    Ports & interfaces - Serial interface - Yes
    Ports & interfaces - Serial interface type - RJ-45
    Ports & interfaces - SmartSlot - Yes
    Ports & interfaces - USB port - Yes
    PowerVAW - 3000 VA
    PowerW - 2700 W
    ProdDesc - APC Smart-UPS 3000VA LCD RM 2U 230V with SmartConnect
    producer - APC
    ProductName - APC Smart-UPS SMT3000RMI2UC - 8x C13, 1x C19, USB, Rack Mountable, SmartConnect, 3000VA
    ProductPicture - http://www.tdbaltic.ee/images/ds4/SMT3000RMI2UC-01v2.jpg
    ProductPicture2 -
    ProductPicture3 -
    ProductPicture4 -
    RechargeTime - 3 h
    RJ45 - -
    Runtime - -
    Short description - APC Smart-UPS 3000 VA LCD RM mit SmartConnect
    ShortSummaryDescription - APC Smart-UPS SMT3000RMI2UC - 8x C13, 1x C19, USB, Rack Mountable, SmartConnect, 3000VA, Line-Interactive, 3 kVA, 2700 W, Sine, 151 V, 302 V
    SmartSlot - Yes
    Software -
    Special functions -
    Stck_Kart - 1
    Stck_Pal - 8
    Storage temperature range (T-T), °C - -15-45
    Storno - Y
    Technical details - Compliance certificates - RoHS
    Technical details - Sustainability certificates - Green Premium
    Title - APC Smart-UPS SMT3000RMI2UC - 8x C13, 1x C19, USB, Rack Mountable, SmartConnect, 3000VA
    Topology - Line interactive
    UPS Architecture - line-interactive
    UPS devices and accessories - Yes
    URL - https://www.apc.com/shop/uk/en/products/APC-Smart-UPS-3000VA-LCD-RM-2U-230V-with-SmartConnect/P-SMT3000RMI2UC
    USB - Yes
    vendpn - SMT3000RMI2UC
    Warranty - 2 years
    WarrantyInfo - 3 year warranty on the UPS (excluding battery) and 2 years on the battery (the warranty consists of replacement or repair)
    WaveformType - Sine wave
    Weight - 44.28 kg
    Weight - 44.280 Kg
    Weight - 54
    Weight - 57,00
    Weight - 60.000000
    Weight & dimensions - Depth - 683 mm
    Weight & dimensions - Height - 86 mm
    Weight & dimensions - Package depth - 980 mm
    Weight & dimensions - Package height - 254 mm
    Weight & dimensions - Package weight - 51.7 kg
    Weight & dimensions - Package width - 600 mm
    Weight & dimensions - Weight - 44.3 kg
    Weight & dimensions - Width - 432 mm
    Weight, kg - 44.28
    Width - 480 mm
    Width - 600.000000
    Width, mm - 480
