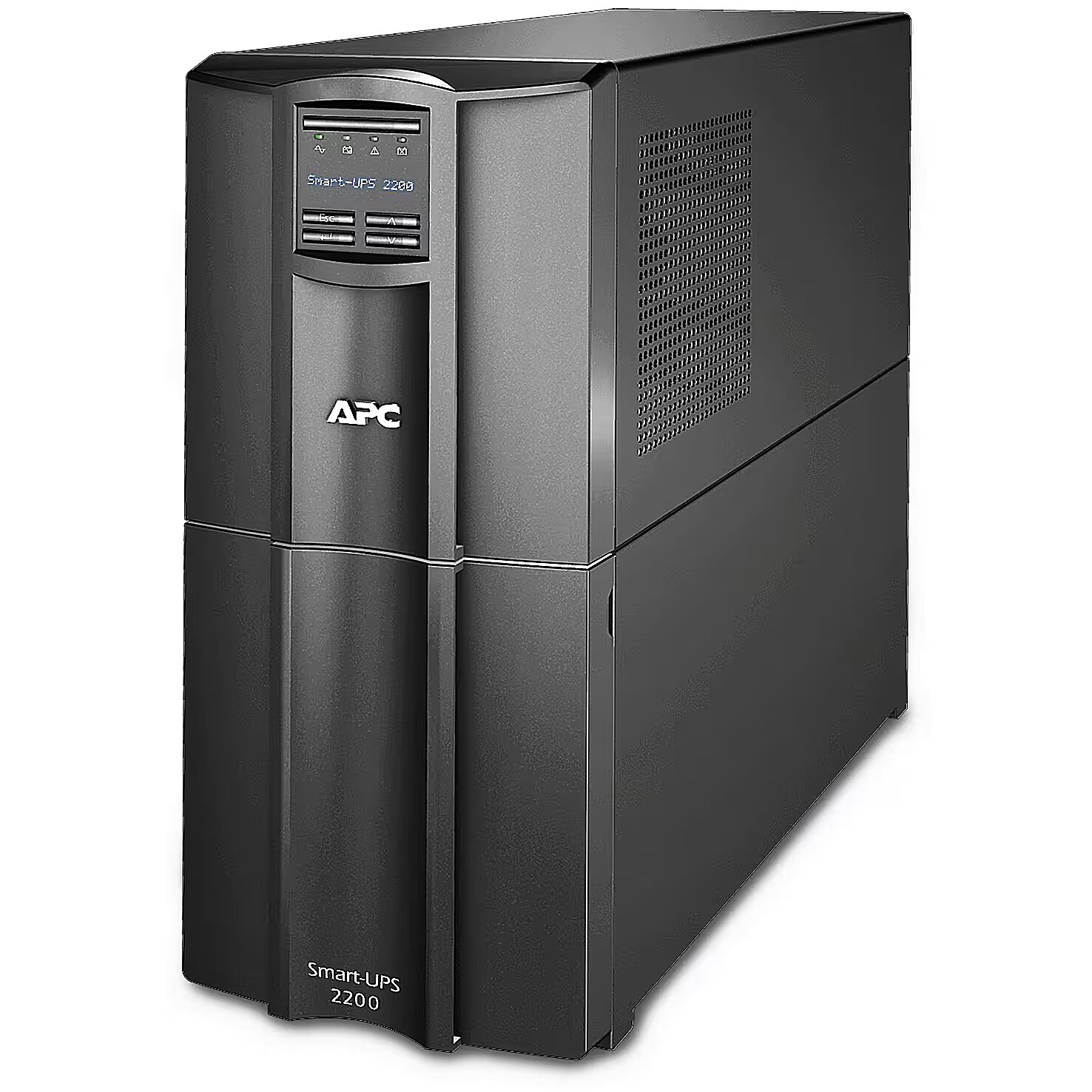

APC Smart-UPS SMT2200IC 2200VA, 1980W, IEC

Accessories included -
Active power - 1980 W
Alarm - Alarm when on battery : distinctive low battery alarm : configurable delays
Apparent power - 2200 VA
ARTIKEL1 - SMART-UPS 2200VA LCD 230V
ARTIKEL2 - WITH SMARTCONNECT IN
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Typical backup time at full load - 8.7 min
Battery - Typical backup time at half load - 25 min
BatteryType -

Maintenance-free sealed Lead-Acid battery with suspended electrolyte

leakproof

Brand - APC
BrandPartCode - SMT2200IC
Breite - 0.69
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certificates - Certification - CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Certificates - Compliance certificates - RoHS
Charging time - 3 h
Chassis type - Tower
Color - Black
Colour of product - Black
ControlPanel - Multi-function LCD status and control console
Depth - 544 mm
Depth, mm - 544
Description - APC Smart-UPS 2200 VA LCD 230 V z usługą SmartConnect Inteligentna i wydajna ochrona zasilania w sieciach, od poziomu podstawowego po możliwość skalowania czasu podtrzymania. Idealne rozwiązanie dla serwerów, terminali POS, routerów, przełączników, koncentratorów i innych urządzeń sieciowych. Możliwość zimnego startu - Tymczasowe zasilanie akumulatorowe w czasie zaniku zasilania sieciowego. Licznik energii - Informuje o rzeczywistej liczbie pobranych kilowatogodzin. Tryb ekologiczny - Tryb pracy (rozwiązanie objęte zgłoszeniem patentowym), w którym w wypadku dobrej jakości zasilania zewnętrznego niektóre podzespoły zasilacza są pomijane, co zapewnia wysoką sprawność przy zachowaniu pełnej ochrony. Wysoka sprawność online - Niższe koszty i mniejsza emisja ciepła. Intuicyjny interfejs z wyświetlaczem LCD - Dostarcza przejrzystych i precyzyjnych informacji w wielu językach, umożliwia też lokalne konfigurowanie zasilacza UPS za pomocą klawiszy nawigacyjnych. Prognoza daty wymiany akumulatora - Dostarcza dynamicznie aktualizowanych informacji o zalecanym terminie wymiany akumulatorów (miesiąc i rok), wspomagając długoterminowe planowanie utrzymania infrastruktury. Czysty wyjściowy przebieg sinusoidalny przy zasilaniu z akumulatora - Symuluje zasilanie sieciowe w celu zapewnienia jak największej zgodności z serwerami z aktywnie korygowanym współczynnikiem mocy obciążenia oraz wrażliwymi urządzeniami elektronicznymi. Sekwencyjne zamykanie i restartowanie w sieci - Możliwość skonfigurowania wyłączania i włączania wybranych grup gniazd w zadanej kolejności (w przypadku zasilaczy UPS z zarządzanymi grupami gniazd). Pojedyncza zarządzana grupa gniazd wyjściowych - Pojedynczą grupą gniazd można niezależnie sterować z zasilacza UPS, co pozwala na selektywne restartowanie zawieszonych urządzeń, programowanie sekwencji włączania/wyłączania oraz czasowe wyłączanie obciążeń nienewralgicznych. SmartConnect - Innowacyjna, łatwa w użyciu funkcja zdalnego monitorowania, która zapewnia automatyczne powiadomienia, aktualizacje oprogramowania firmware i zaawansowane wsparcie. Gniazdo typu SmartSlot - Dostosuj właściwości UPS-a za pomocą kart do zarządzania. Zgodny z oprogramowaniem StruxureWare Data Center Expert - Umożliwia scentralizowane zarządzanie za pośrednictwem APC InfraStruXure Central. Ładowanie akumulatorów dostosowane do temperatury - Wydłużenie czasu eksploatacji akumulatorów przez regulację napięcia ładowania w zależności od temperatury akumulatora.
Description - APC SMART-UPS 2200VA LCD 230V WITH SMARTCONNECT
Design - Display type - LCD
Design - LED indicators - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 670 mm
dimension height - 760 mm
Dimensions - 435 x 197 x 544 mm
dimension weight - 59000 g
dimension width - 370 mm
ean - 731304337317
EAN - 0731304337317
EANCode - 0731304337317
Eans - 0731304337317
Environment requirements -
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm, Battery replacement
Features - Auto-restart - Yes
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 302 V
Features - Input operation voltage (min) - 151 V
Features - Noise level - 45 dB
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 1980 W
Features - Output power capacity - 2.2 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 5%
Features - Power protection features - Over voltage, Overload
Features - Response time - 6 ms
Features - Surge energy rating - 365 J
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
FormFactor - Tower
Form factor - Tower
Gewicht - 61.5
GrossWeight - 60.000 kg
Gross Weight Kg - 61,9
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304337317
GTIN - 0731304337317
guarantee - 36
guarantee_type - external
Height - 370.000000
Height - 435 mm
Height, mm - 435
HERSTELLER - APC
Hoehe - 0.38
Hold-up time (maks) - 6 ms
HSTNUMMER - SMT2200IC
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 1 x USB 2.0
InputConnections -

IEC-320 C20

Schuko CEE 7 / EU1-16P

British BS1363A

InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input frequency, Hz - 50/60
Input power ports - IEC-C20
InputVoltage - 230 V
Interface - RJ45
Interface - USB
InterfacePorts -

RJ-45 Serial

Smart-Slot

USB

Laenge - 0.77
Length - 560.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 9 pc(s)
Logistics data - Total carbon footprint (kg of CO2e) - 3715.93
LongDesc -
LongDesc - Stay always online and prevent data lossAs soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the free APC PowerChute software, you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This prevents data loss, downtime and physical damage to hardware.SafetyIn addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.Battery lifeYou can easily read the expected battery life in the runtime graph, which you can find between the product images. This makes it easy to see how long the UPS will supply emergency power at a certain load.SmartConnectOut-of-box remote UPS monitoring, free during a 6-month trial period. Using the SmartConnect Ethernet port, you can easily connect the Smart-UPS to your network and monitor it remotely via the secure APC SmartConnect cloud-based web portal*. In addition, the UPS can always be monitored via this port via EcoStruxure IT Expert (SFTWES1-DIGI).* Extend access to SmartConnect via the following licenses:1 year Standard Plan: ERWPMON1-1Y-DIGI3 years Standard Plan: ERWPMON1-3Y-DIGI1 year Advanced Plan: ERWPLUS1-1Y-DIGI3 years Advanced Plan: ERWPLUS1-3Y-DIGIPowerChuteBy connecting the UPS to a maximum of one server via a USB cable, it can automatically provide it with a shutdown signal during a prolonged power failure and thus still prevent a hard shutdown. This exact moment can be set via the free APC PowerChute Serial Edition software.Network Management CardIf you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can be easily managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software belonging to the network card, it is even possible to differentiate between the shutdown moment and the order in which this happens.Ease of useBy means of physical buttons and an LCD screen, it is possible to set and read out the basic functionalities.Extend the lifespanThe internal battery cartridge (RBC55) can be easily, safely and independently replaced by the user. This without having to switch off the APC SMT2200IC or connected equipment. This way you can easily and cheaply extend the life of the APC Smart-UPS and your equipment always stays online.Warranty extensionThe factory warranty of the SMT2200IC is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-03).Switched Outlet Groups: Remote reboot and phased start-upThanks to the Switched Outlet Groups it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS.It is also possible to reset a group of multiple UPS outlets and the equipment connected to them. If SmartConnect Advanced (ERWPLUS1-1Y-DIGI), a UPS with SmartConnect port + Ecostruxure IT Expert (SFTWES1-DIGI) or a network card (ap9640) in combination with Ecostruxure IT Expert (SFTWES1-DIGI) are used, this can even be done remotely.
LongProductName - APC Smart-UPS SMT2200IC - 8x C13, 1x C19, USB, SmartConnect, 2200VA
LongSummaryDescription - APC Smart-UPS SMT2200IC - 8x C13, 1x C19, USB, SmartConnect, 2200VA. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlets quantity: 9 AC outlet(s), USB port type: USB Type-A. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 8.7 min, Typical backup time at half load: 25 min. Product colour: Black, Display type: LCD. Compliance certificates: RoHS, Certification: CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Manufacturer - APC
Manufacturer Code - SMT2200IC
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SMT2200IC
MANUFDATASHEET - https://www.apc.com/shop/vn/en/products/APC-Smart-UPS-2200VA-LCD-230V-with-SmartConnect/P-SMT2200IC
MPN - SMT2200IC
Name - APC Smart-UPS Tower SMT2200iC 2200VA 1980W Line Interactive SmartConnect
Name - APC Smart SMT2200IC
name - SmartUPS SMT2200IC 2.2kVA/1.98W Tower SmartConnect
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0-95
Operating temperature range (T-T), °C - 0-40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -

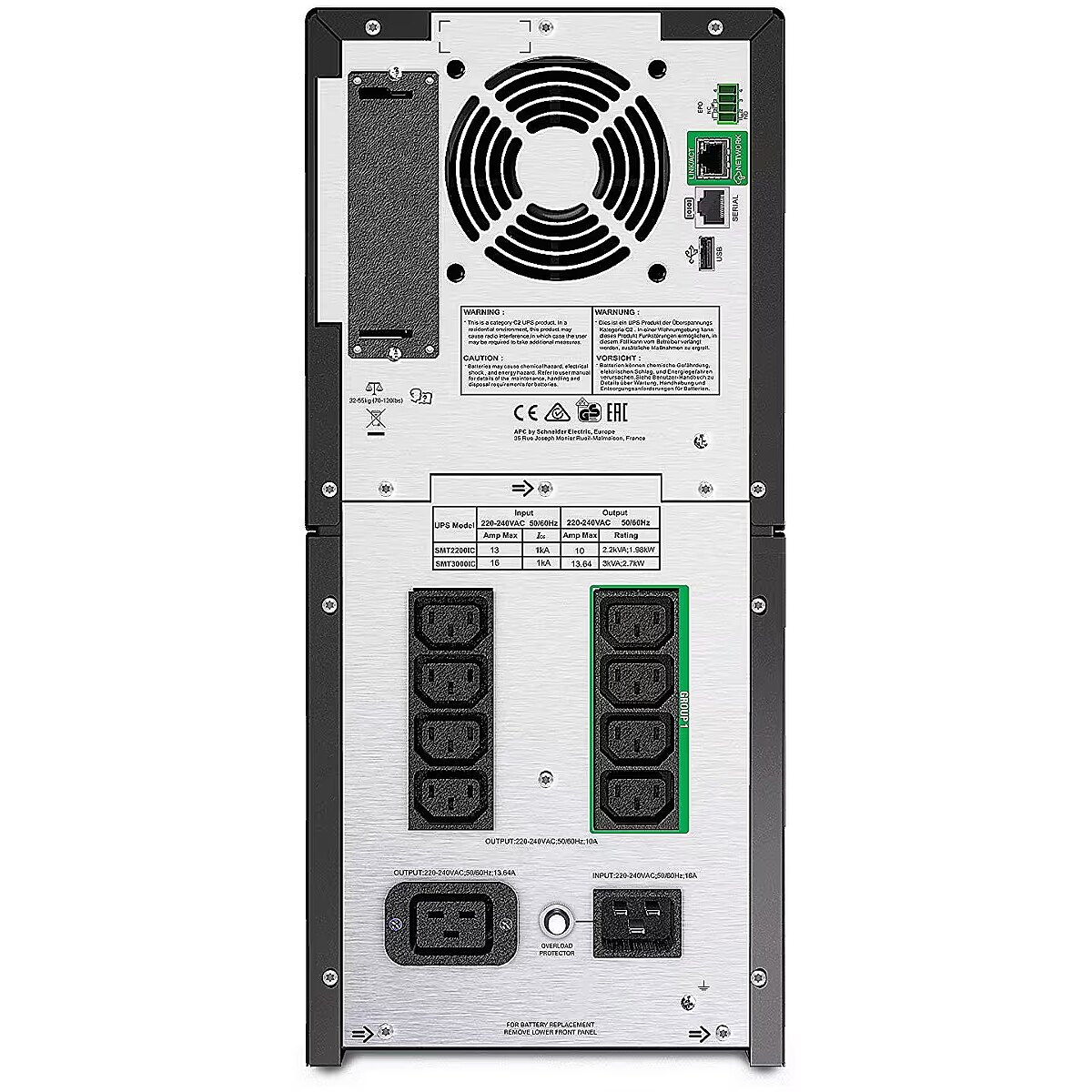

OutputConnections -

(1) IEC 320 C19 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

(8) IEC 320 C13 (Battery Backup)

OutputFrequency - 50/60Hz +/- 3 Hz
Output power, W - 1980
Output power capacity (VA) - 2200
Output power ports - 1 x IEC-C19
Output power ports - 1 x Terminal
Output power ports - 8 x IEC-C13
OutputVoltage - 230 V
PackageContents -

CD with software

Documentation CD

USB cable

Packaging content - Cables included - RS-232, USB cable
Packaging data - Package depth - 762 mm
Packaging data - Package height - 699 mm
Packaging data - Package weight - 61.9 kg
Packaging data - Package width - 381 mm
Packaging data - Software CD - Yes
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 9 AC outlet(s)
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial ports quantity - 1
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-A
PowerVAW - 2200 VA
PowerW - 1980 W
ProdDesc - APC Smart-UPS 2200VA LCD 230V with SmartConnect
producer - APC
Producer - APC
ProducerCode - SMT2200IC
ProductName - APC Smart-UPS SMT2200IC - 8x C13, 1x C19, USB, SmartConnect, 2200VA
ProductPicture - http://www.tdbaltic.ee/images/ds4/SMT2200IC-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
RechargeTime - 3 h
RJ45 - -
Runtime - -
ShortDescription -
Short description - APC Smart-UPS 2200 VA LCD mit SmartConnect
ShortSummaryDescription - APC Smart-UPS SMT2200IC - 8x C13, 1x C19, USB, SmartConnect, 2200VA, Line-Interactive, 2.2 kVA, 1980 W, Sine, 151 V, 302 V
SmartSlot - Yes
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 1
Storage temperature range (T-T), °C - -15-45
Storno - Y
Sustainability - Sustainability certificates - Green Premium
Title - APC Smart-UPS SMT2200IC - 8x C13, 1x C19, USB, SmartConnect, 2200VA
Topology - Line interactive
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.se.com/uk/en/product/SMT2200IC/apc-smartups-line-interactive-2200va-tower-230v-8x-iec-c13%202x-iec-c19-outlets-smartconnect-port%20smartslot-avr-lcd/
USB - Yes
vendpn - SMT2200IC
Warranty - 2 years
WarrantyInfo - 3 years
WaveformType - Sine wave
Weight - 48.800 Kg
Weight - 50
Weight - 50.000000
Weight - 50.2 kg
Weight & dimensions - Depth - 544 mm
Weight & dimensions - Height - 435 mm
Weight & dimensions - Weight - 48.8 kg
Weight & dimensions - Width - 197 mm
Weight, kg - 48.8
Width - 197 mm
Width - 755.000000
Width, mm - 197
