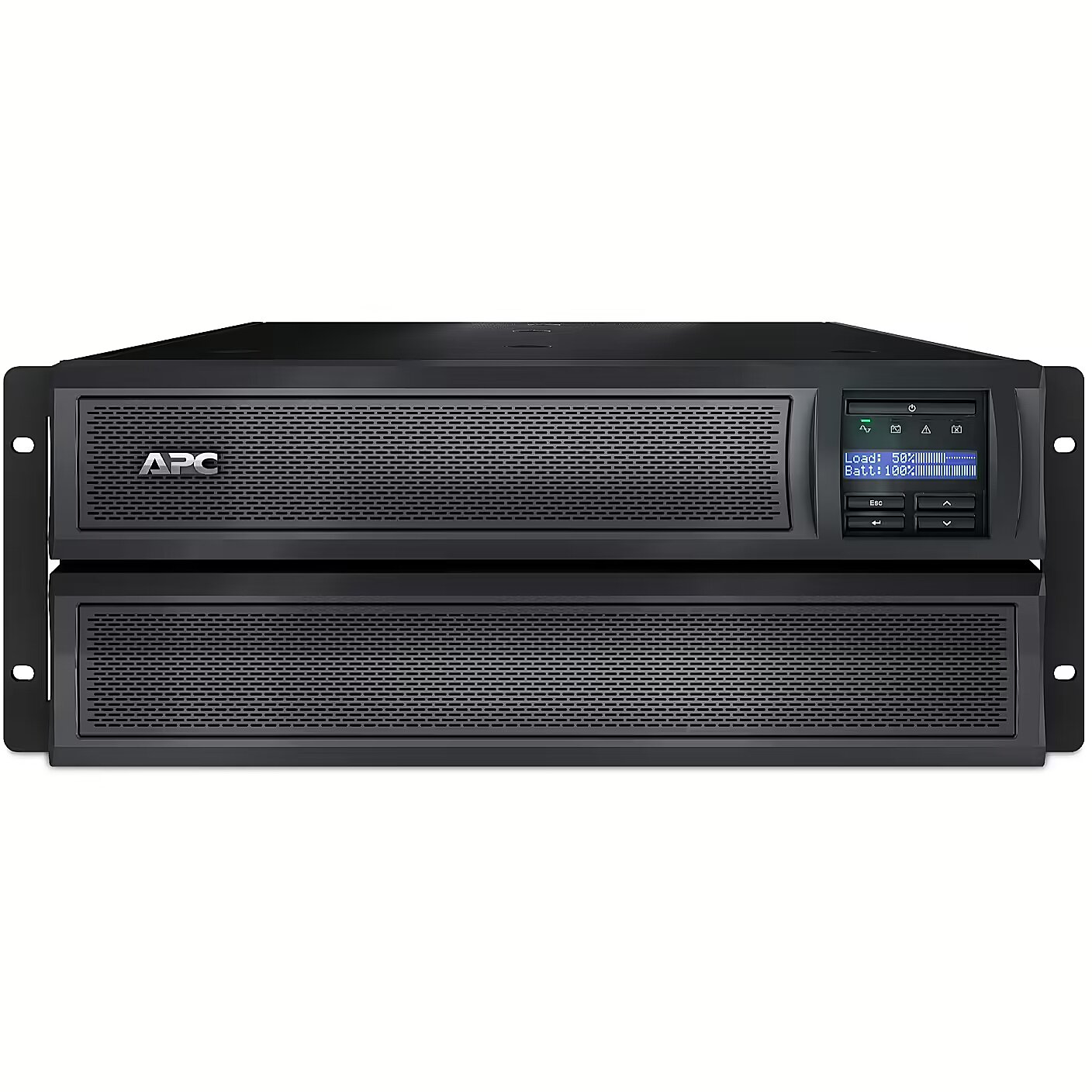

APC Smart-UPS X SMX2200HVNC 2200VA, 1980W, IEC, 4U

Accessories included -
Active power - 1980 W
Apparent power - 2200 VA
ARTIKEL1 - SMX2200HVNC EXTENDED RUNTIME
ARTIKEL2 - IN
Battery - Automatic battery test - Yes
Battery - Battery capacity - 702 Ah
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery capacity - 702 Ah
Battery life (max), years - 3 - 5
Battery recharge time, h - 3
Brand - APC
BrandPartCode - SMX2200HVNC
Breite - 0.6
Cable length, m - 1.83
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Charging time - 3 h
Chassis type - Rack
Chassis type - Tower
Color - Black
Connections - RJ-45
Connections - RJ-45 Serial
Connections - Smart-Slot
Connections - USB
Depth, mm - 483
Description -
Description - APC SMART-UPS X 2200VA SHORT DEPTH TOWER/RACK CONVERTIBLE LCD 200-240V WITH NETWORK CARD
Design - Cable length - 2 m
Design - Certification - CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Design - Display type - LED
Design - Form factor - Rackmount/Tower
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 2U
dimension depth - 330 mm
dimension height - 586 mm
Dimensions - 178 x 483 x 432 mm
dimension weight - 47630 g
dimension width - 633 mm
ean - 731304327158
EANCode - 0731304327158
Eans - 731304327158
Environment requirements -
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Battery replacement
Features - Auto-restart - Yes
Features - Emergency Power Off (EPO) - Yes
Features - EMI/RFI noise filtering - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 280 V
Features - Input operation voltage (min) - 140 V
Features - Noise level - 55 dB
Features - Output frequency - 50/60 Hz
Features - Output frequency regulation - +/- 3 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 208 V
Features - Output power - 1980 W
Features - Output power capacity - 2.2 kVA
Features - Output voltage regulation - 5%
Features - Response time - 10 ms
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Features - Web-based management - Yes
Filters / protection - No
Frequency range, Hz - 50/60 +/- 3
Gewicht - 70
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304327158
GTIN - 0731304327158
guarantee - 36
guarantee_type - external
Height - 590.000000
Height, mm - 432
HERSTELLER - APC
Hoehe - 0.34
HSTNUMMER - SMX2200HVNC
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
Input connection - British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C20
Laenge - 0.63
Length - 340.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 6 pc(s)
LongDesc - Cold-start capableProvides temporary battery power when the utility power is out.Energy meterProvides actual kilowatt hours of usage for energy conscious users.Green modePatent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.High online efficiencyReduces utlility costs, generates less heat.Intuitive LCD interfaceProvides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.Predictive replace battery dateDynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.Preinstalled network management cardProvides for remote management and control of the UPS over a network out of the box.Single switched outlet groupSingle outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.SmartSlotCustomize UPS capabilities with management cards.Temperature-compensated battery chargingProlongs battery life by regulating the charge voltage according to battery temperature.AvailabilityDisconnected battery notificationWarns when a battery is not available to provide backup power.Automatic restart of loads after UPS shutdownAutomatically starts up the connected equipment upon the return of utility power.Automatic self-testPeriodic battery self-test ensures early detection of a battery that needs to be replaced.Intelligent battery managementMaximizes battery performance, life, and reliability through intelligent, precision charging.Temperature-compensated battery chargingProlongs battery life by regulating the charge voltage according to battery temperature.Boost and Trim Automatic Voltage Regulation (AVR)Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).Power conditioningProtects connected loads from surges, spikes, lightning, and other power disturbances.ManageabilityNetwork manageableProvides remote power management of the UPS over the network.Serial connectivityProvides management of the UPS via a serial port.Audible alarmsActively let you know if the unit is on battery, if the battery is low or if there is an overload condition.Disconnected battery notificationWarns when a battery is not available to provide backup power.LED status indicatorsQuickly understand unit and power status with visual indicators.USB connectivityProvides management of the UPS via a USB port (not available on all models).SafetySafety-agency approvedEnsures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.Marketing FeaturesLow operating and maintenance costs with high efficiency, proven reliability and intelligent battery managementPatented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging.Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.Save time with easy and convenient remote accessibilityNetwork manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.Smarter productivity with ability to tailor to your specific application needsIntuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.Peace of mind that comes with full equipment compatibility and reliability of a leaderProvides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.Avoids costly power problems by keeping your IT equipment and data safe and availableNetwork grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systemsServiceabilityResettable circuit breakersEnables a quick recovery from overload events.Hot-swappable batteriesEnsures clean, uninterrupted power to protected equipment while batteries are being replacedPredictive failure notificationProvides early-warning fault analysis ensuring proactive component replacement.User-replaceable batteriesIncreases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)Battery failure notificationProvides early-warning fault analysis on batteries enabling timely preventive maintenanceAdaptabilityAdjustable voltage-transfer pointsMaximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.Adjustable voltage sensitivityProvides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
LongProductName - 230 V, 1.98 KW / 2.2 kVA, 50/60 Hz, RJ-45, SmartSlot, USB, 178 x 483 x 432 mm, 38.56 kg
LongSummaryDescription - APC Smart-UPS X 2200VA. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, C20 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 702 Ah, Battery recharge time: 3 h. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 178 mm, Depth: 483 mm, Height: 432 mm
Manufacturer - APC
ManufacturerPartNumber - SMX2200HVNC
Maximum power, W - 1980
Name - APC Smart SMX2200HVNC
name - SMX2200HVNC SMART X 220 0VA R2T 4U LCD + AP9631
Noise level, dB - 55
Nominal input voltage, V - 208, 230
Nominal output voltage, V - 208, 230
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -
Other features - Output voltage - 230 V

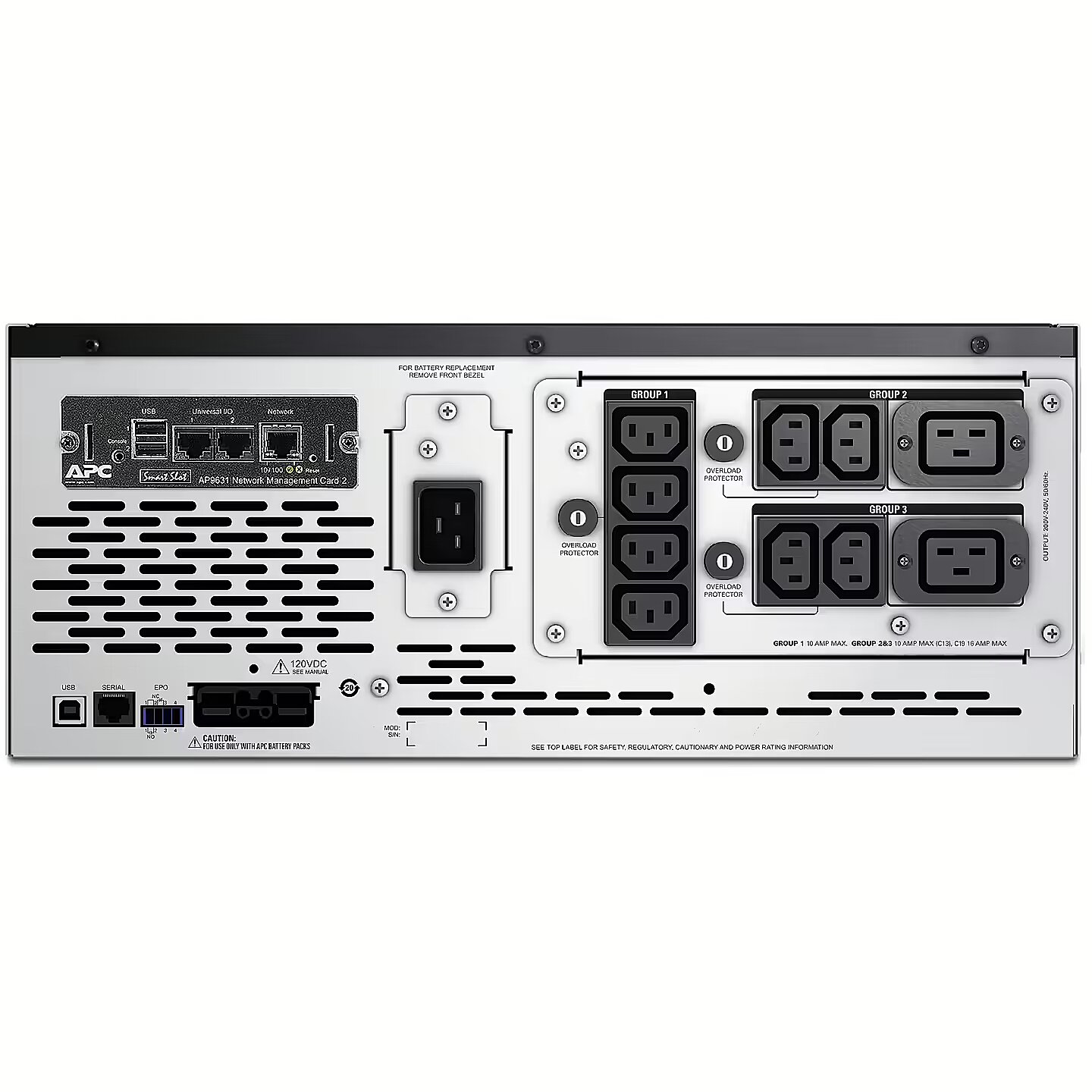

Output interface - 2 x IEC 320 C19 (Battery Backup)
2 x IEC Jumpers (Battery Backup)
8 x IEC 320 C13 (Battery Backup)
Output power, W - 1980
Output power capacity (VA) - 2200
Output power ports - 2 x IEC-C19
Output power ports - 8 x IEC-C13
Packaging data - Cables included - Input power cable, USB cable
Packaging data - Quick installation guide - Yes
Packaging data - Rack mount kit - Yes
Packaging data - Resource CD - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 10 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler, C20 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - USB 2.0 ports quantity - 1
producer - APC
Producer - APC
ProducerCode - SMX2200HVNC
ProductName - Smart-UPS X 2200VA
Rack height (units) - 4
ShortDescription -
ShortSummaryDescription - APC Smart-UPS X 2200VA, Line-Interactive, 2.2 kVA, 1980 W, Sine, 140 V, 280 V
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 7
Storage temperature range (T-T), °C - -15 - 45
Storno - N
Surge energy rating, J - 645
Technical details - Compliance certificates - RoHS
Title - APC Smart-UPS X 2200VA uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1980 W 10 AC outlet(s)
Transfer time (max) - 10 ms
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/shop/be/en/products/APC-Smart-UPS-X-2200VA-Short-Depth-Tower-Rack-Convertible-LCD-200-240V-with-Network-Card/P-SMX2200HVNC
vendpn - SMX2200HVNC
WarrantyInfo - 3 years repair or replace (excluding battery) and 2 years for battery
Weight - 38.6 kg
Weight - 45.000000
Weight & dimensions - Depth - 483 mm
Weight & dimensions - Height - 432 mm
Weight & dimensions - Package depth - 633 mm
Weight & dimensions - Package height - 330 mm
Weight & dimensions - Package weight - 47.6 kg
Weight & dimensions - Package width - 586 mm
Weight & dimensions - Weight - 38.6 kg
Weight & dimensions - Width - 178 mm
Weight, kg - 38.56
Width - 630.000000
Width, mm - 178
