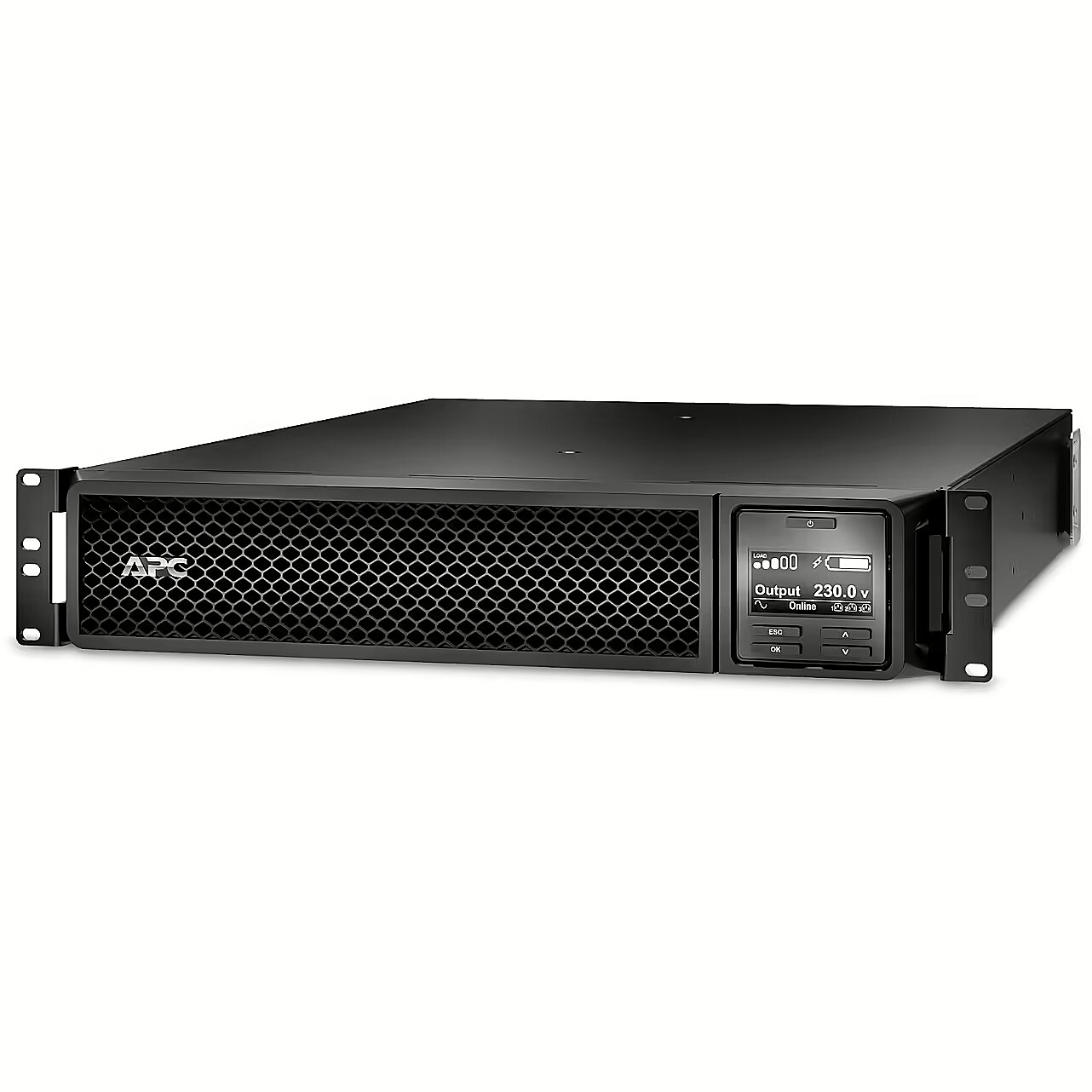

APC Smart-UPS SRT2200RMXLI-NC 2200VA, 1980W, IEC, 2U

Accessories included - - 1 x power cable - 2.44 m,
- 1 x serial cable - external,
- 1 x USB cable - external,
- Rack Mount Kit.
Active power - 1980 W
Alarm - Audible and visible alarms prioritized by severity
Apparent power - 2200 VA
ARTIKEL1 - SMART UPS SRT
ARTIKEL2 - 2200VA RM 230V IN
Backup time (100% load) - 3.9 min
Battery - Battery capacity - 367 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Number of batteries supported - 1
BatteryType -

Maintenance-free sealed Lead-Acid battery with suspended electrolyte

leakproof

Brand - APC
BrandPartCode - SRT2200RMXLI-NC
Breite - 0.6
Category - Uninterruptible Power Supplies (UPSs)
Certification - CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Charging time - 3 h
Chassis type - Rack
Color - Black
Connections - RJ-45 10/100 Base-T
Connections - RJ-45 Serial
Connections - SmartSlot
Connections - USB
Connectors - 1 x USB 2.0
Connectors - RJ-45
Connectors - SmartSlot
ControlPanel - Multi-function LCD status and control console
Depth - 584 mm
Depth, mm - 584
Description - APC Smart-UPS SRT 2200 VA, 230 V with AP9631 network card
Description - APC SMART-UPS SRT 2200VA RM 230V NETWORK CARD
Design - Cable length - 2.44 m
Design - Certification - CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Design - Display type - LCD
Design - Form factor - Rackmount
Design - International Protection (IP) code - IP20
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 2U
dimension depth - 246 mm
dimension height - 600 mm
Dimensions - 43.2 cm x 58.4 cm x 8.5 cm (width x depth x height)
dimension weight - 34000 g
dimension width - 810 mm
ean - 731304327561
EANCode - 0731304327561
Environment requirements - - Minimum operating temperature 0 ° C,
- Max. Operating temperature 40 ° C,
- humidity 0 - 95% (non-condensing).
Features - Audible alarm(s) - Yes
Features - Crest factor - 3:1
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 40 - 70 Hz
Features - Input operation voltage (max) - 275 V
Features - Input operation voltage (min) - 160 V
Features - Noise level - 55 dB
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 1980 W
Features - Output power capacity - 2.2 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 2%
Features - Surge energy rating - 340 J
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
FormFactor - Rack
Form factor - Rack
Frequency range, Hz - 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Gewicht - 29.94
GrossWeight - 34.000 kg
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304327561
GTIN - 0731304327561
guarantee - 36
guarantee_type - external
Height - 85 mm
Height - 600.000000
Height, mm - 85
HERSTELLER - APC
Hoehe - 0.25
Hold-up time (maks) - 0 s
HSTNUMMER - SRT2200RMXLI-NC
Input connection - IEC-320 C20
InputConnections -

British BS1363A

IEC-320 C20

Schuko CEE 7/EU1-16P

InputFrequency - 40 - 70 Hz (auto sensing)
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C20
InputVoltage - 230 V
InterfacePorts -

RJ-45 10/100 Base-T

RJ-45 Serial

Smart-Slot

USB

Laenge - 0.82
Length - 250.000000
Logistics data - Harmonized System (HS) code - 85078000
LongDesc -
LongDesc - Save time with easy and convenient remote accessibility.Network manageable via serial, USB or optional Ethernet. Includes Powerchute Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.Low operating and maintenance costs with proven reliability and intelligent battery management.Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.Avoids costly power problems by keeping your IT equipment and data protected and available.Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.Peace of mind that comes with full equipment compatibility and reliability of a leaderProvides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
LongProductName - APC Smart-UPS SRT 2200VA RM 230V Network Card
LongSummaryDescription - APC SRT2200RMXLI-NC. UPS topology: Double-conversion (Online), Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, AC outlets quantity: 12 AC outlet(s), Serial interface type: RJ-45. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 367 VAh, Battery life (max): 5 year(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 432 mm, Depth: 584 mm, Height: 85 mm
Manufacturer - APC
ManufacturerPartNumber - SRT2200RMXLI-NC
MANUFDATASHEET - https://www.apc.com/shop/au/en/products/APC-Smart-UPS-SRT-2200VA-RM-230V-Network-Card/P-SRT2200RMXLI-NC?isCurrentSite=true
name - SRT2200RMXLI Smart-UPS S RT2200VA/1980W 230V Rack NMC
No. of batteries - 1
Noise level, dB - 55
Nominal input voltage, V - 230 (220, 240)
Nominal output voltage, V - 230 (220, 240)
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 50 °C
Other features -
Other features - Output voltage - 230 V

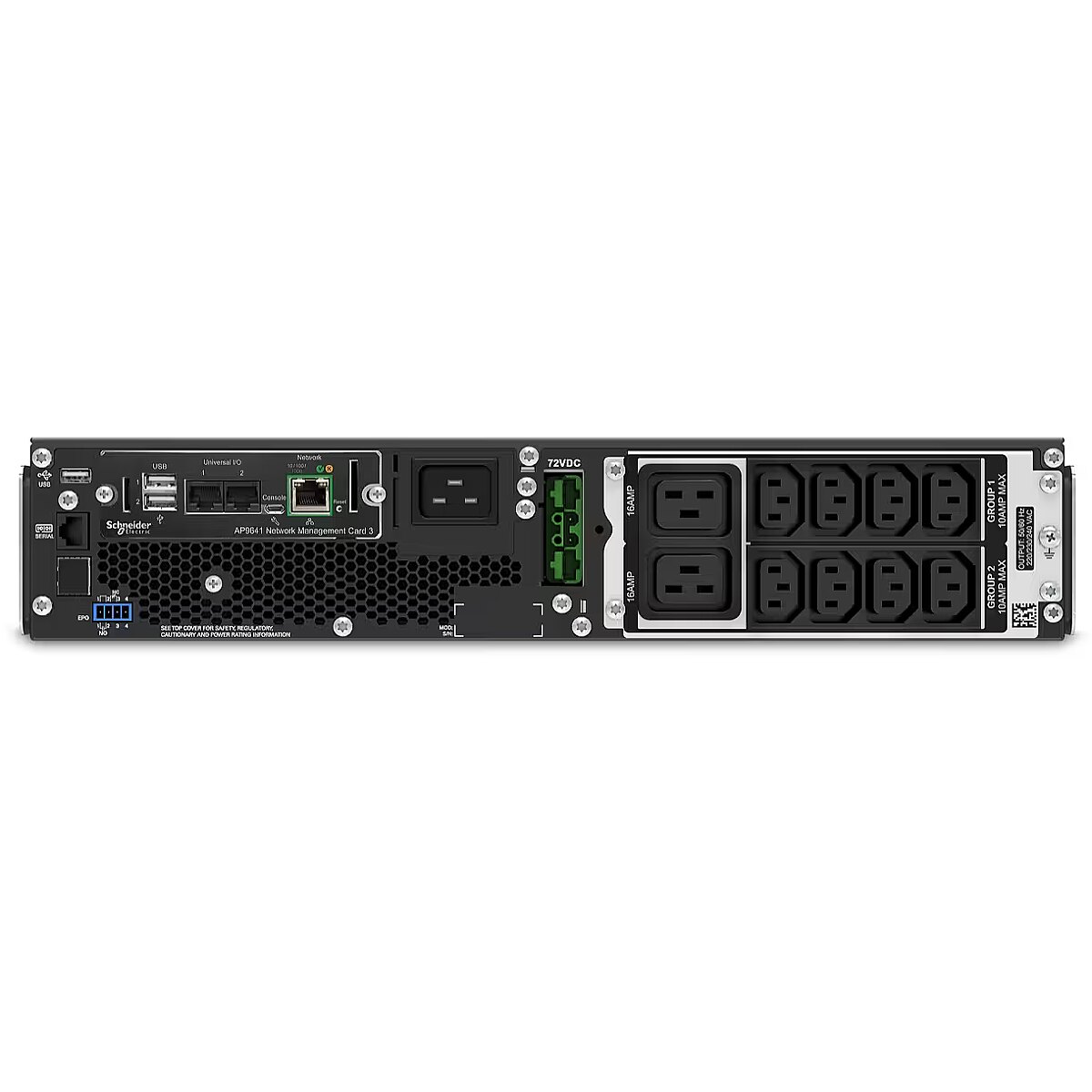

OutputConnections -

(2) IEC 320 C19 (Battery Backup)

(8) IEC 320 C13 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

OutputFrequency - 50/60Hz +/- 3 Hz
Output interface - 8 x IEC 320 C13, 2 x IEC 320 C18 2 x IEC Jumpers
Output power ports - 2 x IEC-C19
Output power ports - 8 x IEC-C13
OutputVoltage - 220 V, 240 V
PackageContents -

CD with software

Country-specific detachable power cord

Documentation CD

Installation guide

Network Management Card

Rack Mounting brackets

Rack mounting hardware

Rack Mounting support rails

USB cable

Warranty card

PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 12 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
PowerVAW - 2200 VA
PowerW - 1980 W
ProdDesc - APC Smart-UPS SRT RM 2200VA/1980W
producer - APC
ProductName - SRT2200RMXLI-NC
ProductPicture - http://www.tdbaltic.ee/images/ds4/SRT2200RMXLI-NC-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
RechargeTime - 3 h
RJ45 - Yes
Runtime - -
ShortSummaryDescription - APC SRT2200RMXLI-NC, Double-conversion (Online), 2.2 kVA, 1980 W, Sine, 160 V, 275 V
SmartSlot - Yes
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 8
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - ENERGY STAR, Green Premium
Title - APC SRT2200RMXLI-NC uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 1980 W 12 AC outlet(s)
Topology - Online
Transfer time (max) - 0 s
UPS Architecture - on-line double conversion
UPS devices and accessories - Yes
URL - https://www.apc.com/shop/uk/en/products/APC-Smart-UPS-SRT-2200VA-RM-230V-Network-Card/P-SRT2200RMXLI-NC?isCurrentSite=true#
USB - Yes
vendpn - SRT2200RMXLI-NC
Voltage - 230 V
Warranty - 3 years
WarrantyInfo -
WaveformType - Sine wave
Weight - 25 kg
Weight - 25.000 Kg
Weight - 45.000000
Weight & dimensions - Depth - 584 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Package depth - 810 mm
Weight & dimensions - Package height - 246 mm
Weight & dimensions - Package weight - 34 kg
Weight & dimensions - Package width - 599 mm
Weight & dimensions - Weight - 25 kg
Weight & dimensions - Width - 432 mm
Weight, kg - 25
Width - 432 mm
Width - 810.000000
Width, mm - 432
