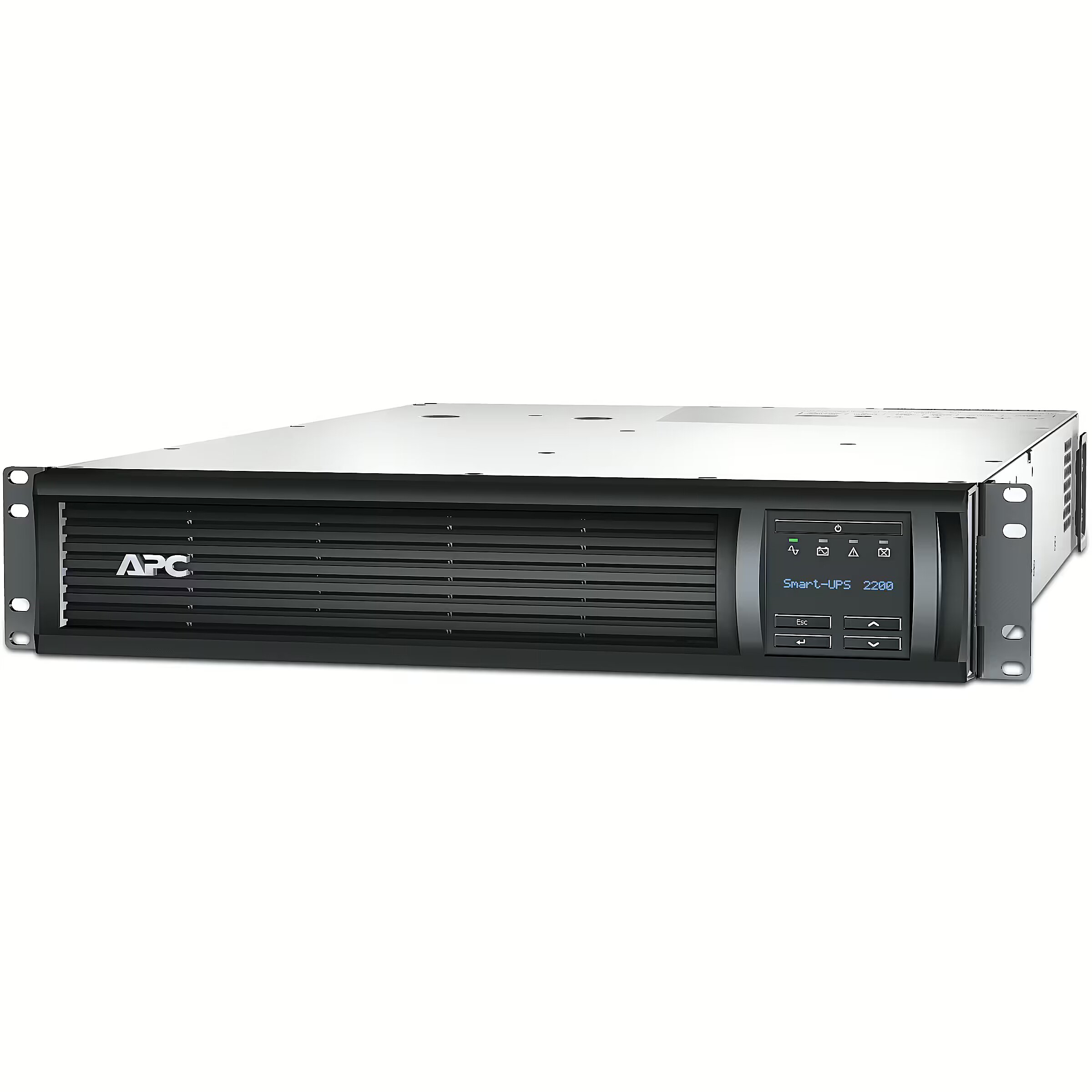

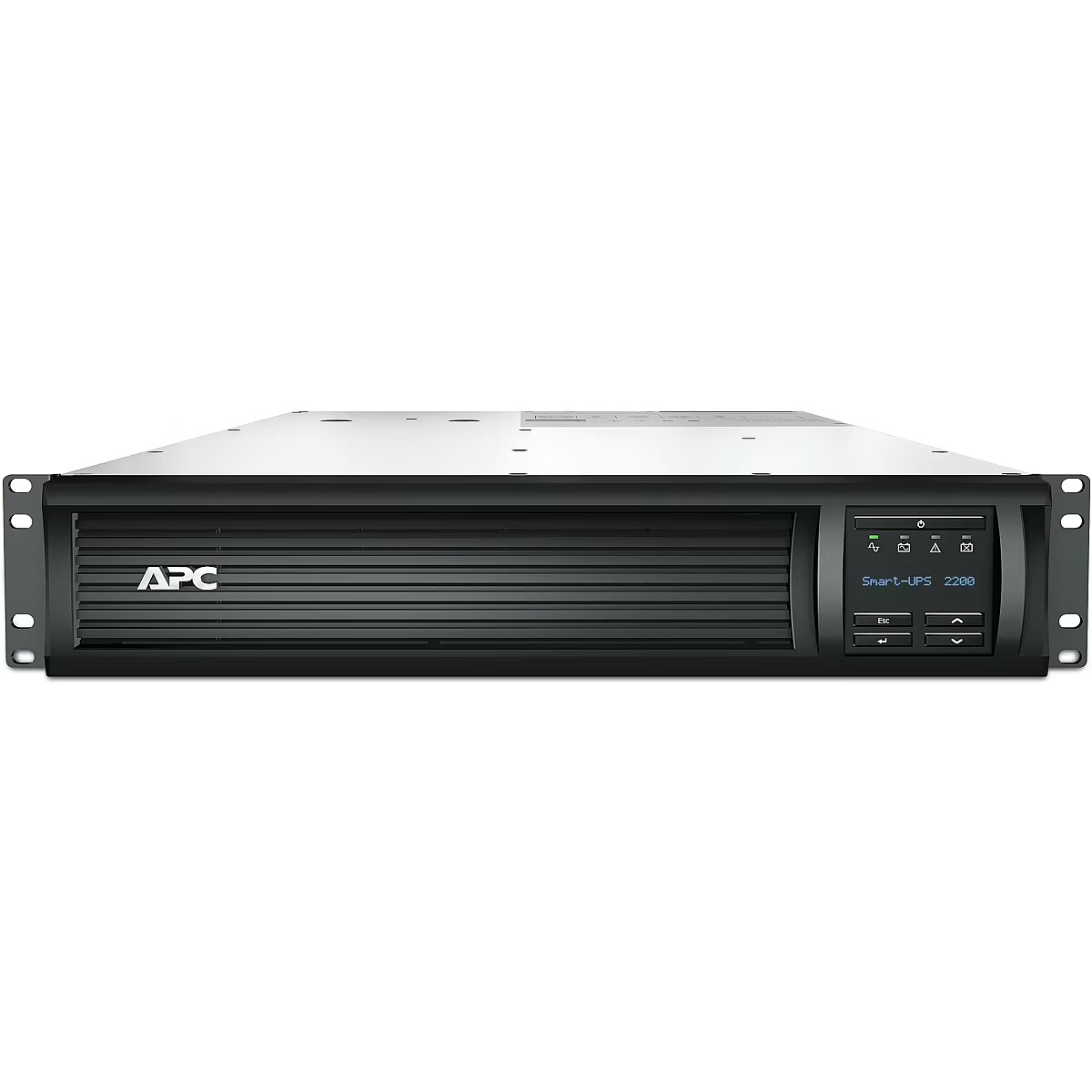

APC Smart-UPS SMT2200RMI2UNC 2200VA, 1980W, IEC, 2U

Accessories included -
Active power - 1980 W
Alarm - Alarm when on battery : distinctive low battery alarm : configurable delays
Apparent power - 2200 VA
ARTIKEL1 - SMT2200RMI2U + NC
ARTIKEL2 - .
Battery - Automatic battery test - Yes
Battery - Battery capacity - 509 Ah
Battery - Battery recharge time - 5 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery capacity - 509 VAh
Battery recharge time, h - 3
BatteryType -

Maintenance-free sealed Lead-Acid battery with suspended electrolyte

leakproof

Brand - APC
BrandPartCode - SMT2200RMI2UNC
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certificates - Certification - CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Certificates - Compliance certificates - RoHS
Certification - C-tick, CE, EN 60950, EN/IEC 62040-1-1, EN/IEC 62040-2, GOST, GS Mark, IRAM, VDE, WEEE
Charging time - 3 h
Chassis type - Rack
Color - Black
Connections - RJ-45 10/100 Base-T
Connections - Smart-Slot
Connections - USB
ControlPanel - LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Depth - 683 mm
Depth, mm - 683
Description - APC SMART-UPS 2200VA LCD RM 2U 230V WITH NETWORK CARD
Description - Możliwość zimnego startu
Tymczasowe zasilanie akumulatorowe w czasie zaniku zasilania sieciowego.
Licznik energii
Informuje o rzeczywistej liczbie pobranych kilowatogodzin.
Tryb ekologiczny
Tryb pracy (rozwiązanie objęte zgłoszeniem patentowym), w którym w wypadku dobrej jakości zasilania zewnętrznego niektóre podzespoły zasilacza są pomijane, co zapewnia wysoką sprawność przy zachowaniu pełnej ochrony.
Wysoka sprawność online
Niższe koszty i mniejsza emisja ciepła.
Intuicyjny interfejs z wyświetlaczem LCD
Dostarcza przejrzystych i precyzyjnych informacji w wielu językach, umożliwia też lokalne konfigurowanie zasilacza UPS za pomocą klawiszy nawigacyjnych.
Prognoza daty wymiany akumulatora
Dostarcza dynamicznie aktualizowanych informacji o zalecanym terminie wymiany akumulatorów (miesiąc i rok), wspomagając długoterminowe planowanie utrzymania infrastruktury.
Fabrycznie zainstalowana karta zarządzająca Network Management Card
Gotowe do użytku rozwiązanie do zdalnego zarządzania i sterowania zasilaczem UPS za pośrednictwem sieci.
Czysty wyjściowy przebieg sinusoidalny przy zasilaniu z akumulatora
Symuluje zasilanie sieciowe w celu zapewnienia jak największej zgodności z serwerami z aktywnie korygowanym współczynnikiem mocy obciążenia oraz wrażliwymi urządzeniami elektronicznymi.
Pojedyncza zarządzana grupa gniazd wyjściowych
Pojedynczą grupą gniazd można niezależnie sterować z zasilacza UPS, co pozwala na selektywne restartowanie zawieszonych urządzeń, programowanie sekwencji włączania/wyłączania oraz czasowe wyłączanie obciążeń nienewralgicznych.
Gniazdo typu SmartSlot
Dostosuj właściwości UPS-a za pomocą kart do zarządzania.
Ładowanie akumulatorów dostosowane do temperatury
Wydłużenie czasu eksploatacji akumulatorów przez regulację napięcia ładowania.
Design - Display type - LCD
Design - Form factor - Rackmount
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 2U
Designation - CE+WEEE
dimension depth - 250 mm
dimension height - 980 mm
Dimensions - 683 x 480 x 86mm
dimension weight - 51400 g
dimension width - 605 mm
ean - 731304327691
EAN - 0731304327691
EANCode - 0731304327691
Eans - 731304327691
Environment requirements -
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Battery replacement
Features - Auto-restart - Yes
Features - Emergency Power Off (EPO) - O
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 302 V
Features - Input operation voltage (min) - 151 V
Features - Noise level - 55 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 1980 W
Features - Output power capacity - 2.2 kVA
Features - Response time - 4 ms
Features - Surge energy rating - 375 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Features - Web-based management - Yes
FormFactor - Rack
Form factor - Rack
Frequency range, Hz - 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
GrossWeight - 25.000 kg
Gross Weight Kg - 49,63
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304327691
GTIN - 0731304327691
guarantee - 36
guarantee_type - external
Height - 86 mm
Height - 590.000000
Height, mm - 86
HERSTELLER - APC
Hold-up time (maks) - 4 ms
HSTNUMMER - SMT2200RMI2UNC
I/O connectors - 1 x RJ-45 (iLO Remote Management Network)
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x USB 2.0
I/O connectors - 3 x RJ-45 LAN
Input connection - IEC-320 C20, Schuko CEE 7 / EU1-16P
InputConnections -

IEC-320 C20

Schuko CEE 7 / EU1-16P

British BS1363A

InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C20
InputVoltage - 230 V
Input voltage, V - 160 - 286 (151 - 302)
InterfacePorts -

RJ-45 10/100 Base-T

RJ-45 Serial

Smart-Slot

USB

Length - 250.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 8 pc(s)
Logistics data - Total carbon footprint (kg of CO2e) - 3327.3
LongDesc -

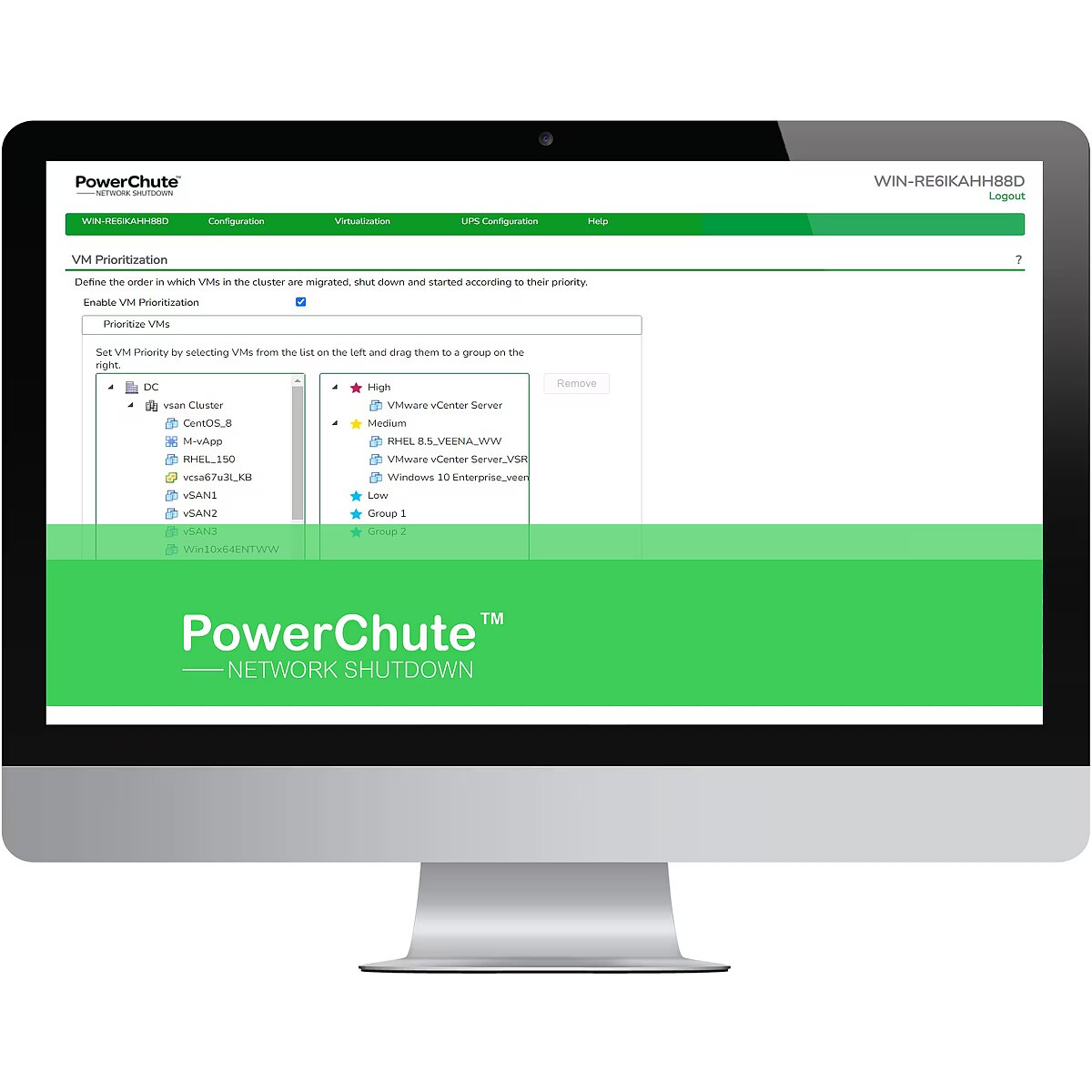

LongDesc - Stay always online and prevent data lossAs soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the APC PowerChute Network Shutdown software, you can even have critical IT hardware shut down automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware.SafetyIn addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.Battery lifeYou can easily read the expected battery life in the runtime graph, which you can find between the product images. This makes it easy to see how long the UPS will supply emergency power at a certain load.Manage your Smart-UPSThanks to the pre-installed network card (ap9641), you can easily connect the APC UPS to the network. This allows you to monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software.PowerChute Network ShutdownPowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, but also hyperconverged and virtual infrastructure*. In the event of a power failure, PowerChute can shut down your virtual machines correctly and the pre-configured boot sequence ensures that they are turned back on.*For HCI and virtual machine support an additional license is required:1 year: SWPCNS1Y-DIGI3 years: SWPCNS3Y-DIGI5 years: SWPCNS5Y-DIGIRemote management and monitoring of your networkThe network card can be managed remotely via the user-friendly web browser interface, remote management software EcoStruxure™ IT (SFTWES1-DIGI) or another SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionalities of the support contract below.Support contractThe optional network card support contract license* ensures that you are always up-to-date and secure and includes additional benefits such as frequent updates with:• New and improved functions• Security updates• Advanced support(The functionality of the support contract is included free of charge in the first year of the UPS)*The above license and available in the variants:1 year: SWNMC3SU-1Y-DIGIUp to (Replace the bold number in the article number with the desired variant)6 years: SWNMC3SU-6Y-DIGIEase of useThe basic functionalities can be set and read using physical buttons and an LCD screen. Thanks to the included 4-post rail kit, you can easily mount the UPS in a rack.Extend the lifespanThe internal battery cartridge (RBC43) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMT2200RMI2UNC or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always stays online.Warranty extensionThe factory warranty of the SMT2200RMI2UNC is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-04).Switched Outlet Groups: Remote reboot and phased start-upThanks to the Switched Outlet Groups it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS.It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. If SmartConnect Advanced (ERWPLUS1-1Y-DIGI), a UPS with SmartConnect port + Ecostruxure IT Expert (SFTWES1-DIGI) or a network card (ap9640) in combination with Ecostruxure IT Expert (SFTWES1-DIGI) are used, this can even be done remotely.This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C20 input, BS1363A British and Schuko CEE 7/EU1-16P input cables, 8x IEC 320 C13 and 1x IEC 320 C19 outlets, and 3x IEC jumper cables. It has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
LongProductName - Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 230V, 8x IEC C13+2x IEC C19 outlets, Network Card, AVR, LCD
LongSummaryDescription - APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 230V, 8x IEC C13+2x IEC C19 outlets, Network Card, AVR, LCD. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C20 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 509 Ah, Battery recharge time: 5 h. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Manufacturer - APC
Manufacturer Code - SMT2200RMI2UNC
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SMT2200RMI2UNC
MANUFDATASHEET - https://www.apc.com/shop/bw/en/products/APC-Smart-UPS-2200VA-LCD-RM-2U-230V-with-Network-Card/P-SMT2200RMI2UNC
Maximum power, W - 1980
MPN - SMT2200RMI2UNC
Name - APC Smart-UPS Rack 2HE SMT2200RMI2UNC 2200VA 1980W inkl. Netzwerkmanagementkarte
Name - APC Smart SMT2200RMI2UNC
name - SMT2200RMI2UNC SMART-UPS 2200VA/1980W Rack 2U with network card AP9631
No. of batteries - 1
Noise level, dB - 55
Nominal input voltage, V - 230 (220, 240)
Nominal output voltage, V - 230 (220, 240)
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -
Other features - Output voltage - 230 V

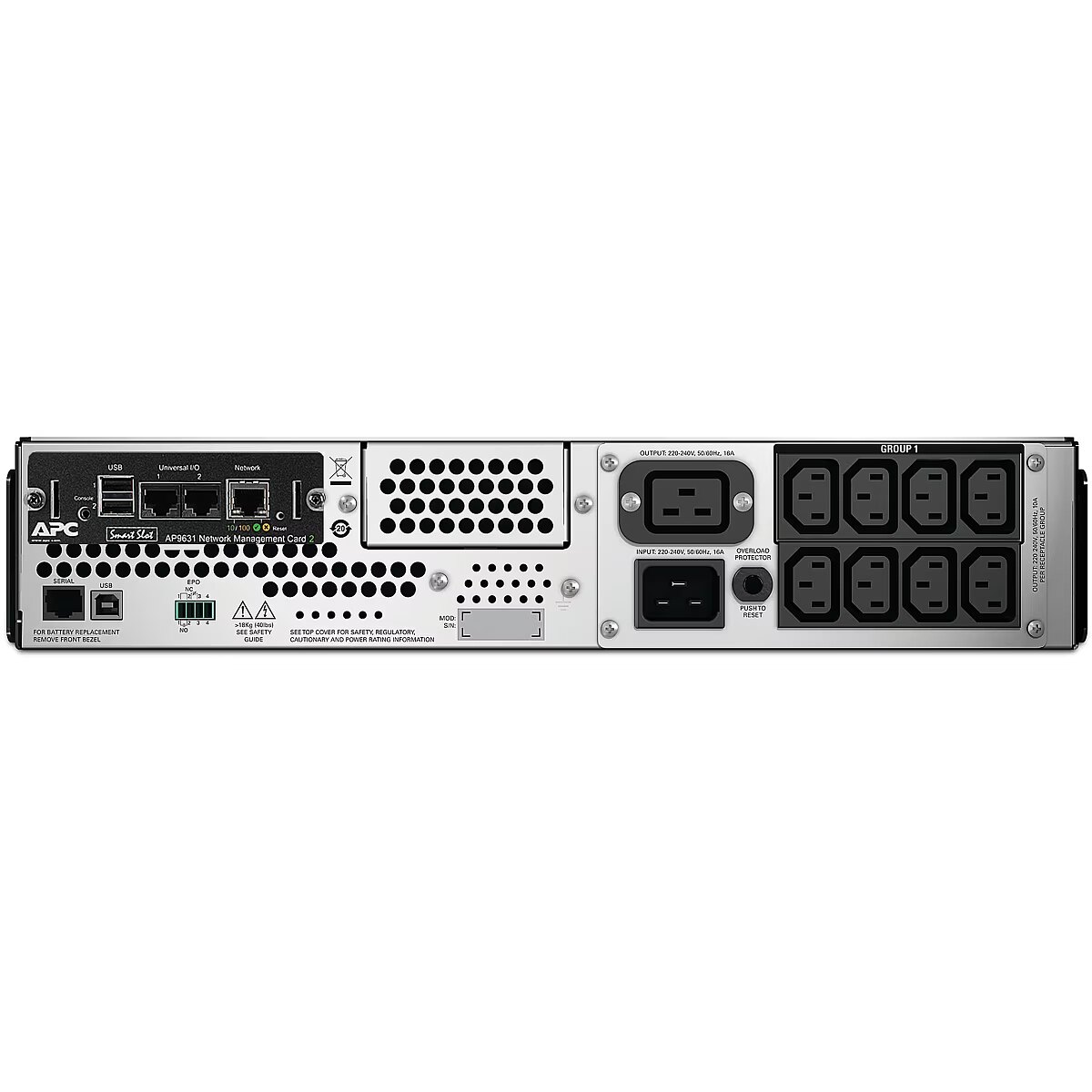

OutputConnections -

(1) IEC 320 C19 (Battery Backup)

(3) IEC Jumpers (Battery Backup)

(8) IEC 320 C13 (Battery Backup)

OutputFrequency - 50/60Hz +/- 3 Hz
Output interface - 8 x IEC 320 C13, 1 x IEC 320 C19, 2 x IEC Jumpers
Output power, W - 1980
Output power capacity (VA) - 2200
Output power ports - 1 x IEC-C19
Output power ports - 8 x IEC-C13
OutputVoltage - 230 V
PackageContents -

CD with software

Documentation CD

Installation guide

Rack mounting hardware

Rack Mounting support rails

Smart UPS signalling RS-232 cable

Temperature Probe

USB cable

Packaging content - Cables included - Input power cable, USB cable
Packaging content - Quick installation guide - Yes
Packaging content - Rack mount kit - Yes
Packaging data - Package depth - 980 mm
Packaging data - Package height - 254 mm
Packaging data - Package weight - 49.6 kg
Packaging data - Package width - 600 mm
Packaging data - Resource CD - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 9 AC outlet(s)
Ports & interfaces - AC outlet types - C20 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - USB 2.0 ports quantity - 1
PowerVAW - 2200 VA
PowerW - 1980 W
ProdDesc - APC Smart-UPS 2200VA LCD RM 2U 230V with Network Card
producer - APC
Producer - APC
ProducerCode - SMT2200RMI2UNC
ProductName - Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 230V, 8x IEC C13+2x IEC C19 outlets, Network Card, AVR, LCD
ProductPicture - http://www.tdbaltic.ee/images/ds4/SMT3000RMI2UNC-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
Rack height (units) - 2
RechargeTime - 3 h
RJ45 - Yes
Runtime - -

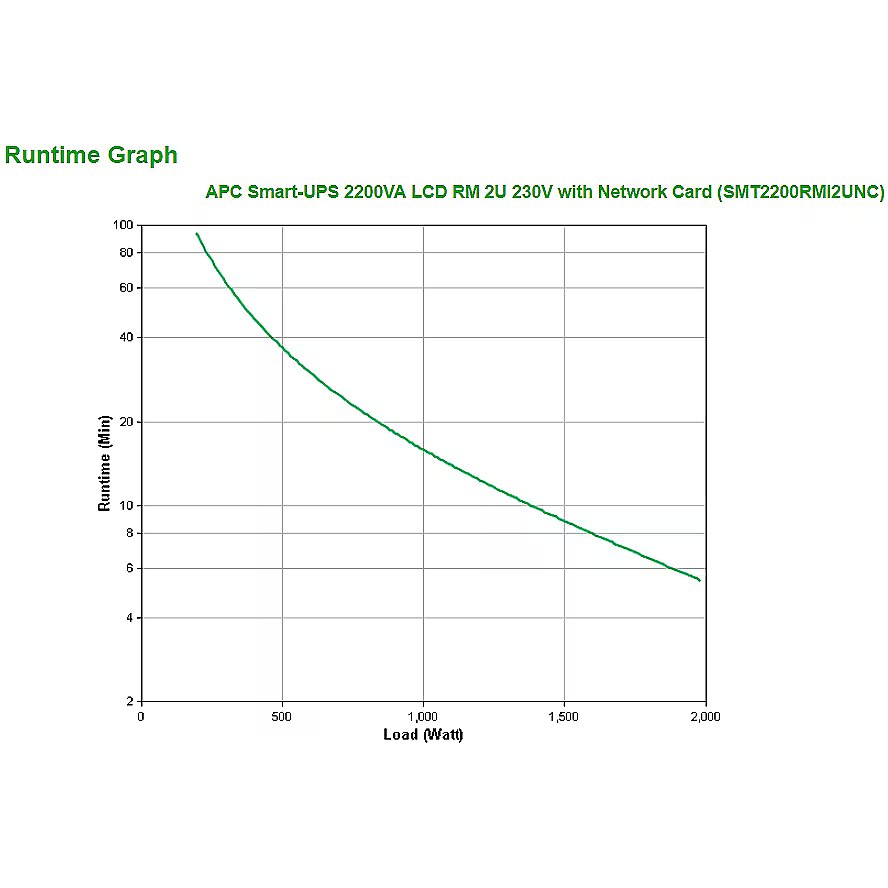

Runtime - 5 min (full load) / 16 min (half load)
ShortDescription -
Short description - APC Smart-UPS 2200 VA LCD RM SMT2200RMI2UNC
ShortSummaryDescription - APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 230V, 8x IEC C13+2x IEC C19 outlets, Network Card, AVR, LCD, Line-Interactive, 2.2 kVA, 1980 W, Sine, 151 V, 302 V
SmartSlot - Yes
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 8
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 375
Sustainability - Sustainability certificates - Green Premium
Title - APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 230V, 8x IEC C13+2x IEC C19 outlets, Network Card, AVR, LCD
Topology - Line interactive
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/
USB - Yes
vendpn - SMT2200RMI2UNC
Warranty - 2 years
WarrantyInfo - 3 years repair or replace (excluding battery) and 2 years for battery
WaveformType - Sine wave
Weight - 42.22 kg
Weight - 42.220 Kg
Weight - 53.000000
Weight - 55
Weight & dimensions - Depth - 683 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 42.2 kg
Weight & dimensions - Width - 480 mm
Weight, kg - 42.31
Width - 480 mm
Width - 980.000000
Width, mm - 480
