Eaton 5P650I, 650VA 420W, IEC

Accessories included -
Active power - 420 W
Apparent power - 650 VA
Backup time (100% load) - 2 min
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category Code - UPW
Chassis type - Tower
Color - Black
Connectors - 1 x USB (Typ B)
Connectors - RS-232 (COM)
Description - Eaton 5P 650i VA - stackable version
New Eaton 5P is a new generation of UPS line-interactive power of 650 VA-1550 VA, with modern LCD equipped with a function of energy measurement. 5P is the ideal power supply for protection of IT equipment and network, such as servers, switches, routers and data storage devices, performed tower and rack-mounted.
Link to the specifications: http://powerquality.eaton.com/5P650i.aspx?CX=65
Description - Eaton 5P 650i VA Tower
Designation - CE+WEEE
Desktop/pedestal Mounting Type - Yes
dimension depth - 440 mm
dimension height - 230 mm
Dimensions - - Height: 230 mm
- Width: 150 mm
- Depth: 345 mm
Dimensions - 30 x 150 x 345mm
dimension weight - 9200 g
dimension width - 330 mm
ean - 743172042422
Eans - 743172042422
Environment requirements - - Operating Temperature: 0 to 35 degrees C
- Noise level:
Filters / protection - Overdischarge
Full Description Line - 420 Watts|650 VA|Topology LineInteractive|Input ports Single, IEC320 C14|Output power connector type IEC 320 C13|1xRS232|1xUSB|Desktop/pedestal
guarantee - 36
guarantee_type - external
Input ports - Single, IEC320 C14
Input power ports - IEC-C14
Name - Eaton 5P 650i
name - UPS 5P 650 Tower 5P650i 650VA/420W; RS232; USB
Number of phases input - 1 (230V)
Other features - - Input voltage without the use of batteries: 160-294V 47-70Hz
- Output voltage: 200/208/220/230 / 240V; 50/60 Hz

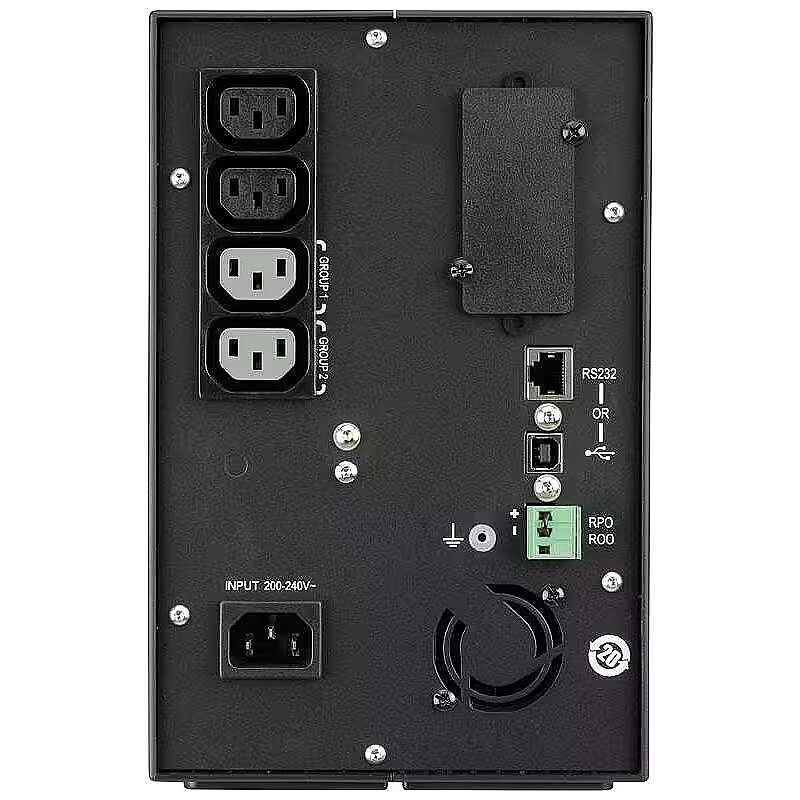

- Two groups of outlets 2 x IEC C13 (10A)
- Automatic battery test
- 1 mini terminal block for remote on. / Off. and the Remote Emergency Power Off
- 1 card slot Communication Network-MS, ModBus-MS, MS-Relay
Output power capacity, VA - 650 VA
Output power capacity, W - 420 Watts
Output power connector type - IEC 320 C13
Output power ports - 4 x IEC-C13
producer - Eaton
Producer - Eaton
ProducerCode - 5P650i
RS232 Communication ports - 1
Shipping Box Depth Shipping/Package Box Dimensions - 43 cm
Shipping Box Height Shipping/Package Box Dimensions - 32 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 9.1 kg
Shipping Box Width Shipping/Package Box Dimensions - 23 cm
ShortDescription -
Software -
Special functions - - Graphic LCD display (7 languages)
- Energy efficiency up to 98%
- Energy measurement
- Discontinuous charging
- Switchable group of outlets
- Sinusoidal waveform output
- Multiple communication options (compatible with virtual environments)
- Warranty 3 years electronics, 2 years on batteries
Topology - LineInteractive
Unit Box Height - 0.32
Unit Box Length - 0.43
Unit Box Width - 0.23
Unit Brutto Volume - 0.03165 cubm
Unit Gross Weight - 9.1 kg
Unit Net Weight - 7.8 kg
UPS Architecture - line-interactive
USB Communication ports - 1
Vendor Homepage - powerquality.eaton.com/5P650i.aspx?cx=66&GUID=55EA2F25-B096-484B-A82E-9D42FF238221
vendpn - 5P650i
Video -
Warranty - 24 months
Weight - 7.8 kg
