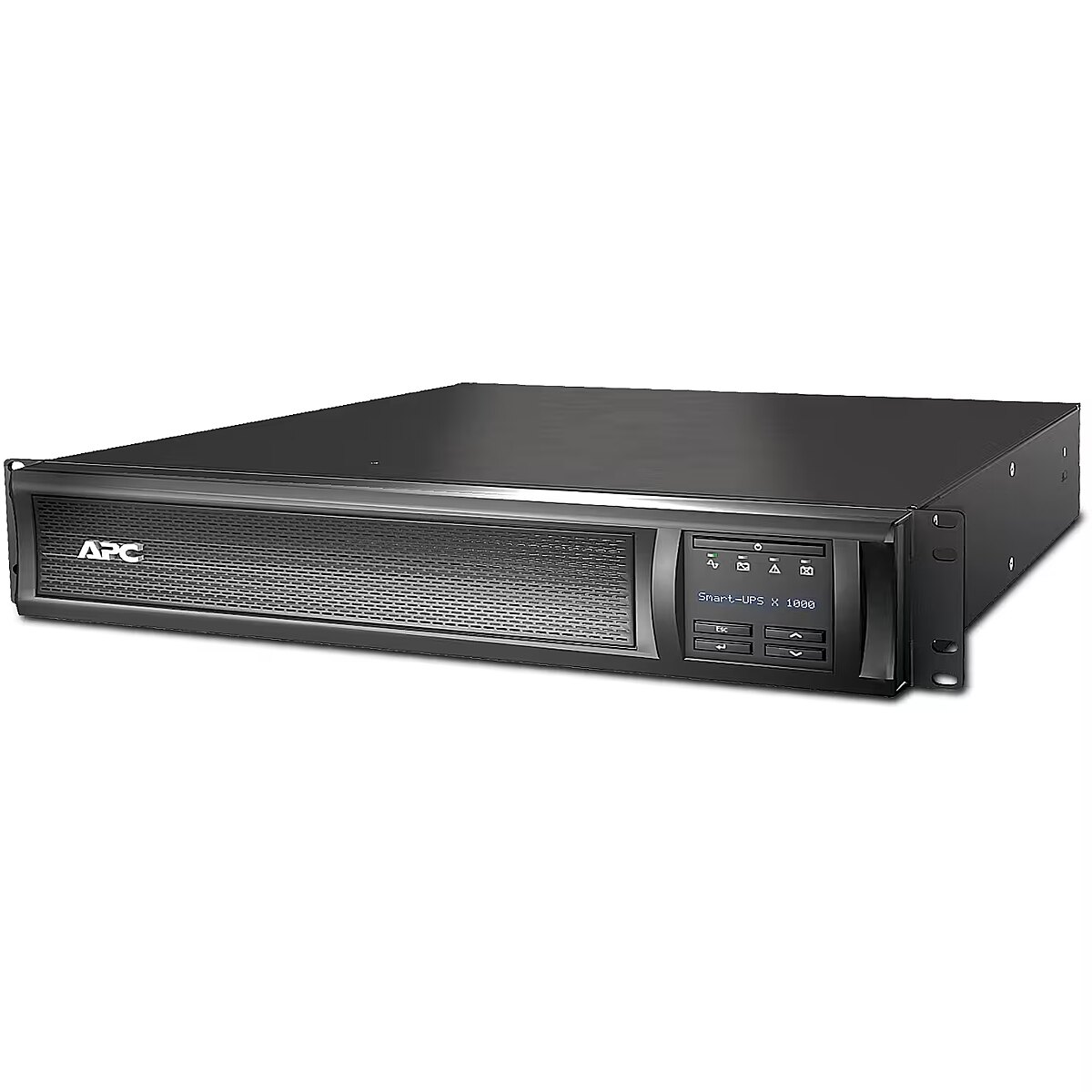

APC Smart-UPS X SMX1000I 1000VA, 800W, IEC, 2U

Accessories included - - CD with software
- Documentation CD
- Installation guide
- Rack Mounting brackets
- Removable support feet
- Smart UPS signalling RS-232 cable
- USB cable
Active power - 800 W
Alarm -

Alarm when on battery

distinctive low battery alarm

overload continuous tone alarm

Apparent power - 1000 VA
ARTIKEL1 - APC SMART-UPS X 1000VA
ARTIKEL2 - RACK/TOWER LCD 230V IN
Backup time (100% load) - 8.1 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 299 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - No
Battery - Typical backup time at full load - 8.1 min
Battery - Typical backup time at half load - 24.2 min
Battery recharge time, h - 3
BatteryType -

Maintenance-free sealed Lead-Acid battery with suspended electrolyte

leakproof

Brand - APC
BrandPartCode - SMX1000I
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certificates - Certification - CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI
Certificates - Compliance certificates - RoHS
Certification - C-tick, CE, EN 50091-1, EN 50091-2, VDE
Charging time - 3 h
Chassis type - Rack

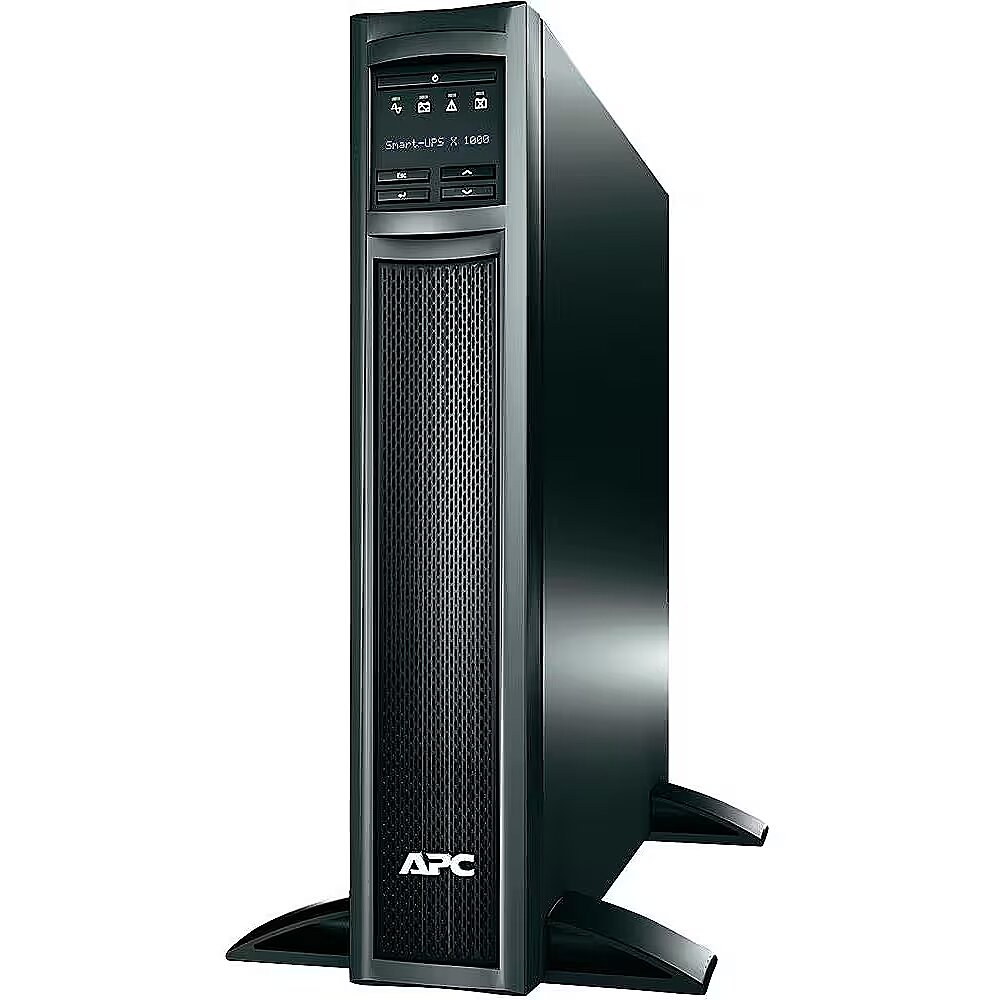

Chassis type - Tower
Color - Black
Connections - Smart-Slot
Connections - USB
Connectors - 1 x USB (Typ B)
Connectors - SmartSlot
ControlPanel - Multi-function LCD status and control console
Depth - 490 mm
Depth, mm - 490
Description - APC SMART-UPS X 1000VA RACK/TOWER LCD 230V
Description - APC Smart-UPS X 1000VA Rack/Tower LCD 230V
APC Smart-UPS, 800 Watts/1000 VA, Input 230V /Output 230V, Interface Port SmartSlot, USB, Extended runtime model, Rack Height 2 U
Design - Cable length - 1.83 m
Design - Form factor - Rackmount/Tower
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 2U
Designation - CE+WEEE
dimension depth - 600 mm
dimension height - 630 mm
Dimensions - - Height: 89 mm
- Width: 432 mm
- Depth: 490 mm
- Rack Height 2U
dimension weight - 26800 g
dimension width - 250 mm
ean - 731304268635
EAN - 0731304268635
EANCode - 0731304268635
Environment requirements - - Operating Environment: 0 - 45 °C
- Operating Relative Humidity: 0 - 95%
- Operating Elevation: 0-3000 meters
- Storage Temperature: -15 - 45 °C
- Storage Relative Humidity: 0 - 95%
- Storage Elevation: 0-15000 meters
- Audible noise at 1 meter from surface of unit: 40.00 dBA
- Online Thermal Dissipation: 82.00 BTU/hr
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Low battery alarm, Overload alarm
Features - Auto-restart - Yes
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Efficiency - 98.2%
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 302 V
Features - Input operation voltage (min) - 151 V
Features - Noise level - 40 dB
Features - Output frequency regulation - 50/60 Hz
Features - Output power - 800 W
Features - Output power capacity - 1 kVA
Features - Surge energy rating - 600 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Filters / protection - Overdischarge
Filters / protection - Overload
FormFactor -

Rack

Tower

Form factor - Rack / Tower
Frequency range, Hz - 50/60 +/- 3
Gewicht - 24.95
GrossWeight - 22.860 kg
Gross Weight Kg - 27,32
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304268635
GTIN - 0731304268635
guarantee - 36
guarantee_type - external
Height - 89 mm
Height - 242.000000
Height, mm - 89
HERSTELLER - APC
HSTNUMMER - SMX1000I
Input connection - IEC-320 C14
InputConnections - IEC-320 C14
InputFrequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input frequency, Hz - 50/60 +/- 3
Input power ports - IEC-C14
InputVoltage - 230V
Input voltage, V - 160 - 286 (151 - 302)
InterfacePorts - -
Length - 592.000000
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 8 pc(s)
Logistics data - Total carbon footprint (kg of CO2e) - 1153.31
LongDesc - Stay always online and prevent data lossAs soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the free APC PowerChute software, you can even have critical IT hardware shut down automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware.Extend the runtimeYou can easily increase the number of minutes that the APC SMX UPS can independently supply emergency power by connecting external battery packs (SMX48RMBP2U).A runtime of several hours is even possible.SafetyIn addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.Network Management CardIf you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can be easily managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software belonging to the network card, it is even possible to differentiate between the shutdown moment and the order in which this happens.Easy to useThis APC Smart-UPS SMX is easy to operate thanks to the LCD screen.Rack/tower convertibleThe APC Smart-UPS SMX is rack/tower convertible. Because both the feet and the front post rack brackets are included, you can mount it in a rack (2U) or place it upright. If you prefer to mount it on all four rack uprights, order the optional SU032A.Extend the lifespanThe internal battery cartridge (APCRBC116) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMX1000I or connected equipment. This allows you to easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment will always remain online.Warranty extensionThe factory warranty of the SMX1000I is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-02).Switched Outlet Groups: Remote reboot and phased start-upThanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS.It is also possible to reset a group of multiple UPS outlets and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely.You can also switch off non-critical loads; this extends the runtime for critical equipment.This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 2 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
LongDesc - APC Smart-UPS, 800 Watts / 1000 VA,Input 230V / Output 230V, Extended runtime model, Rack Height 2 U
LongProductName - APC Smart-UPS X SMX1000I - 1000VA, 8x C13 output, USB, expandable runtime
LongSummaryDescription - APC Smart-UPS X SMX1000I - 1000VA, 8x C13 output, USB, expandable runtime. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 800 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 299 VAh, Typical backup time at full load: 8.1 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI
Manufacturer - APC
Manufacturer Code - SMX1000I
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - SMX1000I
MANUFDATASHEET - http://www.apc.com/products/resource/include/techspec_index.cfm?base_sku=SMX1000I&tab=models
Maximum power, W - 800
MPN - SMX1000I
Name - APC Smart-UPS X Rack/Tower 2HE SMX1000I 1000VA 800W Line Interactive
name - SMX1000I SMART X 1000VA USB/SERIAL/LCD/RT 2U
No. of batteries - 1
Noise level, dB - 40
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - - Output Power: 800W
- Output voltage: 230V
- Distortion of the output voltage
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
Other features - Packaging content - Removable support feet
OutputConnections -

(8) IEC 320 C13

(2) IEC Jumpers

OutputFrequency - 47 - 63 Hz

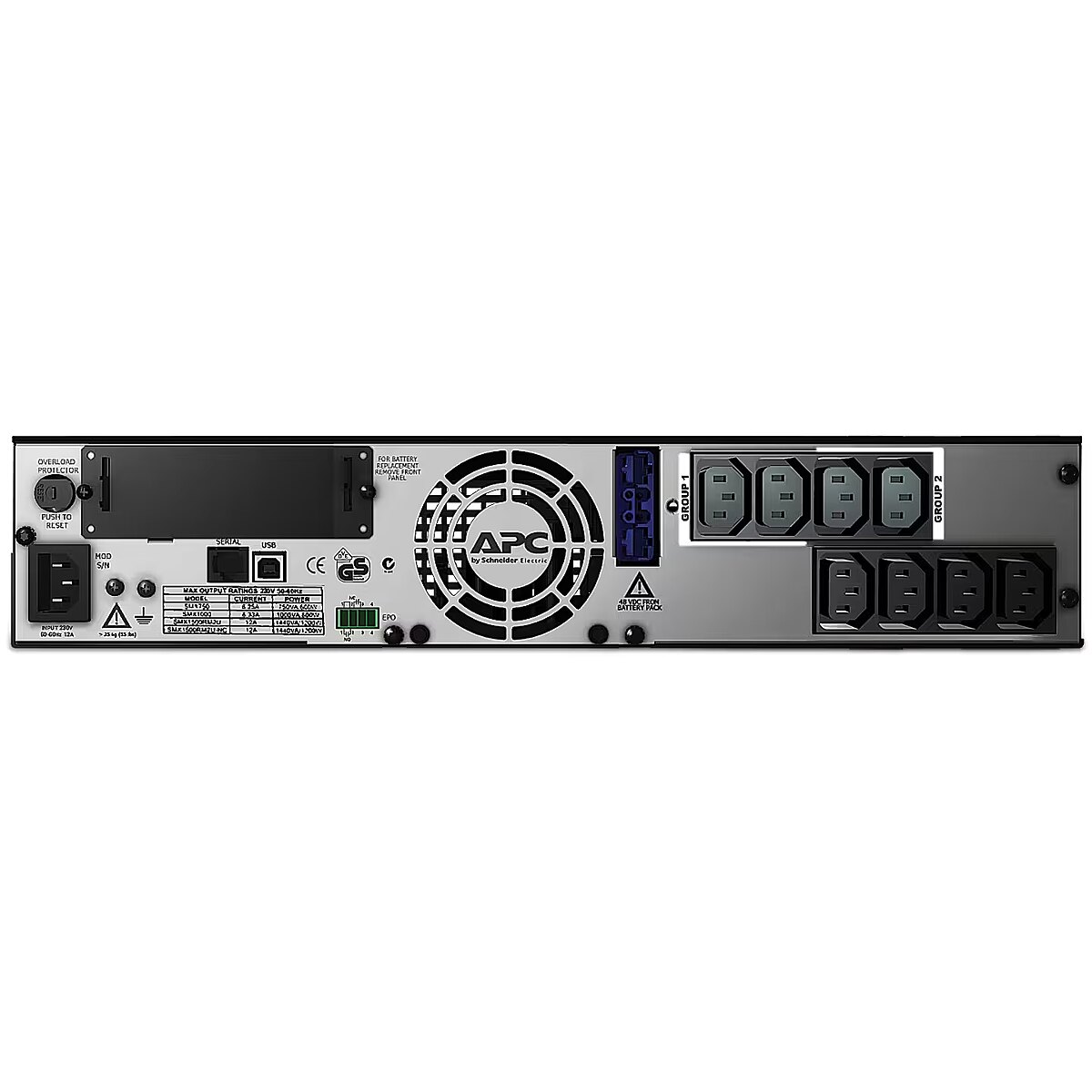

Output interface - 8 x IEC 320 C13, 2 x IEC Jumpers
Output power, W - 800
Output power capacity (VA) - 1000
Output power ports - 8 x IEC-C13
OutputVoltage - 230 V
PackageContents -

CD with software

Documentation CD

Installation guide

Rack Mounting brackets

Removable support feet

Smart UPS signalling RS-232 cable

USB cable

Packaging content - Cables included - RS-232, USB cable
Packaging content - Quick installation guide - Yes
Packaging content - Rack mount kit - Yes
Packaging data - Package depth - 620 mm
Packaging data - Package height - 246 mm
Packaging data - Package weight - 27.3 kg
Packaging data - Package width - 589 mm
Packaging data - Software CD - Yes
PeriodofWarranty - 3 Y
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
PowerVAW - 1000 VA
PowerW - 800 W
ProdDesc - APC Smart-UPS X 1000VA Rack/Tower LCD 230V
producer - APC
ProductName - APC Smart-UPS X SMX1000I - 1000VA, 8x C13 output, USB, expandable runtime
ProductPicture - http://www.tdbaltic.ee/images/ds/SMX1000I.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds/SMX1000I-2.jpg
ProductPicture3 - http://www.tdbaltic.ee/images/ds/SMX1000I-3.jpg
ProductPicture4 - http://www.tdbaltic.ee/images/ds/SMX1000I-4.jpg
Rack height (units) - 2
RechargeTime - 3 h
RJ45 - -
Runtime - 8 min (full load) / 24 min (half load)
Runtime - 24.2/8.1
Short description - APC Smart-UPS X 1000 VA LCD SMX1000I+++
ShortSummaryDescription - APC Smart-UPS X SMX1000I - 1000VA, 8x C13 output, USB, expandable runtime, Line-Interactive, 1 kVA, 800 W, Sine, 151 V, 302 V
SmartSlot - Yes
Software -
Special functions - - EPO
- High online efficiency
- Green mode
- High frequency design
- Energy meter
- Predictive replace battery date
- Intuitive LCD interface
- Auto recognition of external batteries
- Multiple switched outlet groups
- Pure sine wave output on battery
- Scalable runtime
- Cold-start capable
- Plug-and-Play external batteries
- Rack/Tower convertible
- SmartSlot
- Temperature-compensated battery charging
- Boost and Trim Automatic Voltage Regulation (AVR)
- Intelligent battery management
- Power conditioning
- Temperature-compensated battery charging
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Disconnected battery notification
- Network manageable
- Audible alarms
- LED status indicators
- Serial connectivity
- USB connectivity
- Disconnected battery notification
- User-replaceable batteries
- Hot-swappable batteries
- Predictive failure notification
- Resettable circuit breakers
- Battery failure notification
- Adjustable voltage-transfer points
- Adjustable voltage sensitivity
- Safety-agency approved
Stck_Kart - 1
Stck_Pal - 8
Storage temperature range (T-T), °C - -15 - 45
Storno - Y
Surge energy rating, J - 600
Sustainability - Sustainability certificates - Green Premium
Title - APC Smart-UPS X SMX1000I - 1000VA, 8x C13 output, USB, expandable runtime
Topology - Line interactive
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/
USB - Yes
vendpn - SMX1000I
Voltage - 48 V
Warranty - 3 years
WarrantyInfo - 3 years
WaveformType - Sine wave
Weight - 22.86 kg
Weight - 22.860 Kg
Weight - 25.94
Weight - 28.000000
Weight & dimensions - Depth - 490 mm
Weight & dimensions - Height - 89 mm
Weight & dimensions - Weight - 22.9 kg
Weight & dimensions - Width - 432 mm
Weight, kg - 22.86
Width - 432 mm
Width - 625.000000
Width, mm - 432
