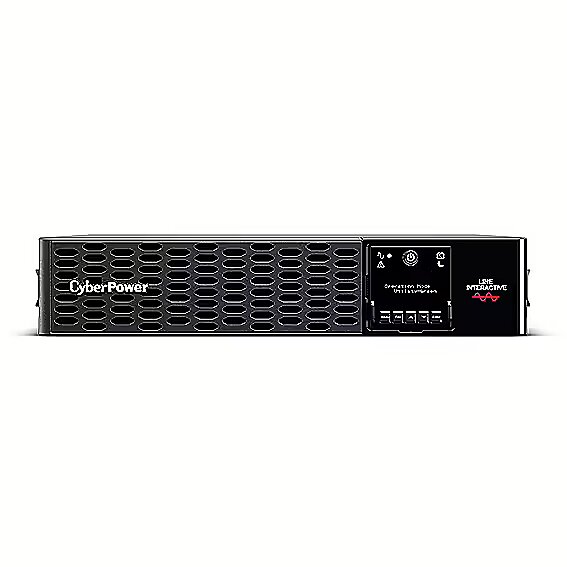

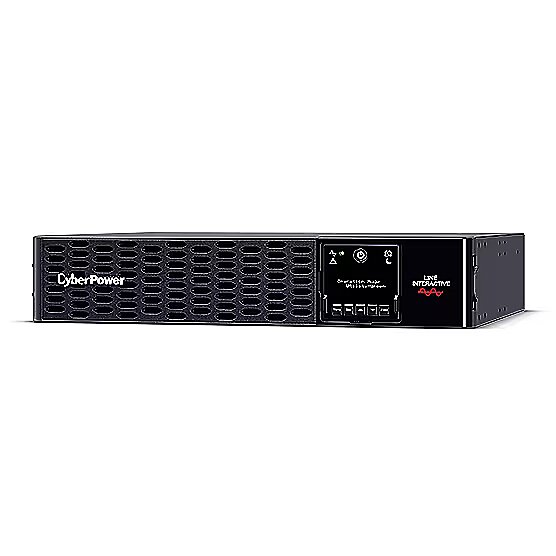

Cyber Power PR2200ERTXL2U, 2200VA 2200W, IEC 2U

Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Hot-swap battery - Yes
Battery - Number of batteries supported - 4
Battery - Typical backup time at full load - 3.2 min
Battery - Typical backup time at half load - 11.2 min
Brand - CyberPower
BrandPartCode - PR2200ERTXL2U
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Certification - CE , FCC Class B , UL , RCM , VCCI
Certificates - Compliance certificates - RoHS
Code - PR2200ERTXL2U
Design - Cable length - 2.4 m
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - Housing material - Metal
Design - LED indicators - Error, Operation
Design - Product colour - Black
Design - Rack capacity - 2U
EAN - 4712856277654
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm, Overload alarm
Features - Automatic Voltage Regulation (AVR) - Yes
Features - EMI/RFI noise filtering - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 288 V
Features - Input operation voltage (min) - 159 V
Features - Management protocols - SNMP/HTTP
Features - Maximum current - 16 A
Features - Noise level - 57.5 dB
Features - Number of input phases - 1
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 2200 W
Features - Output power capacity - 2.2 kVA
Features - Power Factor Correction (PFC) type - Active
Features - Power protection features - Overload
Features - Response time - 4 ms
Features - Surge energy rating - 2430 J
Features - Surge protection - Yes
Features - UPS topology - Line-Interactive
Features - Waveform - Pure sine
GTIN - 4712856277654
Link - https://www.cyberpower.com/eu/en/product/sku/pr2200ertxl2u
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 8504408590
LongDesc - CyberPower PR2200ERTXL2U with rackmount design guarantees power backup protection for home theater systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality. The UPS’s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. Two-phase battery charging can charge the battery quickly and safely. The hot-swappable battery packs allow for easy maintenance without power interruption. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.
LongProductName - Smart App UPS System, 2200 VA, 2200W, 2430 J, IEC C13 x 6, IEC C19 x 2, Sealed Lead-acid
LongSummaryDescription - CyberPower PR2200ERTXL2U. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 2200 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 3.2 min, Typical backup time at half load: 11.2 min. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Metal. Compliance certificates: RoHS, Certification: CE , FCC Class B , UL , RCM , VCCI
Name - CyberPower | Smart App UPS Systems | PR2200ERTXL2U | 2200 VA | 2200 W
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - Bypass - GreenPower UPS
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 620.00 mm
Package features > Gross height (mm) - 275 mm
Package features > Gross width (mm) - 560 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 18 pc(s)
Package features > Paper/Pasteboard - 4000 g
Package features > Plastic (No PET) - 240 g
Package features > Tare weight (kg) - 4.24 kg
Package features > Volume (m3) - 0.09548 m³
Package features > WEE classification - CL109:4:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - Serial, USB cable
Packaging data - Package depth - 620 mm
Packaging data - Package height - 275 mm
Packaging data - Package weight - 42.5 kg
Packaging data - Package width - 560 mm
Performance > Capacity - 2200 VA
Performance > UPS topology - Line-Interactive

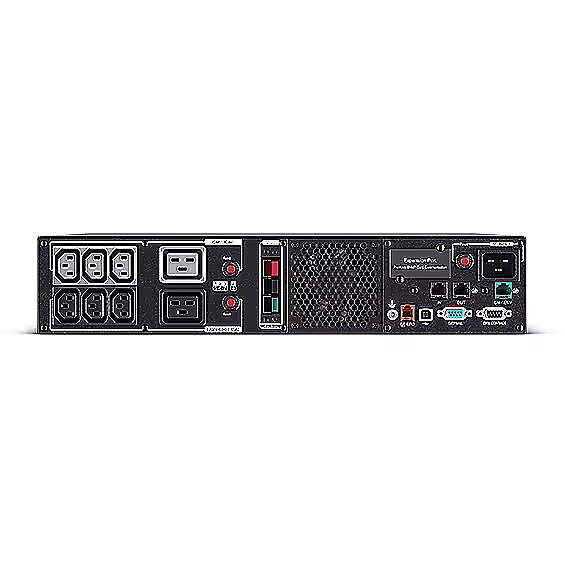

Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Emergency Power Off (EPO) connector - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - Serial ports quantity - 1
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Producer product family - Smart App UPS Systems
Producer product name - PR2200ERTXL2U
ProductName - PR2200ERTXL2U
ShortSummaryDescription - CyberPower PR2200ERTXL2U, Line-Interactive, 2.2 kVA, 2200 W, Pure sine, 159 V, 288 V
Sustainability - Sustainability certificates - ENERGY STAR
Technical details > Capacity - 2200 W
Technical details > Gross weight - 38.64 kg
Technical details > Net weight - 34.4 kg
Technical details > Producer - CyberPower
Title - CyberPower PR2200ERTXL2U uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 2200 W 8 AC outlet(s)
URL - https://www.cyberpower.com/ww/en/product/sku/pr2200ertxl2u#
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 500 mm
Weight & dimensions - Height - 86.5 mm
Weight & dimensions - Weight - 34.4 kg
Weight & dimensions - Width - 433 mm
