Accessories included - Operating temperature: full power up to 40°C (up to 50°C with derating) Storage temperature: - 15 to + 40 °C Relative humidity 0 95%, non-condensing Operating altitude up to 3,000 m (9,842.5 ft) at 25°C (77°F) without derating Noise audible below 55 dBA
Active power - 5000 W
Apparent power - 5 kVA
ARTIKEL1 - GXT5_UPS_5KVA_230V_5U_RT. W/
ARTIKEL2 - RMK. NIC
Battery - Battery capacity - 9 Ah
Battery - Battery recharge time (90%) - 5 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Battery voltage - 12 V
Battery - Hot-swap battery - Yes
Battery - Number of batteries supported - 16
Battery - Typical backup time at full load - 7 min
Battery - Typical backup time at half load - 18.5 min
Battery capacity - 9 Ah
Brand - Vertiv
BrandPartCode - GXT5-5000IRT5UXLN
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Certification - CE, EMI/EMC/C-Tick EMC, ESD
Certificates - Compliance certificates - RoHS
Charging time - 7 h
Chassis type - Rack
Chassis type - Tower
Color - Black

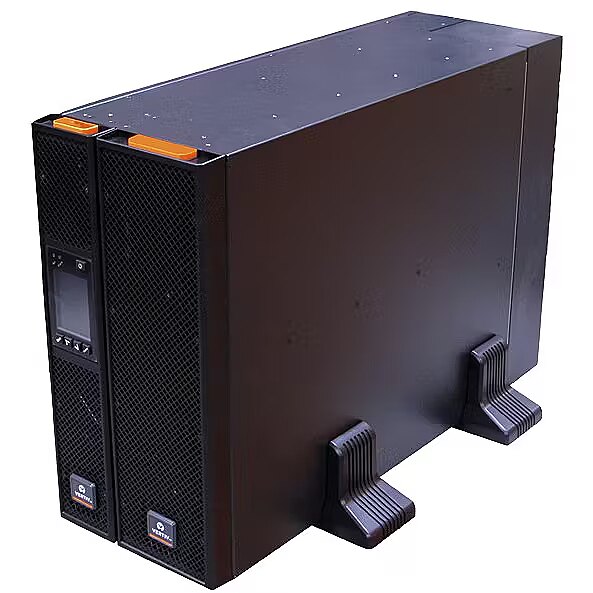

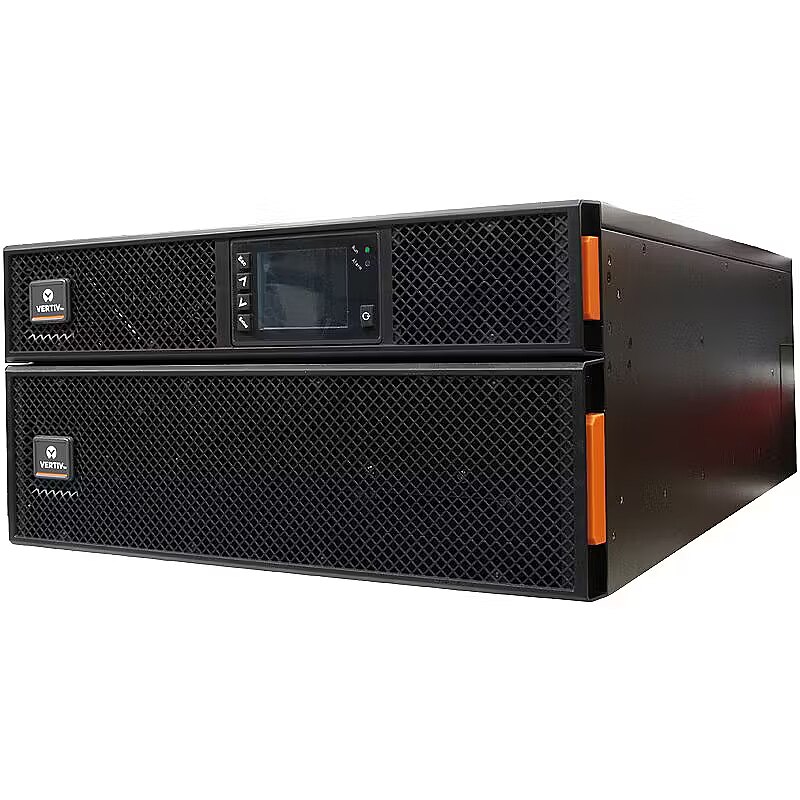

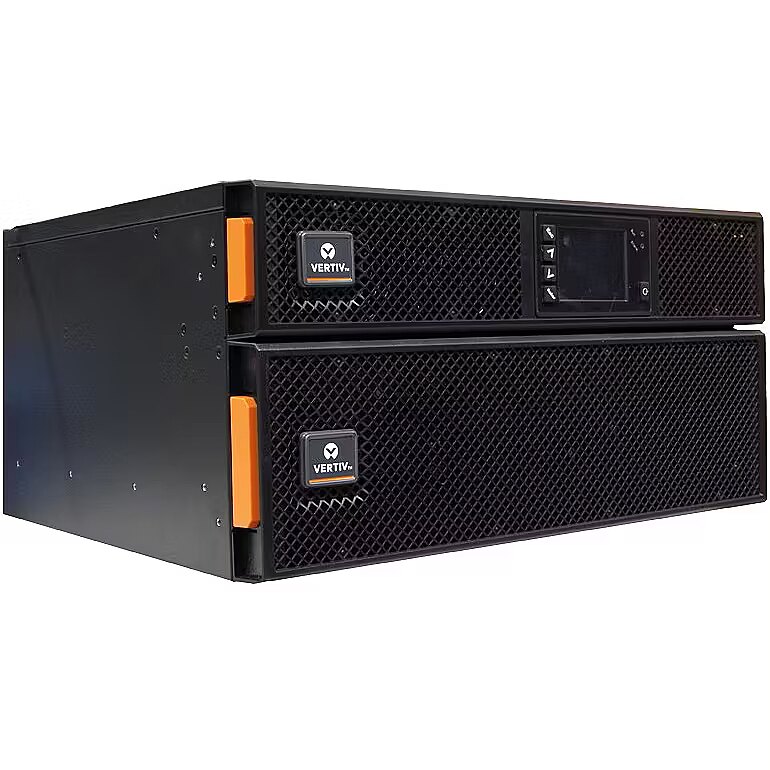

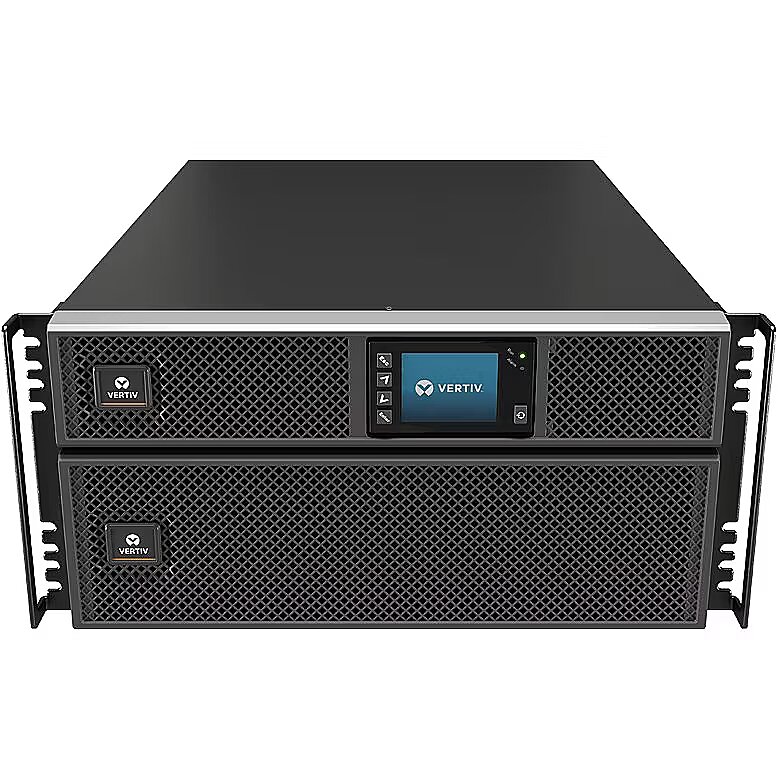

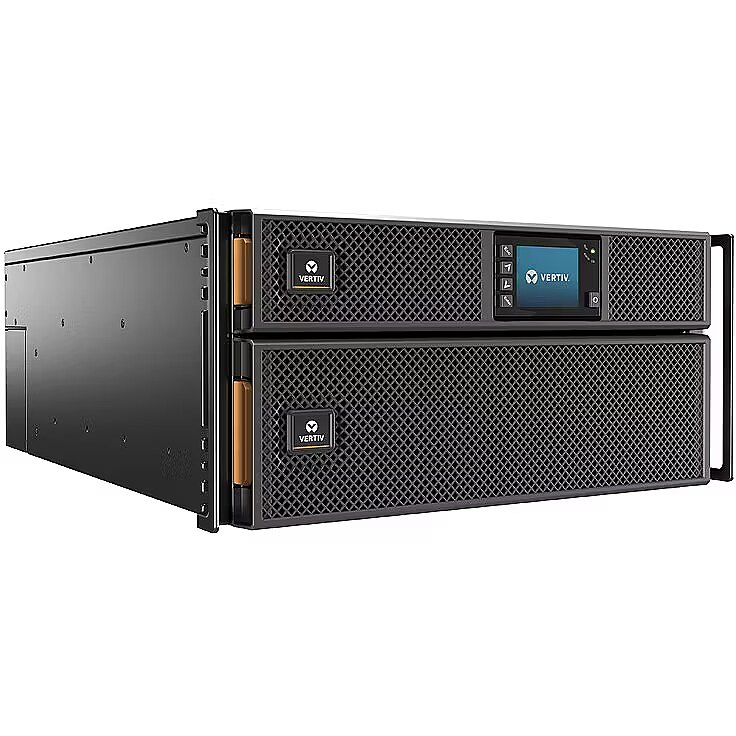

Description - UPS GXT5-5000IRT5UXLN 5000VA/5000W 230V Rack/Tower UPS with rails and communication card Liebert GXT5 is a compact and flexible online double conversion UPS offering high-class protection and continuous power conditioning. The power supply protects IT equipment against all types of interference caused by power failure, voltage drop, overvoltage or distortion.
Design - Cooling type - Active
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - International Protection (IP) code - IP20
Design - Product colour - Black
Design - Rack capacity - 5U
Designation - CE+WEEE
dimension depth - 620 mm
dimension height - 380 mm
Dimensions - 217 x 430 x 630 mm
dimension weight - 96000 g
dimension width - 810 mm
ean - 767041026634
EANCode - 0767041026634
Environment requirements -
Features - Audible alarm(s) - Yes
Features - Efficiency - 94%
Features - Efficiency (On-line mode) - 94%
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 288 V
Features - Input operation voltage (min) - 176 V
Features - Input power factor - 0.99
Features - Noise level - 55 dB
Features - Number of input phases - 1
Features - Number of output phases - 1
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 230 V
Features - Output power - 5000 W
Features - Output power capacity - 5 kVA
Features - Output power factor - 1
Features - Output voltage regulation - 3%
Features - Overload capacity (1 minute) - 150%
Features - Overload capacity (5 minute) - 125%
Features - Power factor - 1
Features - Power protection features - Overload
Features - Response time - 0 ms
Features - Single-phase input voltage supported - 200,208,220,230,240 V
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Pure sine
Filters / protection - Surge
Filters / protection - Voltage drop
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 767041026634
GTIN - 0767041026634
guarantee - 24
guarantee_type - external
HERSTELLER - VERTIV
HSTNUMMER - GXT5-5000IRT5UXLN
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x RS-485
I/O connectors - 1 x USB (Type B)
Input power ports - Wtyczka sieciowa
Logistics data - Harmonized System (HS) code - 85078000
LongDesc - The Liebert GXT5 UPS in an on-line double conversion USP solution which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system. This single phase UPS operates with a high power efficiency and it is ideally suited to protect critical infrastructure in both centralized and edge of network applications.
LongProductName - GXT5 UPS - 6000VA/6000W, 230 V, Rack/Tower Mountable, Energy Star, Online Double Conversion, 5U, Color/Graphic LCD, 2-Year Warranty, Optional RDU101 Card
LongSummaryDescription - Vertiv Liebert GXT5 UPS - 6000VA/6000W| 230V| Rack/Tower Mountable| Energy Star| Online Double Conversion| 5U| Color/Graphic LCD| 2-Year Warranty. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 5000 W. AC outlet types: C13 coupler, C19 coupler, IEC 320, Terminal, Power plug: Terminal, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 5U. Compliance certificates: RoHS, Certification: CE, EMI/EMC/C-Tick EMC, ESD

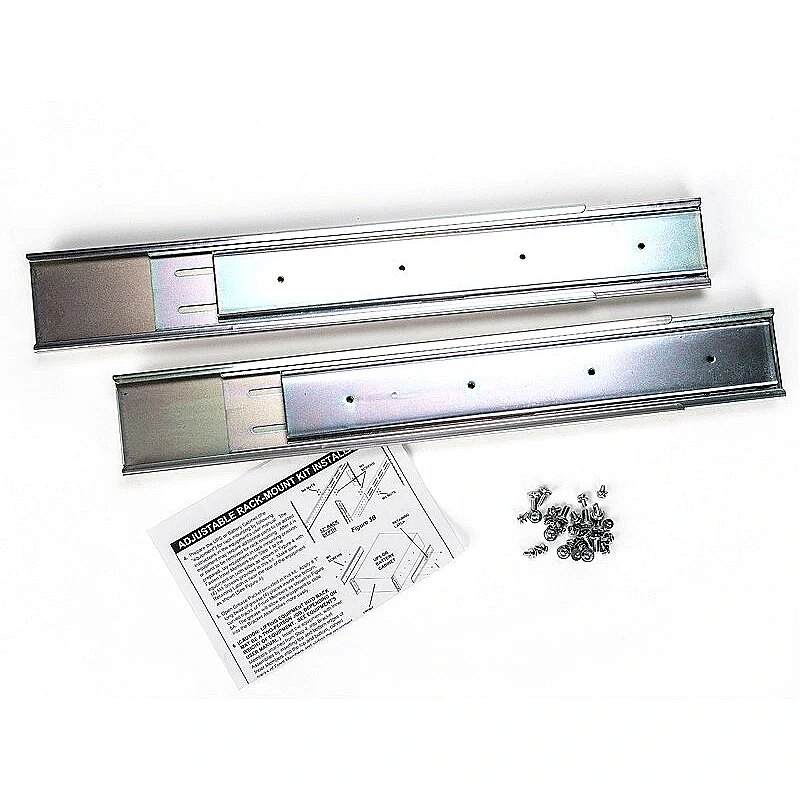

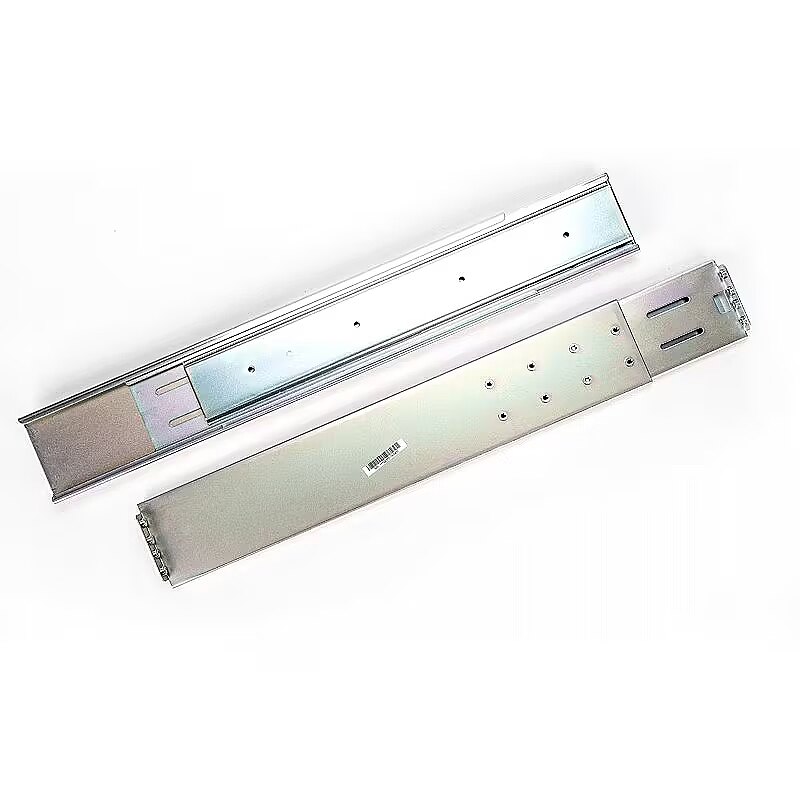

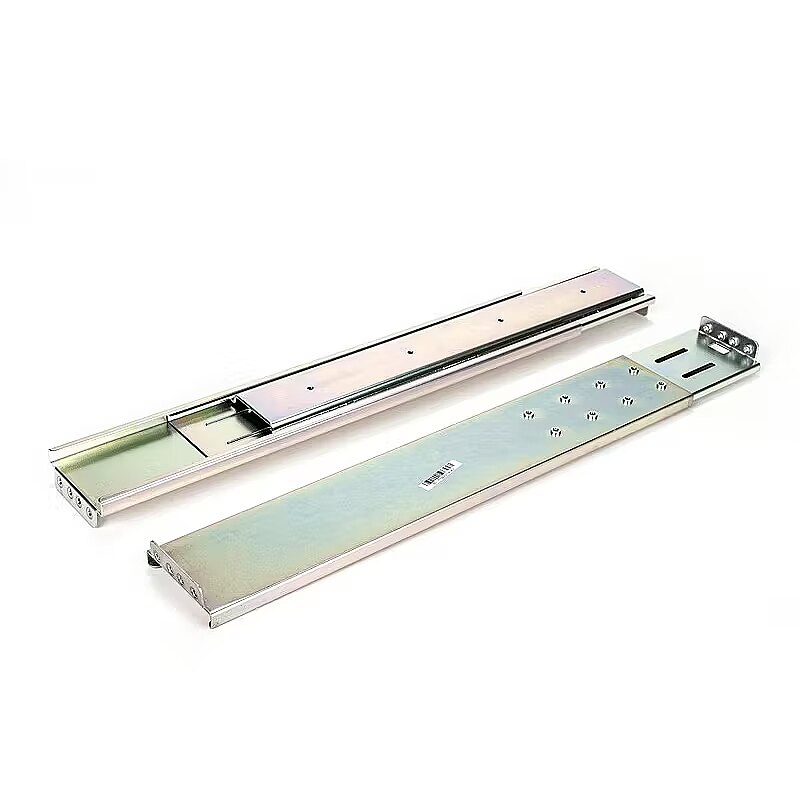

name - UPS GXT5-5000IRT5UXLN 5000VA/5000W 230V Rack/Tower with rails and communication card
Number of phases input - 1 (230V)
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 40 °C
Other features -
Other features - Battery type - VRLA
Other features - Output voltage - 230 V
Output power ports - 1 x Terminal
Output power ports - 2 x IEC-C19
Output power ports - 6 x IEC-C13
Packaging data - Package depth - 816 mm
Packaging data - Package height - 520 mm
Packaging data - Package weight - 89 kg
Packaging data - Package width - 646 mm
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler, IEC 320, Terminal
Ports & interfaces - Power plug - Terminal
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - Serial ports quantity - 1
Ports & interfaces - USB port - Yes
producer - Vertiv
ProductName - GXT5 UPS - 6000VA/6000W| 230V| Rack/Tower Mountable| Energy Star| Online Double Conversion| 5U| Color/Graphic LCD| 2-Year Warranty
Safety regulation & standards - Safety - IEC62040-1:2008
ShortSummaryDescription - Vertiv Liebert GXT5 UPS - 6000VA/6000W| 230V| Rack/Tower Mountable| Energy Star| Online Double Conversion| 5U| Color/Graphic LCD| 2-Year Warranty, Double-conversion (Online), 5 kVA, 5000 W, Pure sine, 176 V, 288 V
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 1
Storno - Y
The shape of the output voltage - Full sine wave
Title - Vertiv Liebert GXT5 UPS - 6000VA/6000W| 230V| Rack/Tower Mountable| Energy Star| Online Double Conversion| 5U| Color/Graphic LCD| 2-Year Warranty
UPS Architecture - on-line double conversion
URL - https://www.vertiv.com/en-emea/support/tools-applications/vertiv-ups-interactive-runtime-tools/liebert-gxt5-ups-750va-20kva-runtime-tool/liebert-gxt5-5000irt5uxle-runtime-tool/
vendpn - GXT5-5000IRT5UXLN
Voltage - 12 V
WarrantyInfo - 2 year
Weight - 70.8 kg
Weight & dimensions - Depth - 630 mm
Weight & dimensions - Height - 217 mm
Weight & dimensions - Weight - 70.8 kg
Weight & dimensions - Width - 430 mm
