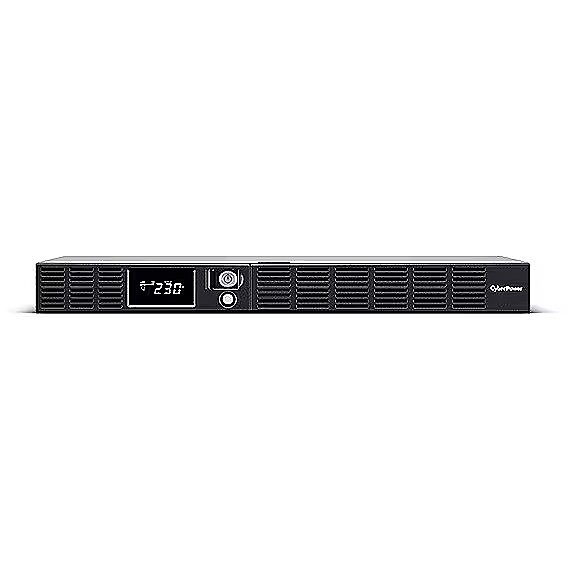

Cyber Power OR600ERM1U, 600VA 360W, IEC 1U

Accessories included - OR600ERM1U UPS Rack holders Power cord USB cable User manual
Active power - 360 W
Apparent power - 600 VA
Battery - Battery recharge time - 8 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Hot-swap battery - Yes
Battery - Number of batteries supported - 1
Battery - Typical backup time at full load - 4 min
Battery - Typical backup time at half load - 13 min
Battery > Battery recharge time - 8 (Typical) h
Battery > Typical backup time at full load - 4 min
Battery > Typical backup time at half load - 13 min
Brand - CyberPower
BrandPartCode - OR600ERM1U
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Certification - CE, EAC, RCM
Certificates - Compliance certificates - RoHS
Charging time - 8 h
Chassis type - Rack
Code - OR600ERM1U
Color - Silver
Description - UPS OR600ERM1U uninterruptible power supply CyberPower OR600ERM1U Line-Interactive UPS offers simulated sine wave output power for office equipment including PCs, workstations, network devices and peripherals. It is typically integrated into the back office and server room environment to provide reliable backup power in the event of a power outage. The UPS has a multi-function LCD display that displays real-time information including input and output voltage levels, load level, battery charge, battery runtime, overload warning and silent mode. Thanks to the network ports on the UPS, network devices are protected from sudden surges caused by lightning, thus avoiding potential damage to the system. When it comes to battery maintenance, the UPS offers the option of hot-swappable batteries, which allows users to perform normal battery maintenance without significant interruptions. UPS Line-interactive topology Simulated sinusoidal output voltage Overload protection Protection against interference and surges Telephone, fax, modem, DSL, network protection USB connectivity port SNMP/HTTP remote management (optional) Energy Saving Technology Automatic voltage regulation (AVR) Hot-swap batteries EMI and RFI filtering LCD status display PowerPanel management software
Design - Cable length - 1.83 m
Design - Display type - LCD
Design - Form factor - Rackmount
Design - Housing material - Metal
Design - LED indicators - Operation
Design - Product colour - Silver
Design - Rack capacity - 1U
Design > Form factor - Rack
Designation - CE+WEEE
dimension depth - 520 mm
dimension height - 150 mm
Dimensions - 433 x 44 x 235 mm
dimension weight - 10000 g
dimension width - 275 mm
EAN - 4712856274318
ean - 4712856274318
Environment requirements - Operating Temperature: 32 ~ 104 (°F) Operating temperature: 0 ~ 40 (°C) Relative operating humidity (non-condensing): 0 ~ 95 (%) Operating altitude: 0-10,000 feet (0-3000 meters) (feet/meters) Storage Temperature: 5 ~ 113 (°F) Storage temperature: -15 ~ 45 (°C) Relative storage humidity (non-condensing): 0 ~ 95 (%) Storage altitude (feet/meters): 0-50,000 feet (0-15,000 meters) Online heat dissipation: 20 (BTU/hr)
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Low battery alarm, Overload alarm
Features - Automatic Voltage Regulation (AVR) - Yes
Features - EMI/RFI noise filtering - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 271 V
Features - Input operation voltage (min) - 165 V
Features - Maximum current - 10 A
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 230 V
Features - Output operation voltage (min) - 230 V
Features - Output power - 360 W
Features - Output power capacity - 0.6 kVA
Features - Power factor - 0.6
Features - Power protection features - Overload
Features - Response time - 4 ms
Features - Surge energy rating - 405 J
Features - Surge protection - Yes
Features - Surge protection features - Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Filters / protection - Automatic Voltage Regulation (AVR)
Filters / protection - Overload
Filters / protection - Suppression
Filters / protection - Surge
GTIN - 4712856274318
guarantee - 24
guarantee_type - external
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x RJ-11/RJ-45
Input power ports - IEC-C14
Link - https://www.cyberpower.com/eu/en/product/sku/or600erm1u
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 8504408590
LongDesc - CyberPower OR600ERM1U Line-Interactive UPS offers Simulated Sine Wave output power for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment to ensure a reliable backup power supply during power failures. In addition, the rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment. The UPS has a multifunction LCD display which offers real-time information, including input and output voltage levels, load and battery levels, battery runtime, overload warning, and a silent mode. With the network ports on the UPS, it prevents network devices from being subjected to sudden power surges caused by lightning, thereby avoiding potential system damage. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.
LongProductName - 600 VA, 360 W, IEC C13 x 6, Line-interactive, Sine Wave, AVR, Hot-swap, 1U Rack, Silver
LongSummaryDescription - CyberPower OR600ERM1U. UPS topology: Line-Interactive, Output power capacity: 0.6 kVA, Output power: 360 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 4 min, Typical backup time at half load: 13 min. Form factor: Rackmount, Product colour: Silver, Housing material: Metal. Compliance certificates: RoHS, Certification: CE, EAC, RCM
Name - CyberPower | Smart App UPS Systems | OR600ERM1U | 600 VA | 360 W
name - UPS OR600ERM1U 600VA/360W/6xIEC/AVR/LCD
Number of phases input - 1 (230V)
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -
Other features > Dimensions (WxDxH) - 433 x 235 x 44 mm
Output power ports - 6 x IEC-C13
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 525.00 mm
Package features > Gross height (mm) - 155.00 mm
Package features > Gross width (mm) - 315.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 67 pc(s)
Package features > Paper/Pasteboard - 600 g
Package features > Plastic (No PET) - 40 g
Package features > Tare weight (kg) - 0.64 kg
Package features > TI weight (kg) - 20.00 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.03 m³
Package features > WEE classification - CL109:4:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - USB cable
Packaging data - Package depth - 315 mm
Packaging data - Package height - 155 mm
Packaging data - Package weight - 10.3 kg
Packaging data - Package width - 530 mm
Performance > Capacity - 600 VA
Performance > UPS topology - Line-Interactive
Ports & interfaces - AC outlets quantity - 6 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Modem (RJ-11) ports - 1
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - Serial ports quantity - 1
Ports & interfaces - USB port - Yes
producer - CyberPower
Producer product family - Smart App UPS Systems
Producer product name - OR600ERM1U
ProductName - OR600ERM1U
ShortSummaryDescription - CyberPower OR600ERM1U, Line-Interactive, 0.6 kVA, 360 W, Sine, 165 V, 271 V
Software - PowerPanel Business
Special functions -
Technical details > Capacity - 360 W
Technical details > Gross weight - 8.64 kg
Technical details > Net weight - 8.00 kg
Technical details > Other features - Line-interactive UPS Topology; Simulated Sine Wave Output; Overload Protection; Surge and Spike Protection; Phone/Fax/Modem/DSL/Network Protection; USB Connectivity Port; SNMP/HTTP Remote Management Capability (Optional); Energy Saving Technology; Automatic Voltage Regulation (AVR); Hot-swappable Batteries; EMI and RFI Filtration; LCD Status Display; PowerPanel Management Software
Technical details > Producer - CyberPower
The shape of the output voltage - Modified sine wave
Title - CyberPower OR600ERM1U uninterruptible power supply (UPS) Line-Interactive 0.6 kVA 360 W 6 AC outlet(s)
Transfer time (max) - 4 ms
UPS Architecture - line-interactive
URL - https://www.cyberpower.com/eu/en/product/sku/or600erm1u
vendpn - OR600ERM1U
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight - 7.8 kg
Weight & dimensions - Depth - 235 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 7.8 kg
Weight & dimensions - Width - 433 mm
