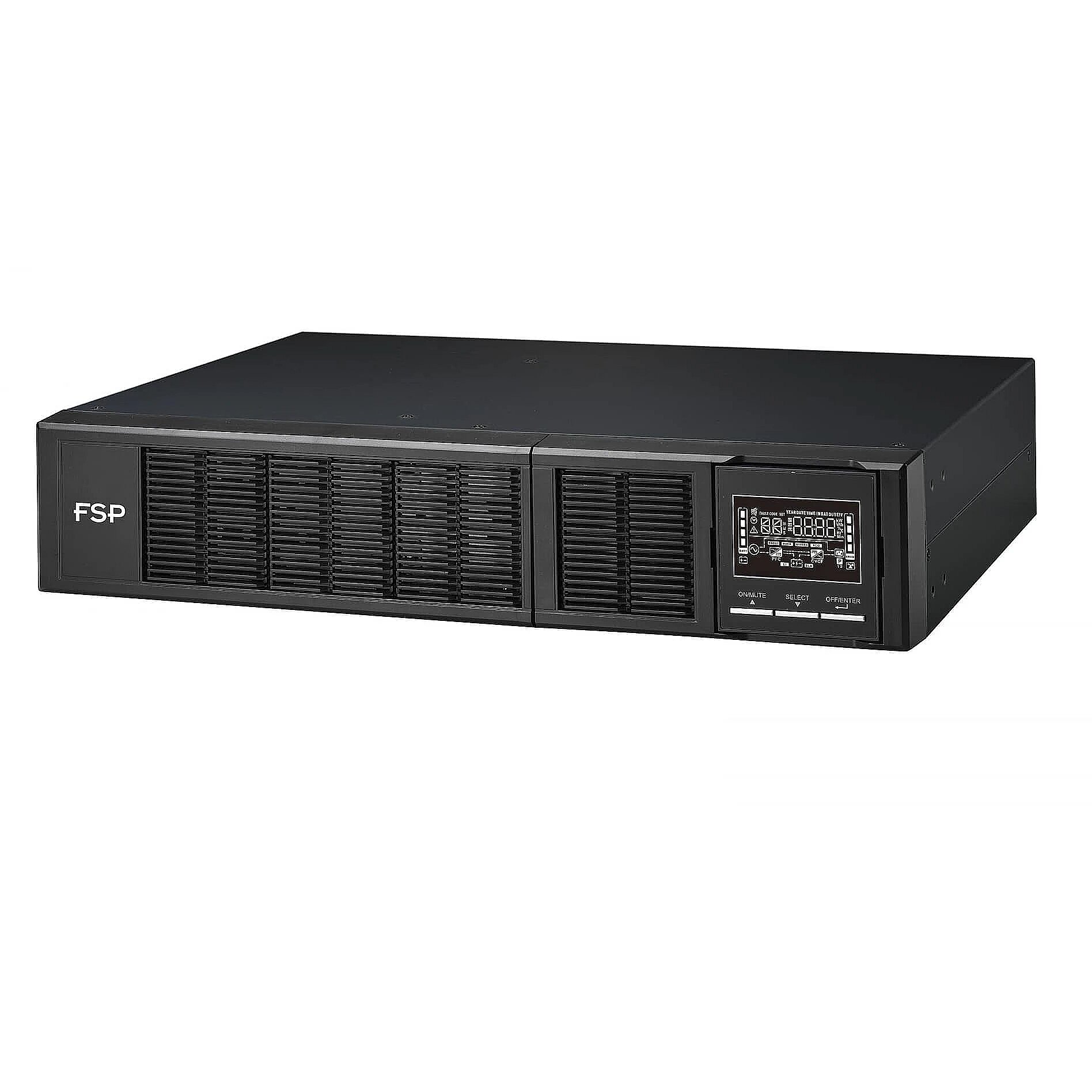

FSP Clippers RT 1K, 1000VA 1000W, IEC 2U

Battery - Battery capacity - 9 Ah
Battery - Battery recharge time - 3 h
Battery - Battery voltage - 12 V
Battery - Hot-swap battery - Yes
Battery - Number of battery cells - 2
Battery - Typical backup time at full load - 33 min
Brand - FSP
BrandPartCode - PPF10A0400
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certificates - Certification - EMC EN62040-2 C2
Certificates - Compliance certificates - CE
Description - FSP CLIPPERS RT 1K 1000VA,1000W,230V,IEC*8PCS, 12/9AH*2PCS,BLACK
Design - Built-in fan - Yes
Design - Control type - Buttons
Design - Cooling type - Active
Design - Display type - LCD

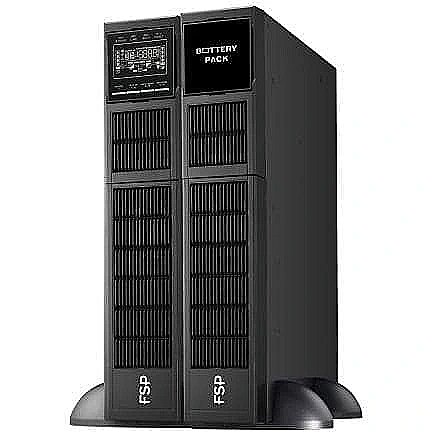

Design - Form factor - Rackmount/Tower
Design - Product colour - Black
EAN - 4713224524882
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Fault, Low battery alarm, Overload alarm
Features - Crest factor - 3:1
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 40/70 Hz
Features - Input operation voltage (max) - 300 V
Features - Input operation voltage (min) - 110 V
Features - Noise level - 50 dB
Features - Number of input phases - 1
Features - Output frequency - 46/64 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 208 V
Features - Output power - 1000 W
Features - Output power capacity - 1 kVA
Features - Output voltage regulation - 1%
Features - Power factor - 0.99
Features - Response time - 4 ms
Features - Surge protection - Yes
Features - Total Harmonic Distortion (THD) (linear load) - 2%
Features - Total Harmonic Distortion (THD) (non-linear load) - 4%
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Form factor - Rack
GTIN - 4713224524882
Height - 190.000000
Length - 570.000000
Logistics data - Harmonized System (HS) code - 85078000

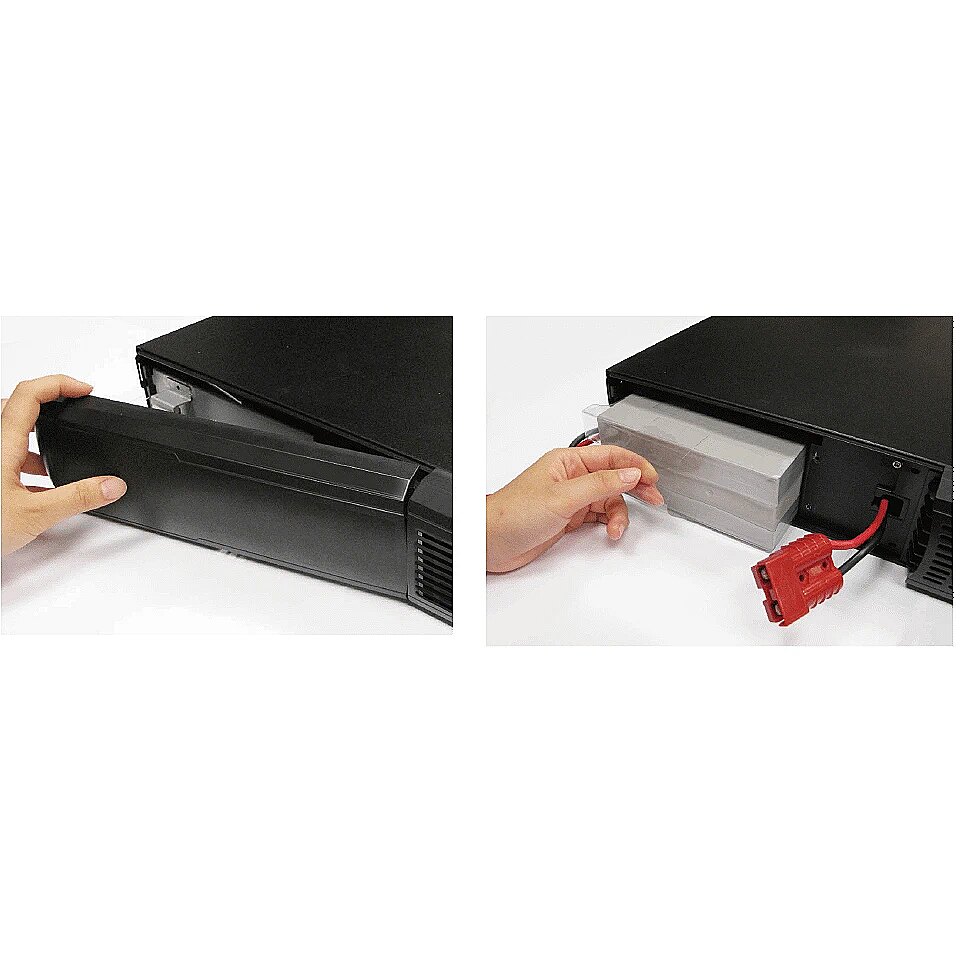

LongDesc - FSP Clippers RT Series Clippers series is a premium featured online double conversion UPS with Rack/Tower design and high efficiency to reduce customer‘s total cost of ownership. The internal hot-swappable battery increases system reliability and reduces MTTR; the parallel function is designed for future equipment expansion. Its special firmware design can adapt to various applications like laser printers and ultrasound devices and supports long backup time with battery monitoring.
LongProductName - 2U, 1000 VA, 1000 W, 220 - 240 V, 3:1, 438 x 410 x 88 mm, 11.6 kg
LongSummaryDescription - FSP Clippers RT 1K. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 1000 W. AC outlet types: C13 coupler, USB port type: USB Type-B, Serial interface type: RS-232. Battery capacity: 9 Ah, Battery voltage: 12 V, Typical backup time at full load: 33 min. Form factor: Rackmount/Tower, Product colour: Black, Cooling type: Active. Compliance certificates: CE, Certification: EMC EN62040-2 C2
Manufacturer - FSP
ManufacturerPartNumber - PPF10A0400
MPN - PPF10A0400
Name - FSP Clippers RT 1K Rack/Tower Online UPS 1000VA 1000W 2x12V/9Ah Batterie
Operational conditions - Operating relative humidity (H-H) - 20 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Packaging content - UPS, user manual, software CD, C14-C13 cable, USB cable, tower stands, mounting ears & screws
Output power, W - 1000
Output power capacity (VA) - 1000
PeriodofWarranty - 2 Y

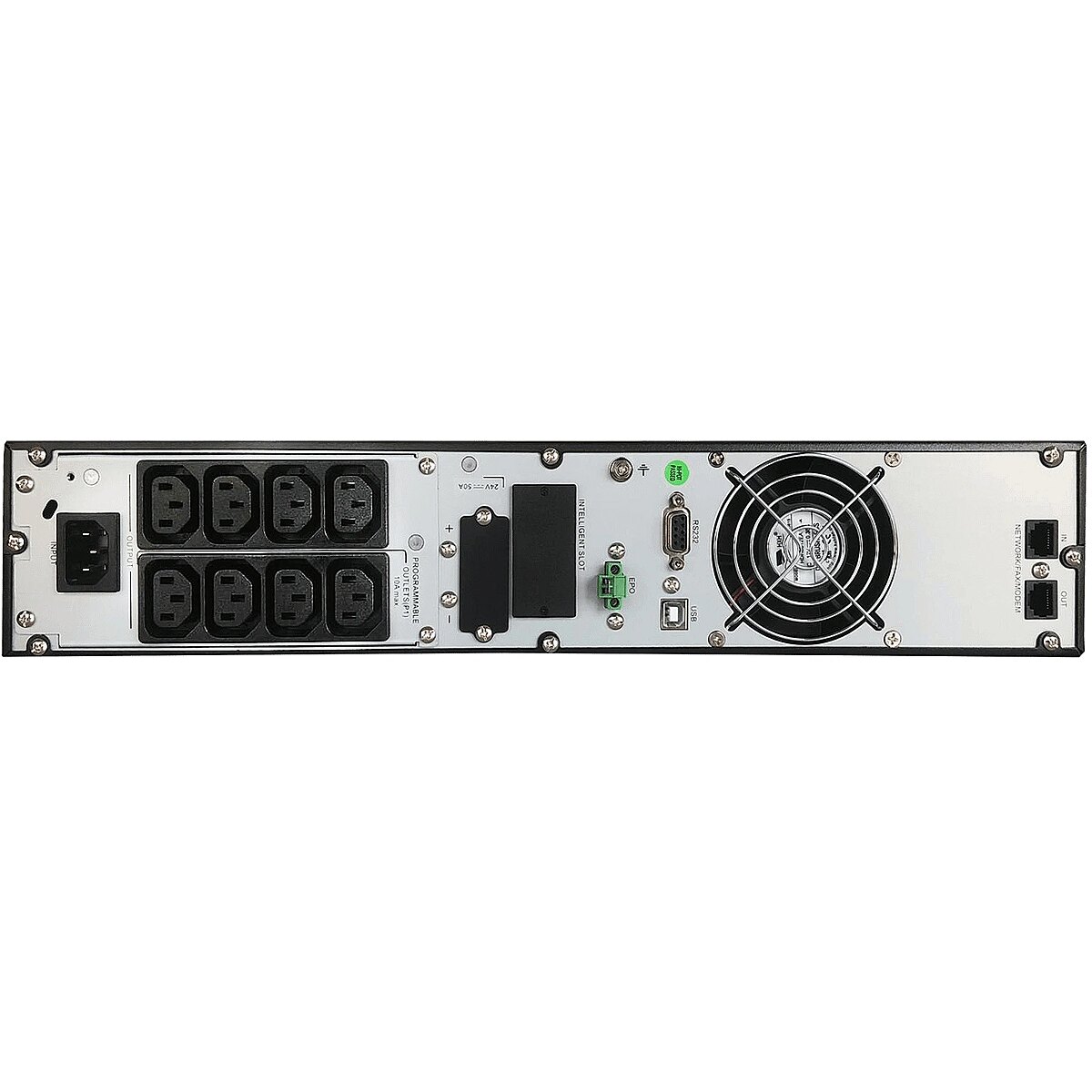

Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Emergency Power Off (EPO) connector - Yes
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-B
ProductName - Clippers RT 1K
ShortSummaryDescription - FSP Clippers RT 1K, Double-conversion (Online), 1 kVA, 1000 W, Sine, 110 V, 300 V
Sustainability - Sustainability compliance - Yes
Title - FSP Clippers RT 1K uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 1000 W
UPS devices and accessories - Yes
URL - https://energy.fsp-europe.com/product/clippers-1k/
WarrantyInfo -
Weight - 15.88
Weight - 15.980000
Weight & dimensions - Depth - 410 mm
Weight & dimensions - Height - 88 mm
Weight & dimensions - Weight - 11.6 kg
Weight & dimensions - Width - 438 mm
Width - 505.000000
