Brand - Lindy
BrandPartCode - 42817
Cable length - 5m
Category - USB Cables
Category Code - UCB
Colour - Black
Connectors - USB Type A Male/USB Type A Female

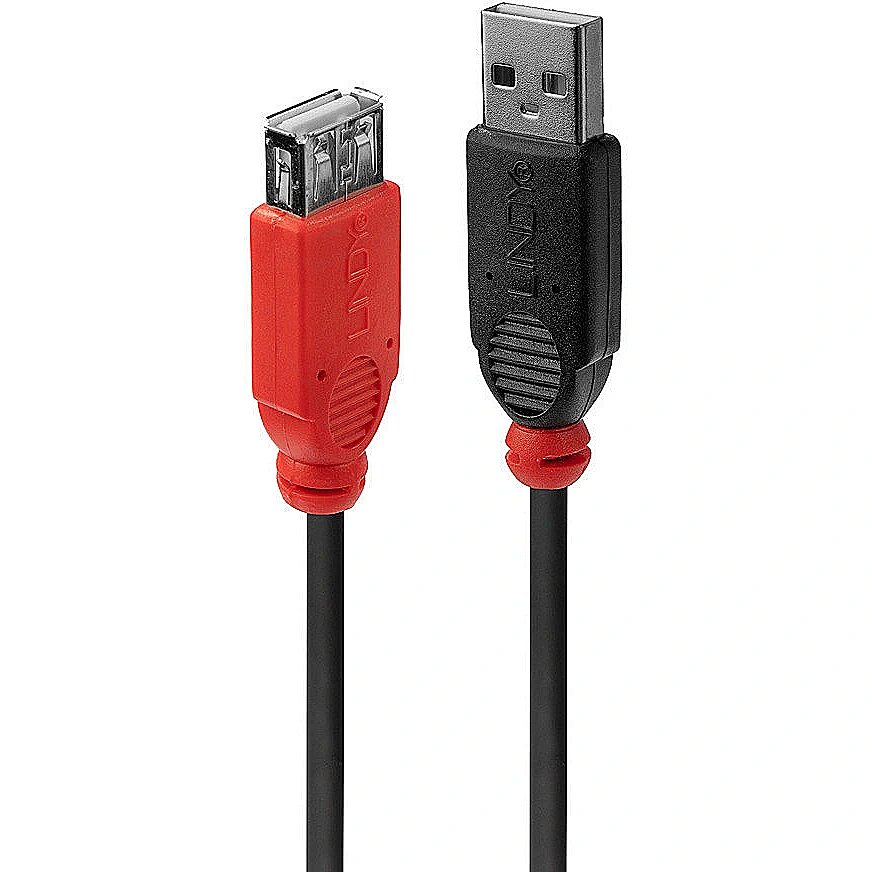

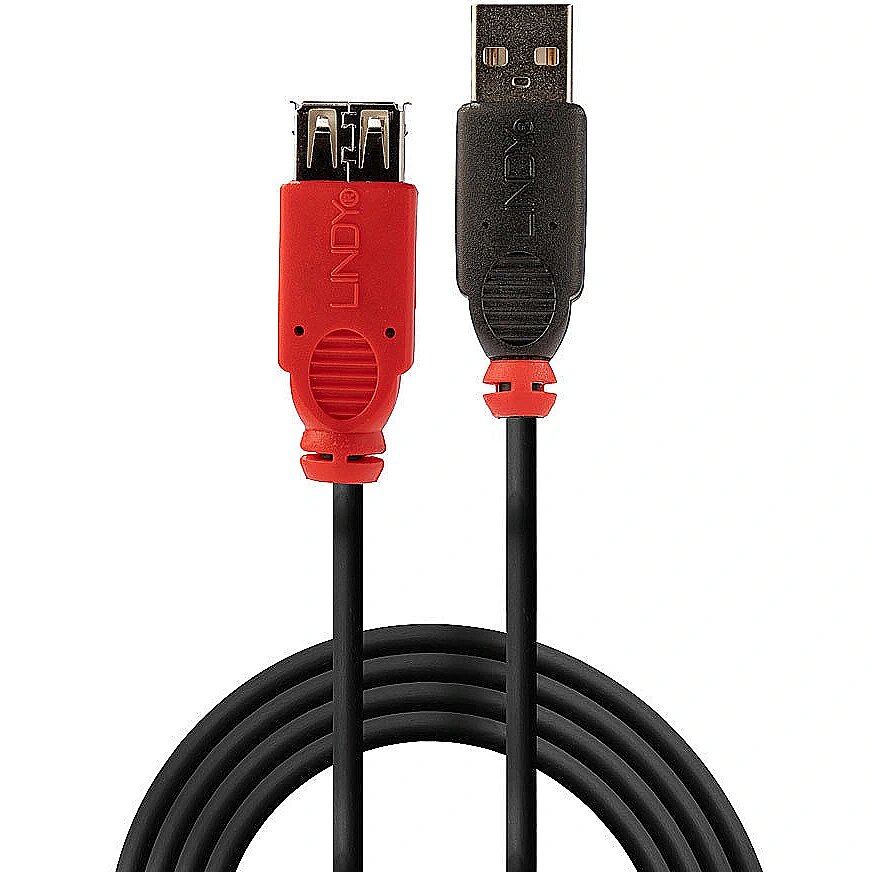

Description - 5m USB 2.0 Active Extension Slim 5m USB 2.0 Extension of a USB Type A port of your computer The Lindy USB 2.0 Active Extension Cable Slim uses built-in active electronics to extend the cable length of a USB 2.0 device by an additional 5m whilst continuing to support data transfer rates of up to 480Mbps. With its USB A male and USB A female connector it allows Type A devices to be connected at longer distances and ensures flexible positioning. Up to 5 extension cables can be chained together to achieve a distance of 25m. The cable's unique and slim design allows the active electronics to fit into a standard USB connector - an advantage over other active USB leads which use bulky connectors. Compatible with all USB Type A equipped computers.
Features - AWG wire size - 24/28
Features - Cable jacket material - Polyvinyl chloride (PVC)
Features - Cable type - Round cable
Features - Certification - CE, UKCA, FCC, RoHS & REACH
Features - Conductor material - Tinned copper
Features - Connector 1 - USB A
Features - Connector 1 form factor - Straight
Features - Connector 1 gender - Male
Features - Connector 2 - USB A
Features - Connector 2 form factor - Straight
Features - Connector 2 gender - Female
Features - Connector contacts plating - Gold
Features - Connector housing material - Plastic
Features - Connector material - Nickel
Features - Connector shielding - Yes
Features - Connector shield material - Aluminium
Features - Contact material - Brass
Features - Maximum data transfer rate - 0.48 Gbit/s
Features - Maximum data transfer rate - 480 Mbit/s
Features - Nominal attenuation - 24AWG: 93.25Ohm/km
28AWG: 237.25Ohm/km
Features - Plug and Play - Yes
Features - Product colour - Black
Features - Transmission medium - Twisted pair
Features - USB version - USB 2.0
Full Description Line - Connectors USB Type A Male/USB Type A Female|Colour Black
GTIN - 0066510860442
GTIN - 066510860442
GTIN - 4002888428170
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - The Lindy USB 2.0 Active Extension Cable Slim uses built-in active electronics to extend the cable length of a USB 2.0 device by an additional 5m whilst continuing to support data transfer rates of up to 480Mbps.With its USB A male and USB A female connector it allows Type A devices to be connected at longer distances and ensures flexible positioning. Up to 5 extension cables can be chained together to achieve a distance of 25m.The cable's unique and slim design allows the active electronics to fit into a standard USB connector - an advantage over other active USB leads which use bulky connectors. Compatible with all USB Type A equipped computers.
LongProductName - 5m USB 2.0 Active Extension Slim
LongSummaryDescription - Lindy 5m USB 2.0 Active Extension Slim. Cable length: 5 m. Connector 1: USB A, Connector 2: USB A, USB version: USB 2.0, Maximum data transfer rate: 0.48 Gbit/s, Connector contacts plating: Gold, Product colour: Black
Model - 42817
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -10 - 80 °C
Packaging content - Quantity per pack - 1 pc(s)
Packaging data - Package depth - 146 mm
Packaging data - Package height - 38 mm
Packaging data - Package type - Blister
Packaging data - Package weight - 200 g
Packaging data - Package width - 214 mm
ProductName - 5m USB 2.0 Active Extension Slim
Product Type - Cable
Shipping Box Depth Shipping/Package Box Dimensions - 26 cm
Shipping Box Height Shipping/Package Box Dimensions - 2 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.19 kg
Shipping Box Width Shipping/Package Box Dimensions - 23 cm
ShortSummaryDescription - Lindy 5m USB 2.0 Active Extension Slim, 5 m, USB A, USB A, USB 2.0, 0.48 Gbit/s, Black
Title - Lindy 5m USB 2.0 Active Extension Slim
Unit Box Height - 0.02
Unit Box Length - 0.26
Unit Box Width - 0.23
Unit Brutto Volume - 0.001196 cubm
Unit Gross Weight - 0.19 kg
Unit Net Weight - 0.18 kg
URL - https://www.lindy.co.uk/usb-c4/5m-usb-2-0-active-extension-slim-p493
USB/Lightning cable type - USB to USB
Vendor Homepage - www.lindy-international.com/5m-USB-2-0-Active-Extension-Slim-.htm?websale8=ld0101.ld021102&pi=42817
Warranty - 24 months
WarrantyInfo -
Weight & dimensions - Bend radius (min) - 4.8 cm
Weight & dimensions - Cable diameter - 4.8 mm
Weight & dimensions - Cable length - 5 m
Weight & dimensions - Connector 1 dimensions (WxDxH) - 15 x 40 x 6 mm
Weight & dimensions - Connector 2 dimensions (WxDxH) - 15 x 45 x 8 mm
Weight & dimensions - Weight - 180 g
