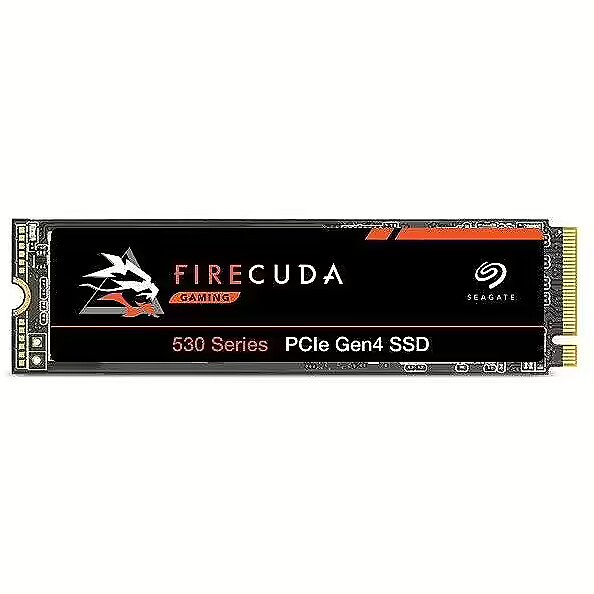

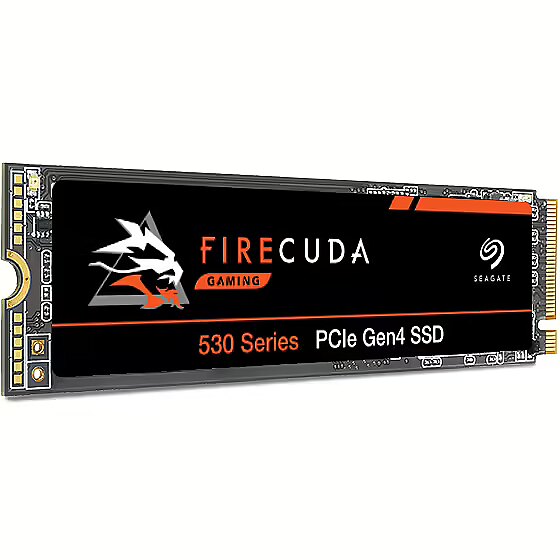

Seagate FireCuda 530, 2TB, M.2 Gen4 x4

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 733497 Product code: ZP2000GM3A013
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Capacity: 2 TB
  • Type: NVMe
  • Read speed (sequential): 7300 MB/s
  • Write speed (sequential): 6900 MB/s
  • Form factor: M.2 80mm (2280)
  • Interface: PCIe 4.0 x4
Similar Products
This product Seagate FireCuda 530, 2TB, M.2 Gen4 x4
Recommended Samsung 990 PRO, 2TB, M.2 Gen4 x4
Recommended ADATA Legend 900, 2TB, M.2 Gen4 x4
Recommended Kingston NV3, 2TB, M.2 Gen4 x4
Recommended Samsung 990 PRO, 1TB, M.2 Gen4 x4
Show similar specs. Hide similar specs.
161.47 €
181.22 €
123.87 €
127.92 €
108.36 €
Basic information
Capacity 2 TB 2 TB 2 TB 2 TB 1 TB
Type NVMe NVMe NVMe NVMe NVMe
Read speed (sequential) 7300 MB/s 7450 MB/s 7000 MB/s 6000 MB/s 7450 MB/s
Write speed (sequential) 6900 MB/s 6900 MB/s 5400 Mb/s 5000 MB/s 6900 MB/s
Functionality
Radiators Nav Nav Ir Nav Nav
Lighting Nav Nav Nav Nav Nav
Ports and equipment
Form factor M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280)
Interface PCIe 4.0 x4 PCIe 4.0 x4 PCIe 4.0 x4 PCIe 4.0 x4 PCIe 4.0 x4
Interface M.2 M.2 M.2 M.2 M.2
Specifikācija
Memory type TLC (Triple-Level Cell) TLC (Triple-Level Cell) TLC (Triple-Level Cell) TLC (Triple-Level Cell) TLC (Triple-Level Cell)
Random Read IOPS 1m 1.4M Not indicated Not indicated 1.2m
Random Write IOPS 1m 1.55M Not indicated Not indicated 1.55M
Endurance (TBW) 2550 TB 1200 TB 1200 TB 640 TB 600 TB
Description

Available for purchase, the Seagate M.2 80mm (2280) format SSD disk with a large volume of 2 TB.

This disc uses the latest generation compact M.2 port.

This is an NVME type SSD drive. It uses the PCI-e protocol, which allows data to be transmitted over multiple lines at the same time. This type of drive is ideal for processing large files, gaming, video editing, and other resource-intensive tasks.

7300 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.

The write speed (Sequential write speed) of this SSD is 6900 MB/s. However, if adequate cooling is not provided, "fast" drives may not achieve the speeds guaranteed by the manufacturer.

The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).

The SSD drive has a PCIe 4.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.

Basic information
Capacity 2 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : NVMe
Read speed (sequential) 7300 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 6900 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 4.0 x4
Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : TLC (Triple-Level Cell)
Random Read IOPS : 1m
Random Write IOPS : 1m
Endurance (TBW) : 2550 TB
More detailed specification
Additional information in manufacturers website Seagate FireCuda 530, 2TB, M.2 Gen4 x4
Brand - Seagate
BrandPartCode - ZP2000GM3A013
Category - Internal Solid State Drives
Category - Root/Electronics/PC parts/Hard drives
Eans - 8719706420433
Features - Component for - PC
Features - Controller type - Phison E18
Features - Interface - PCI Express 4.0
Features - Linux operating systems supported - Yes
Features - M.2 SSD size - 2280 (22 x 80 mm)
Features - Mean time between failures (MTBF) - 1800000 h
Features - Memory type - 3D TLC
Features - NVMe - Yes
Features - NVMe version - 1.4
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 1000000 IOPS
Features - Random write (4KB) - 1000000 IOPS
Features - Read speed - 7300 MB/s
Features - S.M.A.R.T. support - Yes
Features - SSD capacity - 2 TB
Features - SSD form factor - M.2
Features - TBW rating - 2550
Features - TRIM support - Yes
Features - Windows operating systems supported - Windows 10
Features - Write speed - 6900 MB/s
GTIN - 0763649161760
GTIN - 763649161760
GTIN - 8719706420433
Logistics data - Harmonized System (HS) code - 84717070
LongDesc - Performance nothing short of exhilarating, the FireCuda® 530 redefines speed — up to 7,300 MB/s catalyses PCIe® Gen4 power. With transfer rates 2x faster than PCIe Gen3 and 12x faster than SATA SSDs, this SSD is built for sustained abuse and accelerated gaming.Speed Reigns — The Fastest FireCuda EverFireCuda 530 dominates the SSD lineup, delivering:- Blistering transfer speeds of up to 7,300 MB/s.- Absolute power to make content creations apps run faster and smoother.- Lightning-fast video rendering and exporting.- Responsive performance built for accelerated gaming and sustained abuse — record, download, rewrite, repeat.Absolute PerformanceUp to 2x faster than PCIe Gen3 NVMe™ SSDs and up to 12x faster than SATA SSDs — the FireCuda 530 redefines speed.Cool Speed AheadNVMe PCIe Gen4 extreme speeds generate extra heat. That’s why Seagate partnered with EKWB — the leaders in heat management — to develop FireCuda 530’s custom heatsink. Built from a high-grade aluminium block with a finely textured anodized finish to help maximise cooling efficiency, this built-in heatsink helps minimise thermal throttling while maximising peak performance for longer periods of time.Form and FunctionLow-profile heatsink design allows for installation in tighter spaces, and premium dark gunmetal grey anodization creates additional micropores in the material surface to promote cooling properties.Endurance UnleashedDesigned to perform under heavy use and tough enough to go the distance with:- 0.7 Drive Writes per Day — fill and delete 70% of the drive capacity, every day, for five years.- 1.8 Million Hours Mean Time Between Failures for trusted reliability.- Up to 5,100 TB Total Terabytes Written — durability delivered.Latest TechPush your rig to its limit — the FireCuda 530 is built with a Seagate-validated E18 controller and the latest 3D TLC NAND for the most advanced speed and durability.
LongProductName - FireCuda 530 2TB, M.2, PCIe Gen4 ×4 NVMe 1.4, 3D TLC
LongSummaryDescription - Seagate FireCuda 530. SSD capacity: 2 TB, SSD form factor: M.2, Read speed: 7300 MB/s, Write speed: 6900 MB/s, Component for: PC
Name - Seagate Firecuda 530 M.2 PCIe NVMe 2TB
Operational conditions - Non-operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - 40 - 85 °C
Other features - Compliance certificates - RoHS
Power - Power consumption (average) - 8 W
Power - Power consumption (idle) - 0.024 W
Producer - Seagate
ProducerCode - ZP2000GM3A013
ProductName - 530
ShortDescription - SSD | 2TB | 7300/6900 MB/s | M.2 | PCIe 4.0 | NVMe
ShortSummaryDescription - Seagate FireCuda 530, 2 TB, M.2, 7300 MB/s
Technical details - Doesn't contain - Halogen
Title - Seagate FireCuda 530 2 TB M.2 PCI Express 4.0 NVMe 3D TLC
URL - https://www.seagate.com/gb/en/products/gaming-drives/pc-gaming/firecuda-530-ssd/
WarrantyInfo -
Weight & dimensions - Depth - 80.2 mm
Weight & dimensions - Height - 3.58 mm
Weight & dimensions - Weight - 10 g
Weight & dimensions - Width - 22.1 mm
